![maserati qtp v8 (1998) intake manifold and injection system parts diagram](/img/CxIAAMTaOW5_Llk2w65L35cUQRmiUWiQ63qaK75fsKDqhCMxN9rYYQAD/maserati-qtp-v8-(1998)-part-diagram-013.1.webp)

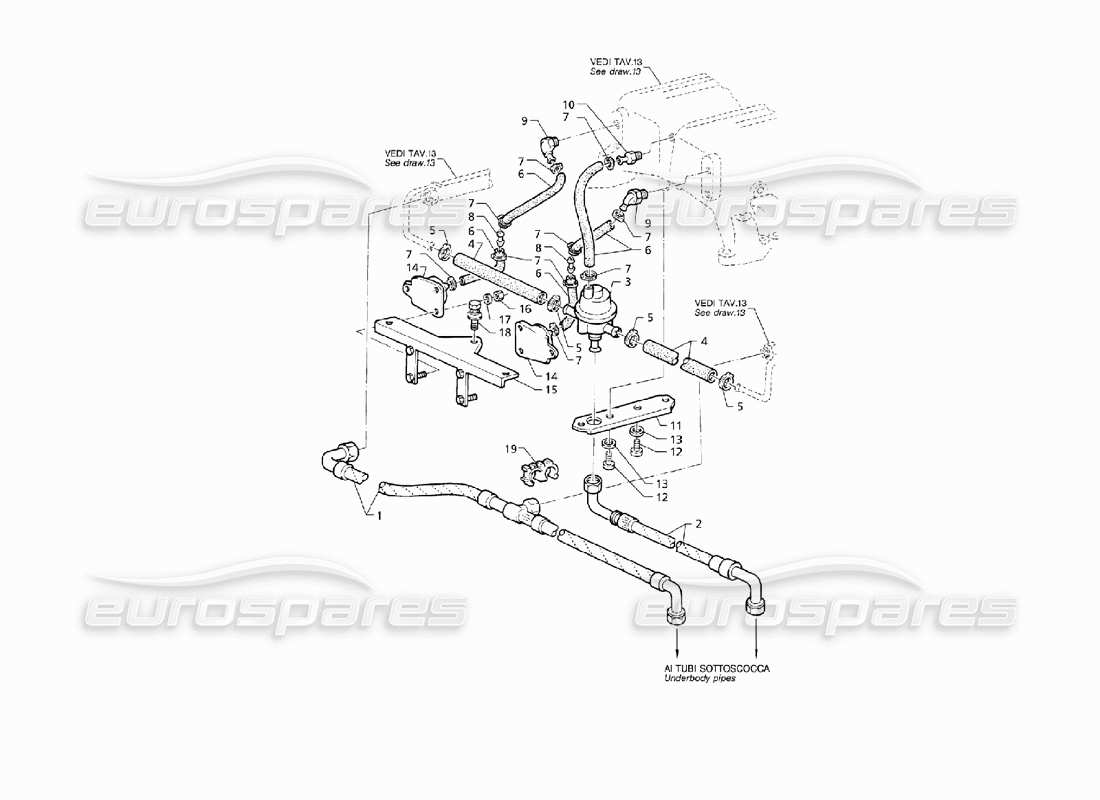

013.1 - Intake Manifold and Injection System
Maserati QTP V8 (1998) Intake Manifold and Injection System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 578064203
PETROL DELIVERY TUBE
from £122.44
from £122.44
This part replaces part number 578064202 - and 1 more. Click to view details
# 002
MPN: 578066900
PETROL RETURN TUBE
from £71.13
from £71.13
This part replaces part number 379230135 - and 1 more. Click to view details
# 003
MPN: 475073601
PETROL PRESSURE REGULATOR (3 BAR)
from £91.86
from £91.86
# 004
MPN: 97892
SLEEVE
- Section in metres - order minimum amount of 1 m or multiples of 1 m
from £66.15
from £66.15
This part replaces part number 19058189 - and 1 more. Click to view details
# 005
MPN: 30921108
CLAMP
# 006
MPN: 300100803
SLEEVE
- Section in metres - order minimum amount of 2 m
from £55.42
from £55.42
This part replaces part number 318720329
# 007
MPN: 312050310
CLAMP
from £1.09
from £1.09
# 008
MPN: 313620303
UNION
from £0.79
from £0.79
# 009
MPN: 585064500
UNION
from £63.87
from £63.87
This part replaces part number 578064500
# 010
MPN: 95517
UNION
Supersession
Supersession
# 011
MPN: 479005000
PRESSURE REGULATOR SUPPORT
from £3.67
from £3.67
# 012
MPN: 108006012
ALLEN SCREW
from £0.54
from £0.54
# 013
MPN: 312220411
WASHER
from £0.47
from £0.47
# 014
MPN: 313720118
ABSOLUTE PRESSURE SENSOR
Supersession
Supersession
# 015
MPN: 373230103
A.P. SENSORS SUPPORT
from £5.57
from £5.57
# 016
MPN: 128350060
STOP NUT
# 017
MPN: 135900064
WASHER
from £0.47
from £0.47
# 018
MPN: 11730624
BOLT ASSY SEC. SUPPORT
from £0.47
from £0.47
# 019
MPN: 377430342
PIPE SECURING BLOCK
from £0.70
from £0.70
