015.1 - Heat Exchanger - Pipes - RH Side

Maserati QTP V8 (1998) Heat Exchanger - Pipes - R.H. Side Parts Diagram

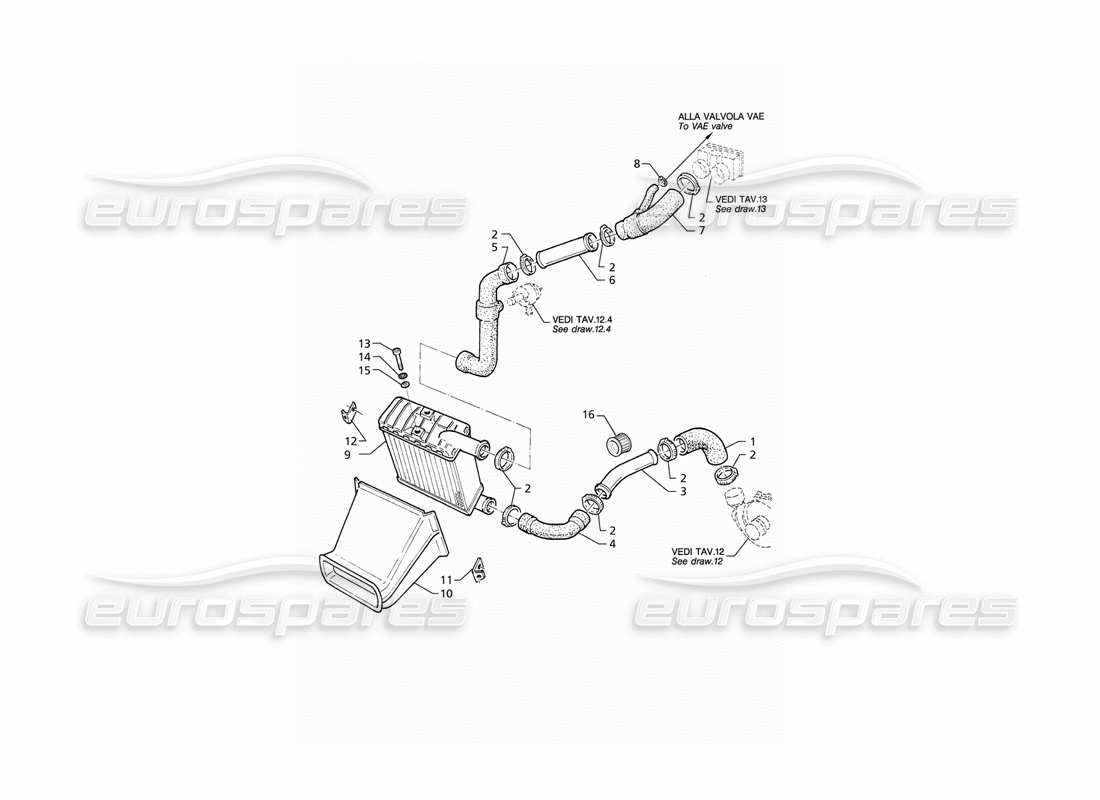

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                  #
                                  Part number
                                  Description
                                  Price
                                  # 002
                                  MPN: 312420106
                                  CLAMP
                                  Supersession
                                  Supersession
                                  # 003
                                  MPN: 372030476
                                  METAL PIPE
                                  from £18.38
                                  from £18.38
                                  # 004
                                  MPN: 573363500
                                  SLEEVE
                                  from £206.22
                                  from £206.22
                                  # 005
                                  MPN: 372030480
                                  RUBBER HOSE
                                  from £86.07
                                  from £86.07
                                  # 007
                                  MPN: 372030468
                                  THROTTLE BODY CONNECTING SLEEVE
                                  from £52.34
                                  from £52.34
                                  # 008
                                  MPN: 186402024
                                  CLAMP
                                  Supersession
                                  Supersession
                                  # 009
                                  MPN: 573360500
                                  HEAT EXCHANGER
                                  from £126.00
                                  from £126.00
                                  # 010
                                  MPN: 372000258
                                  AIR DUCT
                                  from £59.20
                                  from £59.20
                                  # 011
                                  MPN: 372000610
                                  PLATE
                                  from £1.62
                                  from £1.62
                                  # 012
                                  MPN: 372000612
                                  PLATE
                                  from £1.77
                                  from £1.77
                                  # 016
                                  MPN: 573365700
                                  SLEEVE
                                  from £2.95
                                  from £2.95
