016GD - Ignition System (RHD)

Maserati QTP V8 (1998) Ignition System (RHD) Parts Diagram

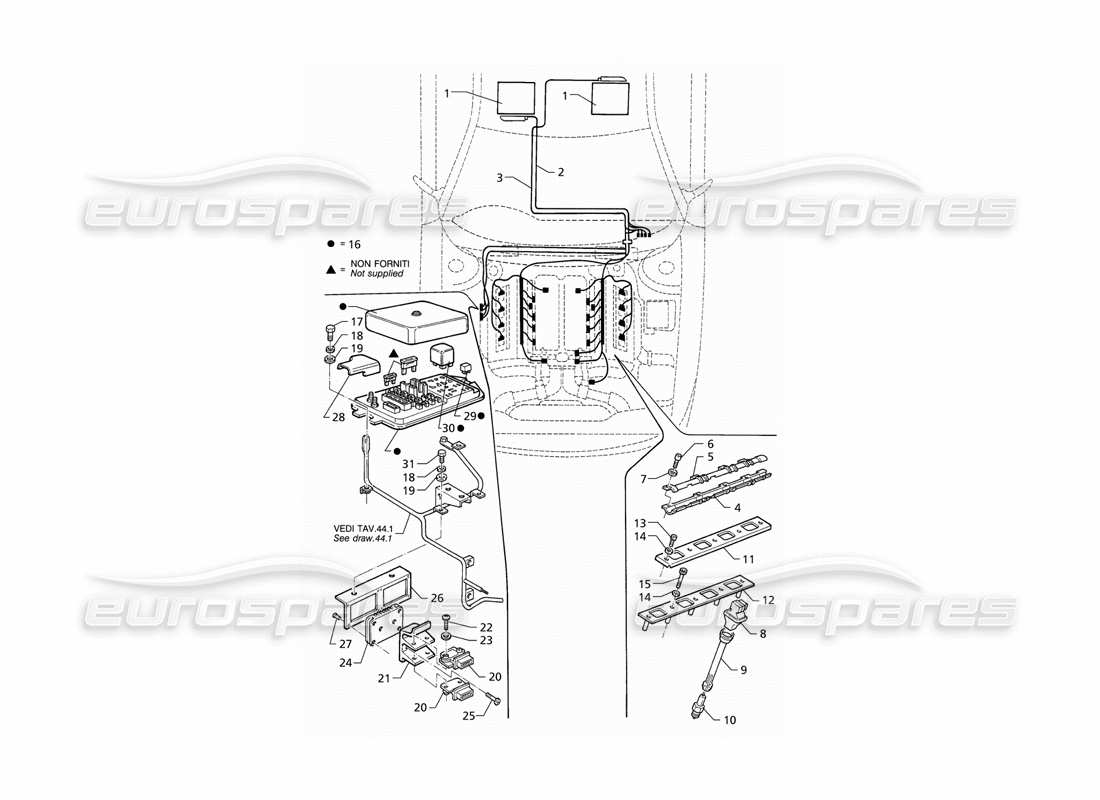

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                              #
                                                              Part number
                                                              Description
                                                              Price
                                                              # 001
                                                              MPN: 578079500
                                                              CONTROL UNIT
                                                              - Valid for M.T. version
                                                              from £892.50
                                                              from £892.50
                                                              # 001
                                                              MPN: 578079510
                                                              CONTROL UNIT
                                                              - Valid for A.T. version
                                                              from £887.91
                                                              from £887.91
                                                              # 002
                                                              MPN: 373740106
                                                              RH INJECTION WIRING
                                                              from £142.42
                                                              from £142.42
                                                              # 003
                                                              MPN: 373740105
                                                              LH INJECTION WIRING
                                                              from £149.85
                                                              from £149.85
                                                              # 007
                                                              MPN: 135900064
                                                              WASHER
                                                              from £0.47
                                                              from £0.47
                                                              # 008
                                                              MPN: 571084200
                                                              IGNITION COIL
                                                              from £134.00
                                                              from £134.00
                                                              This part replaces part number 571084201
                                                              # 009
                                                              MPN: 571085101
                                                              EXTENSION
                                                              from £69.95
                                                              from £69.95
                                                              # 010
                                                              MPN: 313253225
                                                              SPARK PLUG
                                                              from £6.40
                                                              from £6.40
                                                              This part replaces part number 97143
                                                              # 011
                                                              MPN: 578982000
                                                              TOP COILS SUPPORT
                                                              from £15.90
                                                              from £15.90
                                                              # 012
                                                              MPN: 578982700
                                                              BOTTOM COILS SUPPORT
                                                              from £26.25
                                                              from £26.25
                                                              # 013
                                                              MPN: 108006012
                                                              ALLEN SCREW
                                                              from £0.54
                                                              from £0.54
                                                              # 014
                                                              MPN: 84157
                                                              SPRING WASHER
                                                              Supersession
                                                              Supersession
                                                              # 016
                                                              MPN: 373330178
                                                              CONTROL UNIT
                                                              from £292.95
                                                              from £292.95
                                                              # 021
                                                              MPN: 393250303
                                                              MODULES SUPPORT
                                                              from £5.99
                                                              from £5.99
                                                              # 022
                                                              MPN: 112804020
                                                              SCREW
                                                              # 024
                                                              MPN: 393250302
                                                              HEAT SINK
                                                              from £12.61
                                                              from £12.61
                                                              This part replaces part number 393250106
                                                              # 025
                                                              MPN: 119148220
                                                              SELF-THREADING SCREW
                                                              from £1.07
                                                              from £1.07
                                                              # 026
                                                              MPN: 373230119
                                                              SUPPORT
                                                              from £3.72
                                                              from £3.72
                                                              # 027
                                                              MPN: 164354090
                                                              RIVET
                                                              # 028
                                                              MPN: 373330308
                                                              GNDING POINTS COVER
                                                              from £1.54
                                                              from £1.54
                                                              # 029
                                                              MPN: 373330139
                                                              20A MICRORELAY
                                                              from £4.02
                                                              from £4.02
                                                              # 030
                                                              MPN: 373330188
                                                              50A RELAY
                                                              Supersession
                                                              Supersession
