maserati qtp v8 (1998) ignition system: sensors parts diagram

016.1 - Ignition System: Sensors

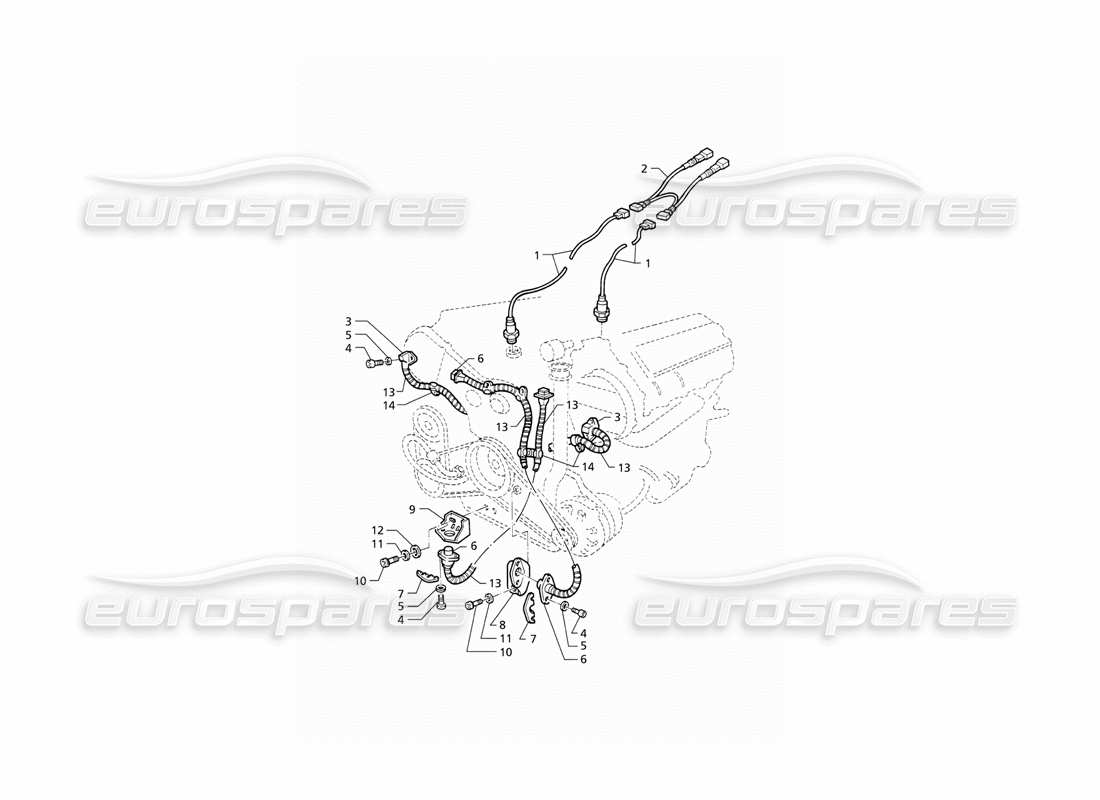

Maserati QTP V8 (1998) Ignition System: Sensors Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Price
                          # 001
                          MPN: 470089701
                          KNOCK SENSOR
                          from £110.70
                          from £110.70
                          # 002
                          MPN: 373730138
                          SENSOR CONNECTING CABLE
                          from £11.75
                          from £11.75
                          # 003
                          MPN: 479069400
                          SENSOR ON CAM
                          from £38.77
                          from £38.77
                          # 005
                          MPN: 45678
                          WASHER
                          Supersession
                          Supersession
                          # 007
                          MPN: 470061801
                          SHIM
                          - As necessary
                          from £0.69
                          from £0.69
                          This part replaces part number 313720327
                          # 008
                          MPN: 479061501
                          SENSOR SIDE SUPPORT
                          from £56.77
                          from £56.77
                          # 009
                          MPN: 479061202
                          SENSOR BOTTOM SUPPORT
                          from £57.21
                          from £57.21
                          # 010
                          MPN: 108006018
                          ALLEN SCREW SEC. SUPPORTS
                          # 011
                          MPN: 84157
                          SPRING WASHER
                          Supersession
                          Supersession
                          # 012
                          MPN: 312220411
                          FLAT WASHER
                          from £0.47
                          from £0.47
                          # 013
                          MPN: 328751332
                          CORRUGATED TUBE
                          - Section in metres - order minimum amount of 1 m
                          from £1.90
                          from £1.90
                          This part replaces part number 585540600
                          # 014
                          MPN: 187713
                          CLAMP
                          from £3.17
                          from £3.17
                          This part replaces part number 98055
