maserati qtp v8 (1998) alternator and support parts diagram

017 - Alternator and Support

Maserati QTP V8 (1998) Alternator and Support Parts Diagram

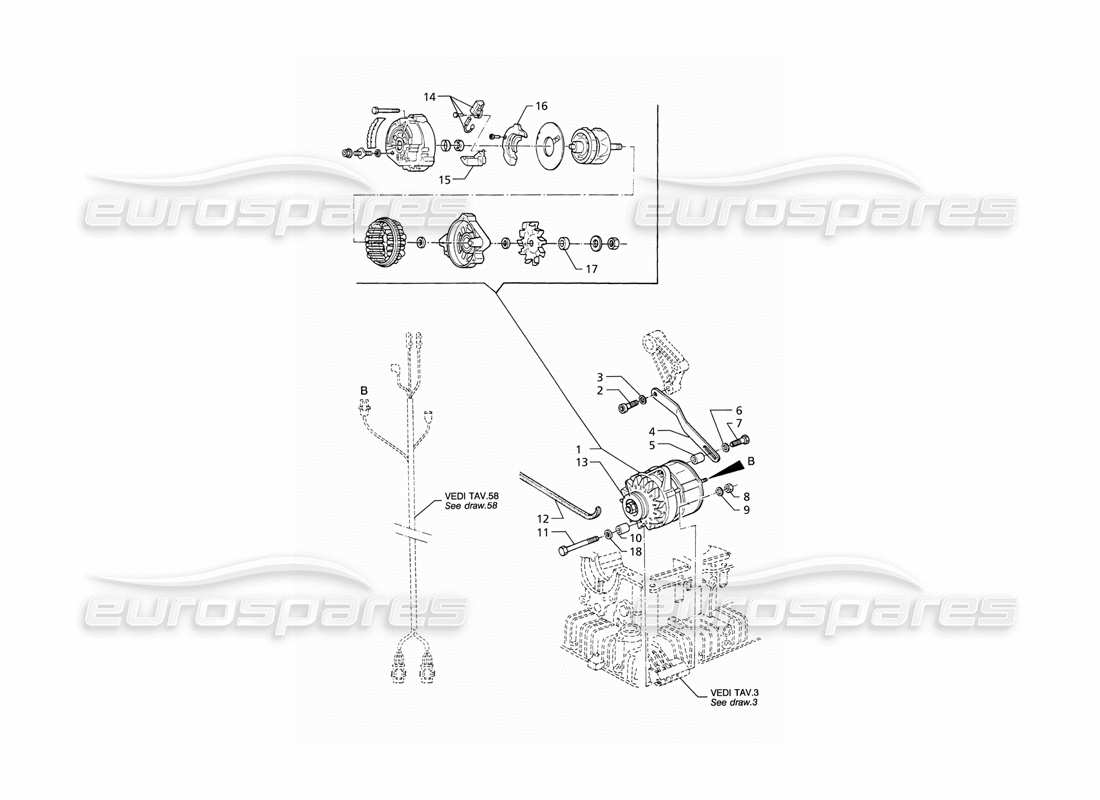

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                    #
                                    Part number
                                    Description
                                    Price
                                    # 001
                                    MPN: 393050214
                                    ALTERNATOR (DELCO)
                                    Also Biturbo 2,8 cc.
                                    from £868.00
                                    from £868.00
                                    This part replaces part number 313053214
                                    # 003
                                    MPN: 45681
                                    WASHER
                                    Supersession
                                    Supersession
                                    # 004
                                    MPN: 393050407
                                    ADJUSTING BRACKET
                                    from £55.16
                                    from £55.16
                                    # 009
                                    MPN: 452008901
                                    WASHER
                                    from £2.15
                                    from £2.15
                                    # 010
                                    MPN: 323758506
                                    SPACER
                                    from £3.08
                                    from £3.08
                                    # 012
                                    MPN: 393050505

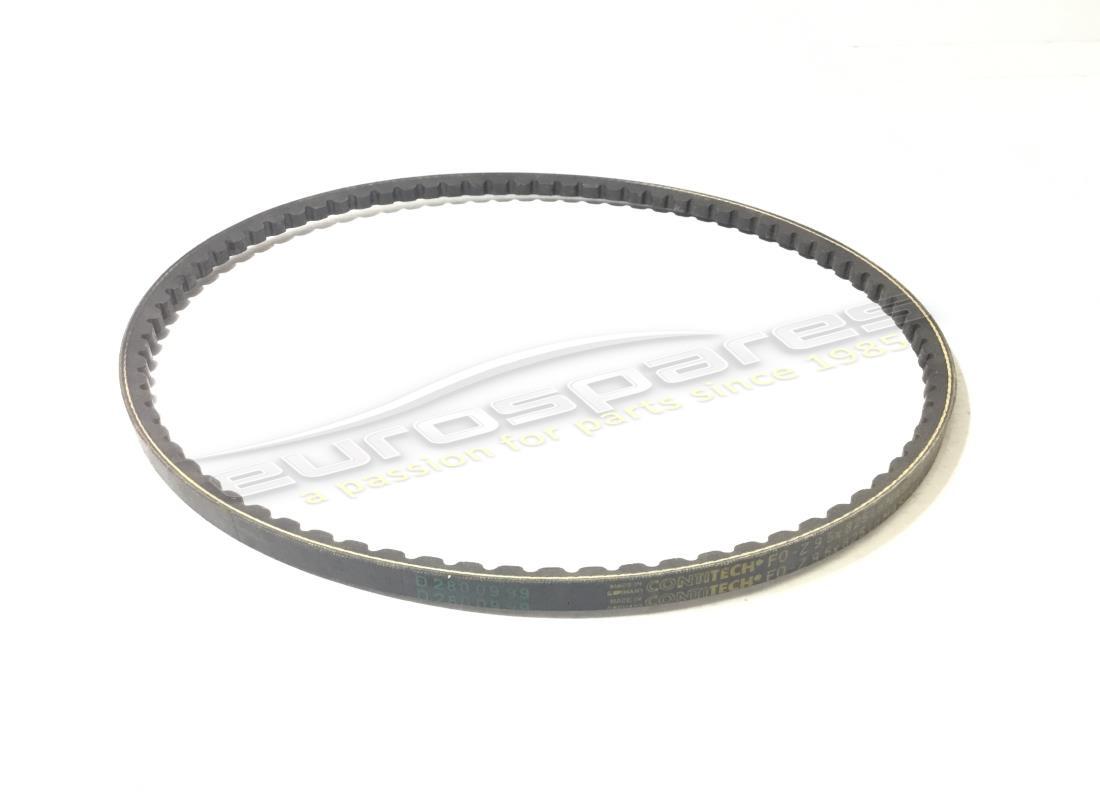

                                    ALTERNATOR BELT
                                    from £20.16
                                    from £20.16
                                    # 013
                                    MPN: 479081405
                                    PULLEY
                                    from £61.86
                                    from £61.86
                                    # 014
                                    MPN: 393050207
                                    BRUSH HOLDER COMPLETE ASSY
                                    from £11.39
                                    from £11.39
                                    # 015
                                    MPN: 393050208
                                    VOLTAGE REGULATOR
                                    from £64.05
                                    from £64.05
                                    # 016
                                    MPN: 393050209
                                    RECTIFIER BRIDGE
                                    from £97.81
                                    from £97.81
                                    # 018
                                    MPN: 14496601
                                    WASHER
                                    Supersession
                                    Supersession
