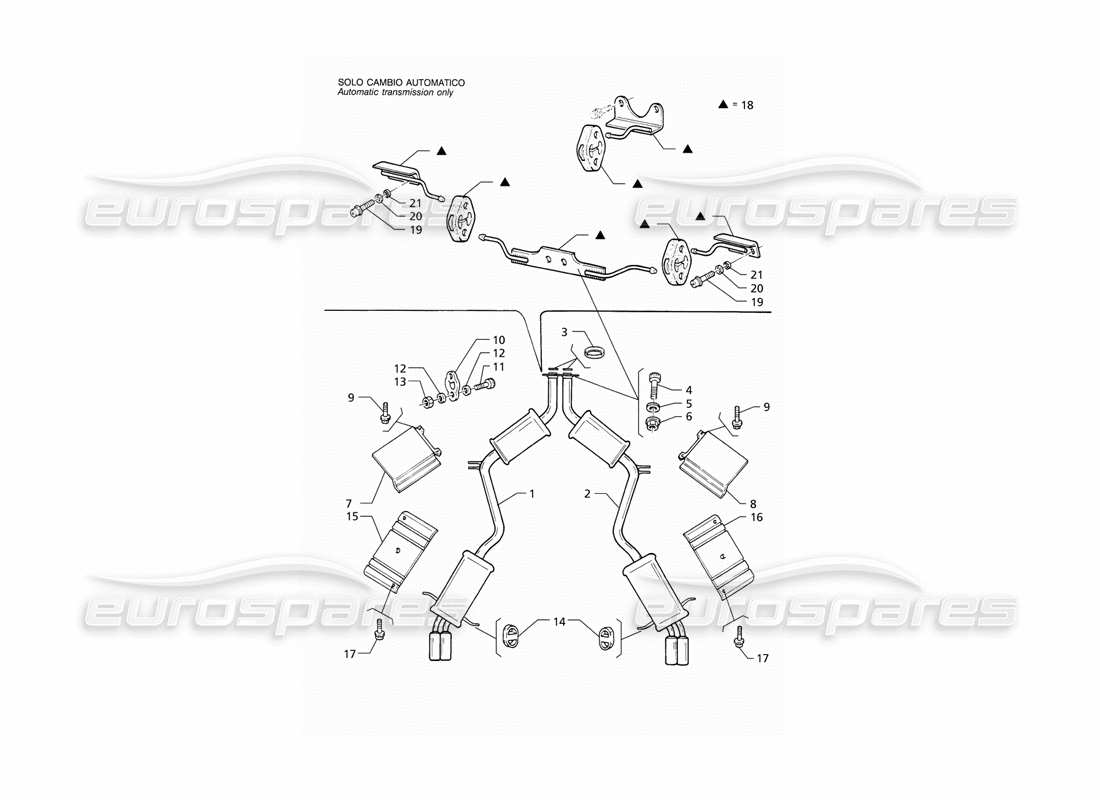

024.1 - Rear Exhaust System

Maserati QTP V8 (1998) Rear Exhaust System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                    #
                                    Part number
                                    Description
                                    Price
                                    # 001
                                    MPN: 379005113
                                    REAR LH TUBING
                                    from £500.07
                                    from £500.07
                                    # 002
                                    MPN: 379005114
                                    REAR RH TUBING
                                    from £439.32
                                    from £439.32
                                    # 003
                                    MPN: 399050305
                                    SEAL RING
                                    from £88.49
                                    from £88.49
                                    # 004
                                    MPN: 14814874
                                    ALLEN SCREW
                                    from £1.63
                                    from £1.63
                                    # 006
                                    MPN: 14058519
                                    STOP NUT
                                    from £0.52
                                    from £0.52
                                    This part replaces part number 312051309 which we have in stock
                                    # 007
                                    MPN: 369005139
                                    LH BULKHEAD
                                    from £9.87
                                    from £9.87
                                    # 008
                                    MPN: 369005140
                                    RH BULKHEAD
                                    from £9.87
                                    from £9.87
                                    # 009
                                    MPN: 112806025
                                    SELF-THREADING SCREW
                                    # 010
                                    MPN: 369000130
                                    RUBBER SUPPORT
                                    from £1.54
                                    from £1.54
                                    # 011
                                    MPN: 14304821
                                    ALLEN SCREW
                                    from £0.53
                                    from £0.53
                                    # 014
                                    MPN: 319020300
                                    RUBBER SUPPORT
                                    from £1.54
                                    from £1.54
                                    # 015
                                    MPN: 379000119
                                    REAR LH BULKHEAD
                                    from £11.83
                                    from £11.83
                                    # 016
                                    MPN: 379000120
                                    REAR RH BULKHEAD
                                    from £11.83
                                    from £11.83
                                    # 017
                                    MPN: 314320345
                                    FLANGED SCREW
                                    from £41.46
                                    from £41.46
                                    # 018
                                    MPN: 379031020
                                    EXHAUST SYSTEM SEC. KIT
                                    - Valid for A.T. version - Specific for automatic transmission
                                    from £50.71
                                    from £50.71
                                    # 019
                                    MPN: 108006020
                                    ALLEN SCREW
                                    - Valid for A.T. version - Specific for automatic transmission
                                    # 020
                                    MPN: 135300064
                                    SPLIT WASHER
                                    - Valid for A.T. version - Specific for automatic transmission
                                    # 021
                                    MPN: 135100064
                                    FLAT WASHER
                                    - Valid for A.T. version - Specific for automatic transmission
                                    from £1.07
                                    from £1.07
