maserati qtp v8 (1998) differential - external parts parts diagram

030 - Differential - External Parts

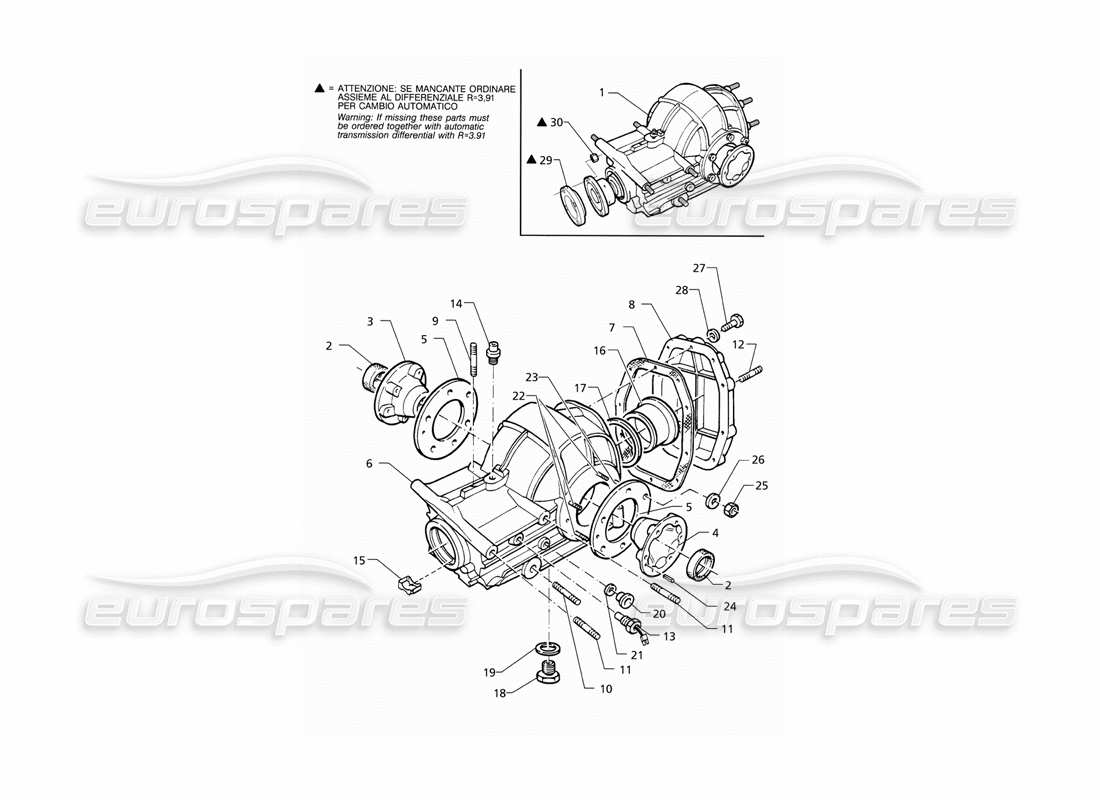

Maserati QTP V8 (1998) Differential - External Parts Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                #
                                                Part number
                                                Description
                                                Price
                                                # 001
                                                MPN: 376206005
                                                DIFFERENTIAL ASSY R=3,91
                                                - Valid for A.T. version
                                                from £892.50
                                                from £892.50
                                                # 001
                                                MPN: 376230003
                                                DIFFERENTIAL ASSY R=3,23
                                                - Valid for M.T. version
                                                Supersession
                                                Supersession
                                                This part replaces part number 376200003
                                                # 002
                                                MPN: 376200125
                                                OIL SEAL
                                                from £27.59
                                                from £27.59
                                                # 003
                                                MPN: 376200386
                                                DRIVE AXLE RH ATTACHMENT HUB
                                                - Valid for M.T. version
                                                from £109.02
                                                from £109.02
                                                # 003
                                                MPN: 376206386
                                                DRIVE AXLE RH ATTACHMENT HUB
                                                - Valid for A.T. version
                                                from £183.88
                                                from £183.88
                                                # 004
                                                MPN: 376200385
                                                DRIVE AXLE LH ATTACHMENT HUB
                                                - Valid for M.T. version
                                                from £105.89
                                                from £105.89
                                                # 004
                                                MPN: 376206385
                                                DRIVE AXLE LH ATTACHMENT HUB
                                                - Valid for A.T. version
                                                from £117.64
                                                from £117.64
                                                # 005
                                                MPN: 376200353
                                                SHIM
                                                from £11.76
                                                from £11.76
                                                # 006
                                                -
                                                EXTERNAL BOX
                                                # 007
                                                MPN: 376200365
                                                GASKET
                                                from £5.93
                                                from £5.93
                                                # 008
                                                MPN: 376200525
                                                BOX COVER
                                                from £33.42
                                                from £33.42
                                                # 009
                                                MPN: 376200605
                                                STUD, M10X50
                                                from £7.15
                                                from £7.15
                                                # 010
                                                MPN: 376200603
                                                STUD, M12X35
                                                from £2.84
                                                from £2.84
                                                # 011
                                                MPN: 376200604
                                                STUD, M10X30
                                                from £1.07
                                                from £1.07
                                                # 012
                                                MPN: 376200606
                                                STUD, M8X65
                                                from £1.93
                                                from £1.93
                                                # 014
                                                MPN: 376200107
                                                BREATHER PIPE
                                                from £2.31
                                                from £2.31
                                                # 015
                                                MPN: 376200390
                                                OIL DEFLECTOR
                                                from £4.41
                                                from £4.41
                                                # 016
                                                MPN: 376200360
                                                PINION BEARING SEAT
                                                from £64.85
                                                from £64.85
                                                # 017
                                                MPN: 376200347
                                                SHIM
                                                from £10.00
                                                from £10.00
                                                # 018
                                                MPN: 376200346
                                                OIL DRAINAGE PLUG
                                                from £4.15
                                                from £4.15
                                                # 019
                                                MPN: 376200342
                                                GASKET
                                                from £1.07
                                                from £1.07
                                                # 020
                                                MPN: 376200548
                                                OIL LEVEL PLUG
                                                from £10.32
                                                from £10.32
                                                # 021
                                                MPN: 376200549
                                                GASKET
                                                from £2.54
                                                from £2.54
                                                # 022
                                                MPN: 105010022
                                                STUD
                                                # 023
                                                MPN: 104810022
                                                STUD
                                                # 024
                                                MPN: 144205020
                                                SPRING PIN
                                                from £0.68
                                                from £0.68
                                                # 029
                                                MPN: 376031360
                                                SPACER
                                                - Valid for A.T. version - If missing order with differential R=3.91
                                                from £25.92
                                                from £25.92
                                                # 030
                                                MPN: 98095
                                                NUT
                                                - Valid for A.T. version - If missing order with differential R=3.91
                                                from £1.31
                                                from £1.31
