maserati qtp v8 (1998) steering box front subframe parts diagram

032 - Steering Box Front Subframe

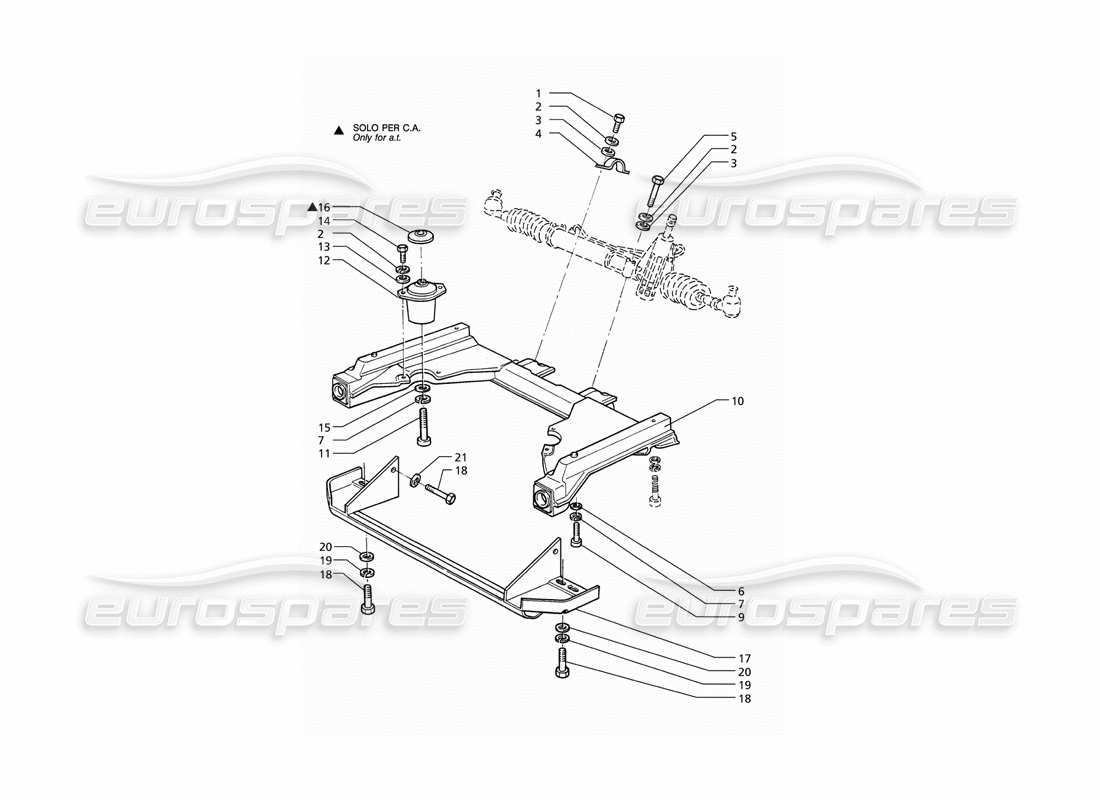

Maserati QTP V8 (1998) Steering Box Front Subframe Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                      #
                                      Part number
                                      Description
                                      Price
                                      # 003
                                      MPN: 163020100
                                      FLAT WASHER
                                      from £1.08
                                      from £1.08
                                      # 004
                                      MPN: 327856344
                                      BRACKET
                                      from £1.92
                                      from £1.92
                                      # 005
                                      MPN: 100710035
                                      SCREW
                                      # 007
                                      MPN: 138200120
                                      SPRING WASHER
                                      from £0.77
                                      from £0.77
                                      # 010
                                      MPN: 372730102
                                      Front Chassis
                                      - Valid for M.T. version
                                      Supersession
                                      Supersession
                                      # 010
                                      MPN: 372731102
                                      Front Chassis
                                      - Valid for A.T. version
                                      from £2,955.55
                                      from £2,955.55
                                      # 011
                                      MPN: 14422474
                                      ALLEN SCREW
                                      from £1.85
                                      from £1.85
                                      This part replaces part number 14422431
                                      # 011
                                      MPN: 97760
                                      ALLEN SCREW
                                      # 012
                                      MPN: 394250100
                                      SILENTBLOCK
                                      from £183.75
                                      from £183.75
                                      # 013
                                      MPN: 314220314
                                      WASHER
                                      from £1.08
                                      from £1.08
                                      # 014
                                      MPN: 101210030
                                      SCREW
                                      from £1.55
                                      from £1.55
                                      # 015
                                      MPN: 313020411
                                      FLAT WASHER
                                      from £0.47
                                      from £0.47
                                      # 016
                                      MPN: 314232316
                                      SPACER
                                      - Valid for A.T. version
                                      from £7.40
                                      from £7.40
                                      # 017
                                      MPN: 376630146
                                      CROSS MEMBER UNDER SUMP
                                      from £32.10
                                      from £32.10
                                      # 018
                                      MPN: 100708020
                                      SCREW
                                      from £0.69
                                      from £0.69
                                      # 019
                                      MPN: 138410080
                                      CRINKLE WASHER
                                      from £2.28
                                      from £2.28
                                      # 020
                                      MPN: 312225445
                                      FLAT WASHER
                                      from £0.77
                                      from £0.77
                                      # 021
                                      MPN: 163020080
                                      FLAT WASHER
                                      from £1.08
                                      from £1.08
