maserati qtp v8 (1998) power steering system (rhd) parts diagram

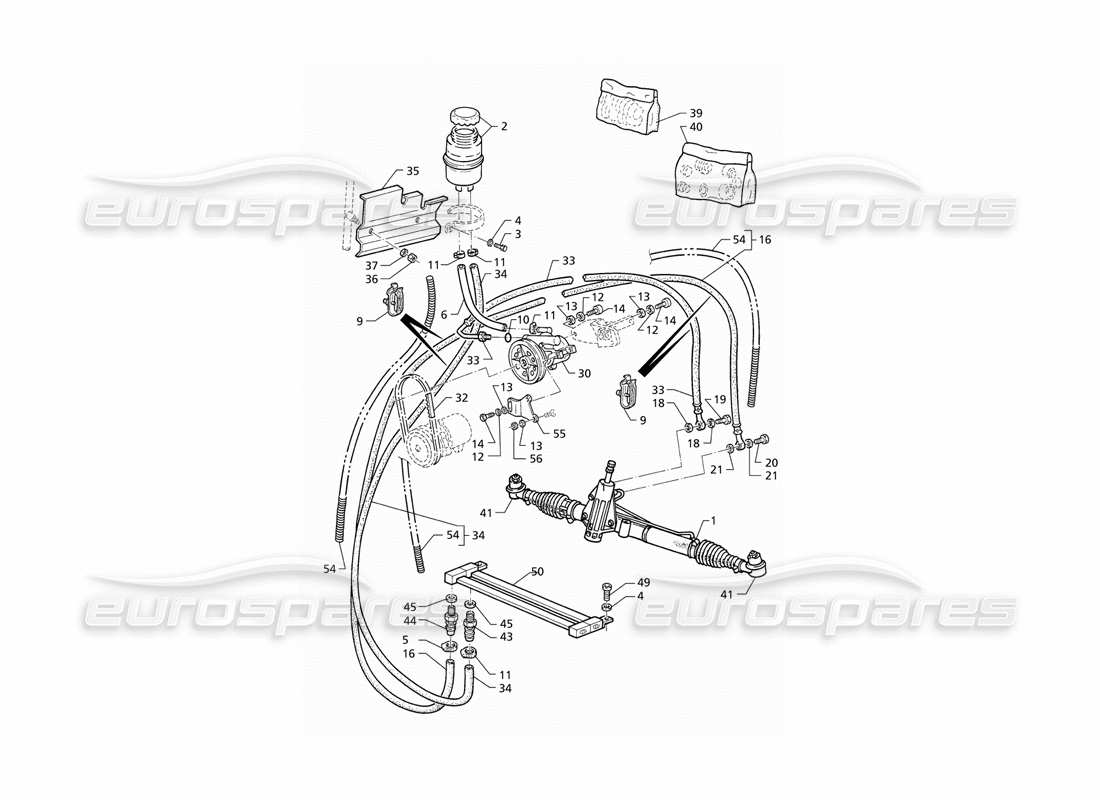

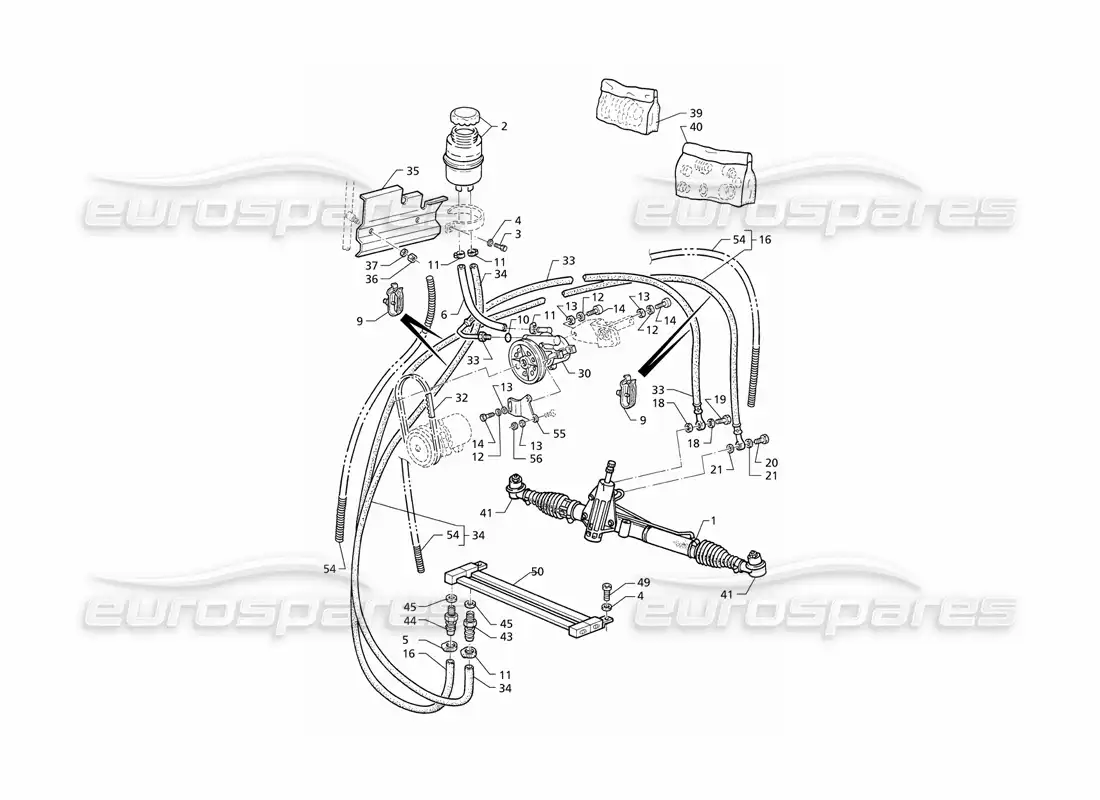

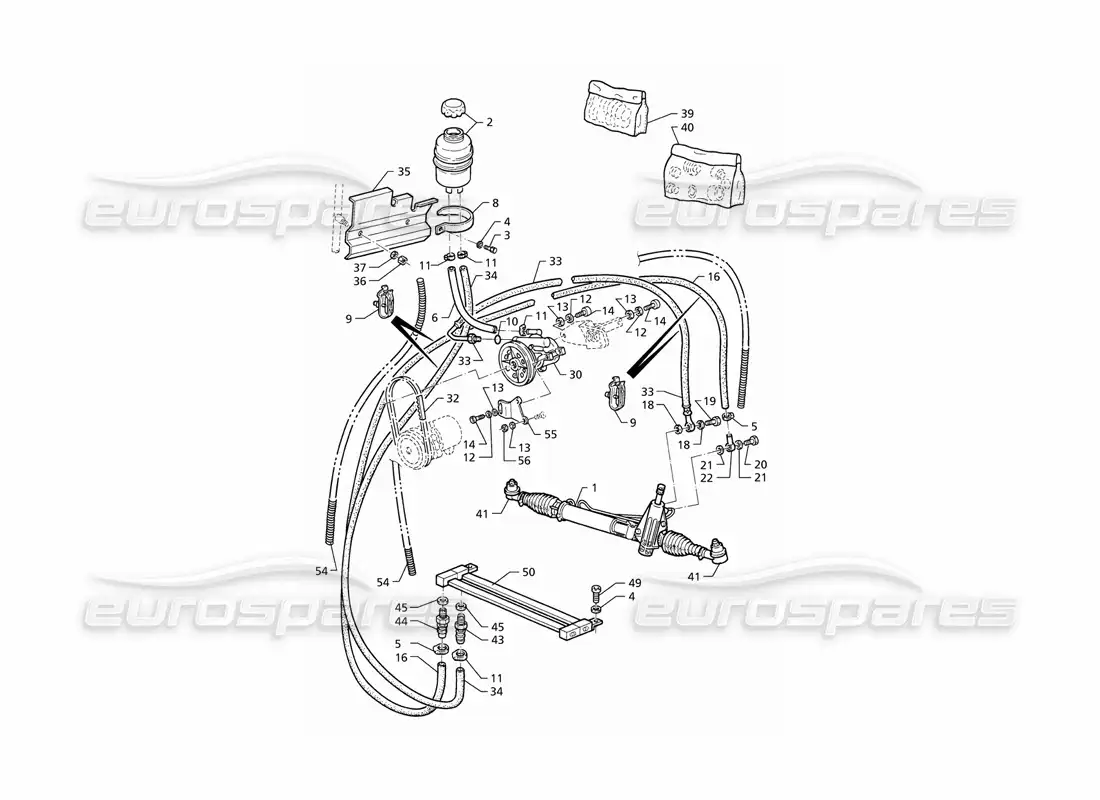

033GD - Power Steering System (RHD)

Maserati QTP V8 (1998) Power Steering System (RHD) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                      #
                                                                      Part number
                                                                      Description
                                                                      Price
                                                                      # 001
                                                                      MPN: 377841225
                                                                      POWER STEERING ASSY
                                                                      # 002
                                                                      MPN: 377840130
                                                                      OIL TANK
                                                                      from £31.50
                                                                      from £31.50
                                                                      # 004
                                                                      MPN: 163020060
                                                                      FLAT WASHER
                                                                      from £2.55
                                                                      from £2.55
                                                                      # 005
                                                                      MPN: 317832389
                                                                      CLAMP
                                                                      from £1.92
                                                                      from £1.92
                                                                      # 006
                                                                      MPN: 377840370
                                                                      SLEEVE
                                                                      from £0.47
                                                                      from £0.47
                                                                      # 009
                                                                      MPN: 377830440
                                                                      SLEEVE RETAINING CLAMP
                                                                      from £0.69
                                                                      from £0.69
                                                                      # 010
                                                                      MPN: 192415108
                                                                      O-RING
                                                                      from £1.72
                                                                      from £1.72
                                                                      # 011
                                                                      MPN: 186402024
                                                                      CLAMP
                                                                      Supersession
                                                                      Supersession
                                                                      # 012
                                                                      MPN: 138410080
                                                                      SPRING WASHER
                                                                      from £2.28
                                                                      from £2.28
                                                                      # 014
                                                                      MPN: 14306424
                                                                      SCREW
                                                                      from £0.52
                                                                      from £0.52
                                                                      This part replaces part number 14306421
                                                                      # 016
                                                                      MPN: 377840193
                                                                      COMPLETE RETURN PIPE
                                                                      from £26.72
                                                                      from £26.72
                                                                      # 018
                                                                      MPN: 317851602
                                                                      GASKET
                                                                      from £1.08
                                                                      from £1.08
                                                                      # 019
                                                                      MPN: 317832380
                                                                      UNION SCREW
                                                                      from £9.01
                                                                      from £9.01
                                                                      # 020
                                                                      MPN: 367801387
                                                                      UNION SCREW
                                                                      from £6.01
                                                                      from £6.01
                                                                      This part replaces part number 317851387
                                                                      # 021
                                                                      MPN: 317851601
                                                                      GASKET
                                                                      from £1.08
                                                                      from £1.08
                                                                      # 030
                                                                      MPN: 397850211
                                                                      PUMP WITH PULLEY
                                                                      from £153.65
                                                                      from £153.65
                                                                      # 032
                                                                      MPN: 97247
                                                                      POWER STEERING BELT
                                                                      from £4.04
                                                                      from £4.04
                                                                      # 033
                                                                      MPN: 377840207
                                                                      OIL DELIVERY PIPE
                                                                      from £72.74
                                                                      from £72.74
                                                                      # 034
                                                                      MPN: 377830636
                                                                      SLEEVE
                                                                      from £15.81
                                                                      from £15.81
                                                                      # 035
                                                                      MPN: 377840350
                                                                      BULKHEAD
                                                                      # 036
                                                                      MPN: 122600050
                                                                      SELF LOCKING NUT
                                                                      # 037
                                                                      MPN: 135100064
                                                                      FLAT WASHER
                                                                      from £1.08
                                                                      from £1.08
                                                                      # 039
                                                                      MPN: 310232040
                                                                      KIT FOR PIPE AND UNION REPLACEMENT
                                                                      from £31.60
                                                                      from £31.60
                                                                      # 040
                                                                      MPN: 390250080
                                                                      KIT FOR BELLOWS AND CLAMP REPLACEMENT
                                                                      from £126.46
                                                                      from £126.46
                                                                      This part replaces part number 320250033
                                                                      # 041
                                                                      MPN: 377801133
                                                                      head
                                                                      from £84.74
                                                                      from £84.74
                                                                      # 043
                                                                      MPN: 377830609
                                                                      UNION
                                                                      from £1.89
                                                                      from £1.89
                                                                      # 044
                                                                      MPN: 397850609
                                                                      UNION
                                                                      from £1.76
                                                                      from £1.76
                                                                      # 045
                                                                      MPN: 397850608
                                                                      GASKET
                                                                      from £1.08
                                                                      from £1.08
                                                                      # 050
                                                                      MPN: 377830618
                                                                      CORRUGATED PIPE
                                                                      from £201.63
                                                                      from £201.63
                                                                      # 054
                                                                      MPN: 318720333
                                                                      CORRUGATED PIPE
                                                                      - Section in metres - order minimum amount of 2 m or multiples
                                                                      from £5.10
                                                                      from £5.10
                                                                      # 055
                                                                      MPN: 479484001
                                                                      BRACKET
                                                                      from £7.70
                                                                      from £7.70
                                                                      # 056
                                                                      MPN: 53397
                                                                      8X1.25 STOP NUT
                                                                      Supersession
                                                                      Supersession
