maserati qtp v8 (1998) hubs and front brakes with a.b.s. parts diagram

038 - Hubs and Front Brakes With A.B.S.

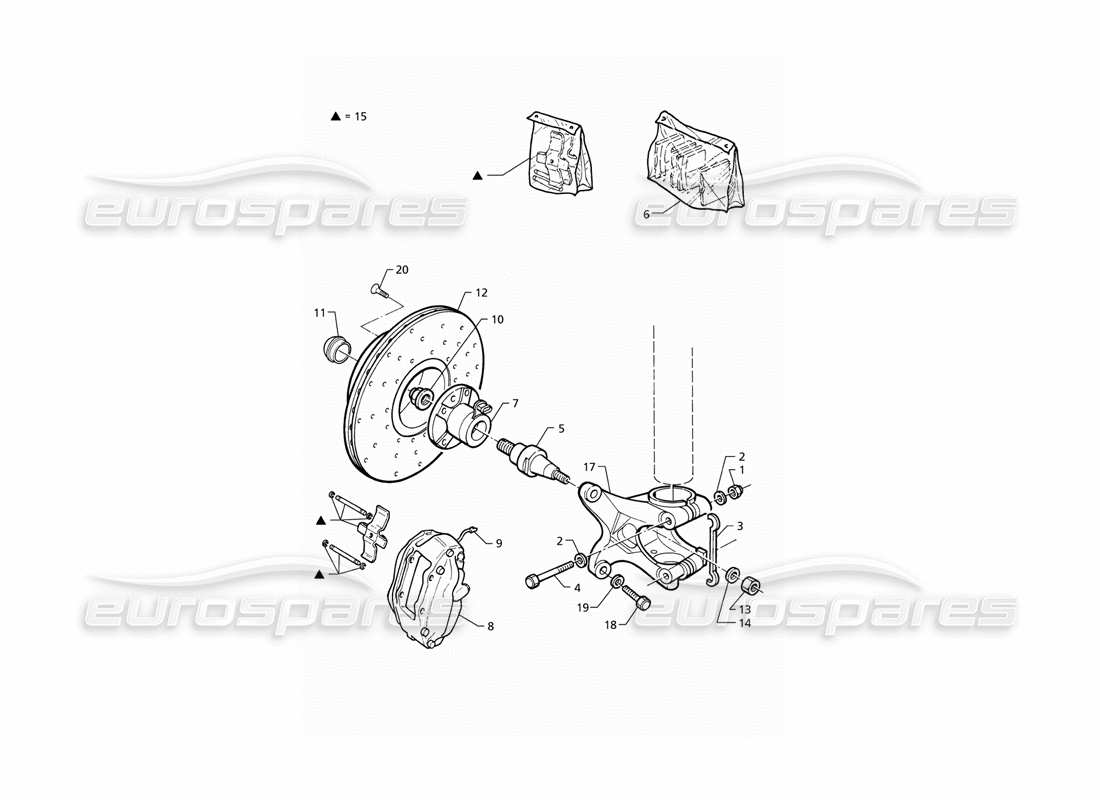

Maserati QTP V8 (1998) Hubs and Front Brakes With A.B.S. Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                        #
                                        Part number
                                        Description
                                        Price
                                        # 001
                                        MPN: 326656321
                                        NUT
                                        from £3.65
                                        from £3.65
                                        # 002
                                        MPN: 14496601
                                        FLAT WASHER
                                        Supersession
                                        Supersession
                                        # 003
                                        MPN: 326656313
                                        SHIM
                                        from £2.93
                                        from £2.93
                                        # 004
                                        MPN: 326656309
                                        SCREW
                                        from £2.93
                                        from £2.93
                                        # 005
                                        MPN: 376600326
                                        STUB AXLE
                                        from £51.86
                                        from £51.86
                                        # 006
                                        MPN: 370230039
                                        BRAKE PAD SET
                                        from £254.65
                                        from £254.65
                                        # 007
                                        MPN: 377200373
                                        FLANGED BEARING
                                        from £285.51
                                        from £285.51
                                        # 008
                                        MPN: 377230107
                                        LH BRAKE CALIPER
                                        from £271.70
                                        from £271.70
                                        # 008
                                        MPN: 377230108
                                        RH BRAKE CALIPER
                                        from £293.63
                                        from £293.63
                                        # 009
                                        MPN: 363302215
                                        BRAKE DISK SENSOR
                                        from £3.94
                                        from £3.94
                                        # 010
                                        MPN: 377200372
                                        NUT
                                        from £8.17
                                        from £8.17
                                        # 011
                                        MPN: 377200324
                                        CUP
                                        from £0.47
                                        from £0.47
                                        # 012
                                        MPN: 377280321
                                        BRAKE DISK
                                        from £227.04
                                        from £227.04
                                        This part replaces part number 367203321
                                        # 013
                                        MPN: 326656314
                                        NUT
                                        from £20.69
                                        from £20.69
                                        # 014
                                        MPN: 326656320
                                        WASHER
                                        from £11.34
                                        from £11.34
                                        # 015
                                        MPN: 370201045
                                        BRAKE PAD SECURING KIT
                                        from £26.52
                                        from £26.52
                                        # 017
                                        MPN: 376600311
                                        LH SHAFT CARRIER
                                        from £58.31
                                        from £58.31
                                        # 017
                                        MPN: 376600312
                                        RH SHAFT CARRIER
                                        from £106.02
                                        from £106.02
                                        # 018
                                        MPN: 377200319
                                        BOLT
                                        from £11.74
                                        from £11.74
                                        This part replaces part number 387200319
                                        # 019
                                        MPN: 138420120
                                        CRINKLE WASHER
                                        Supersession
                                        Supersession
