maserati qtp v8 (1998) pedal assy and clutch pump (rhd) parts diagram

041GD - Pedal Assy and Clutch Pump (RHD)

Maserati QTP V8 (1998) Pedal Assy and Clutch Pump (RHD) Parts Diagram

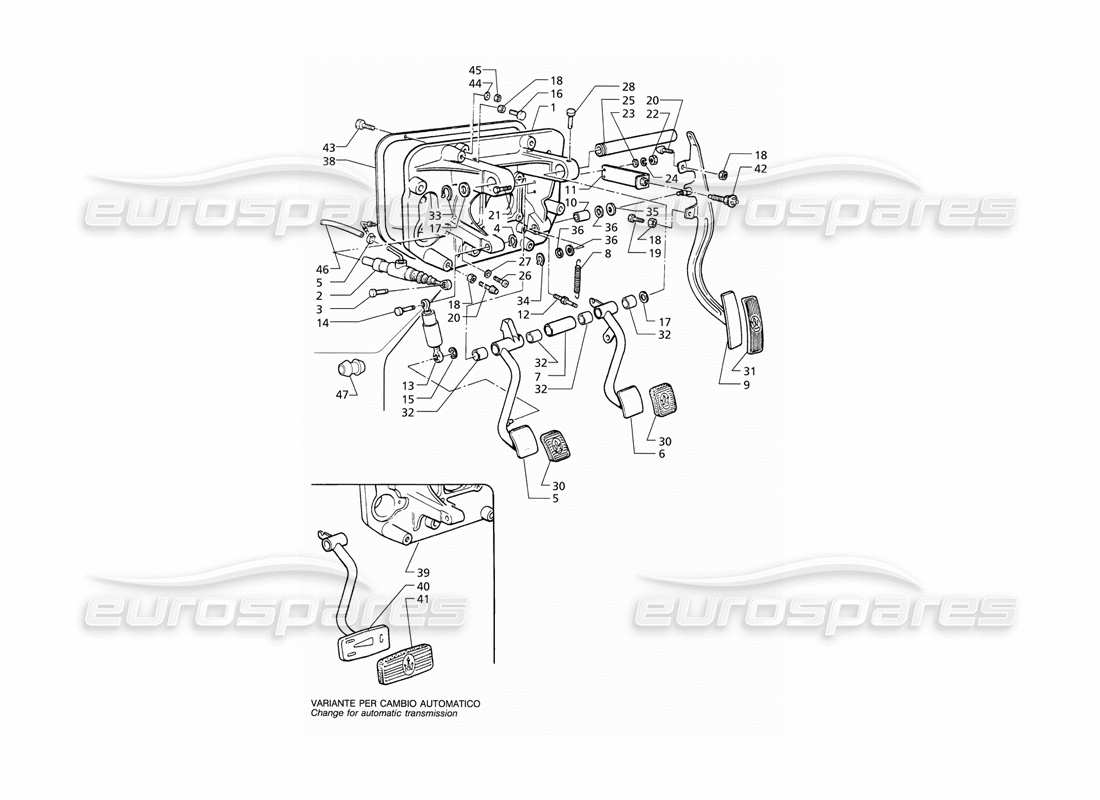

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                              #
                                                              Part number
                                                              Description
                                                              Price
                                                              # 001
                                                              MPN: 378419304
                                                              SUPPORT
                                                              - Valid for M.T. version
                                                              from £27.65
                                                              from £27.65
                                                              # 002
                                                              MPN: 378200101
                                                              PUMP
                                                              - Valid for M.T. version
                                                              from £225.00
                                                              from £225.00
                                                              # 003
                                                              MPN: 378419358
                                                              PIN
                                                              - Valid for M.T. version
                                                              from £21.24
                                                              from £21.24
                                                              # 004
                                                              MPN: 71509
                                                              SEEGER RING
                                                              Supersession
                                                              Supersession
                                                              # 005
                                                              MPN: 378421122
                                                              CLUTCH PEDAL
                                                              - Valid for M.T. version
                                                              from £68.25
                                                              from £68.25
                                                              # 006
                                                              MPN: 378419104
                                                              BRAKE PEDAL
                                                              - Valid for M.T. version
                                                              from £68.25
                                                              from £68.25
                                                              # 007
                                                              MPN: 378419319
                                                              SPACER
                                                              from £8.42
                                                              from £8.42
                                                              # 008
                                                              MPN: 368402308
                                                              SPRING
                                                              from £2.95
                                                              from £2.95
                                                              # 009
                                                              MPN: 328470113
                                                              SPEED PEDAL
                                                              from £40.26
                                                              from £40.26
                                                              # 010
                                                              MPN: 470037700
                                                              BUSH
                                                              from £9.20
                                                              from £9.20
                                                              This part replaces part number 311020336
                                                              # 011
                                                              MPN: 378400120
                                                              IDROSTOP SUPPORT
                                                              from £21.85
                                                              from £21.85
                                                              # 012
                                                              MPN: 378400368
                                                              PIN
                                                              from £80.79
                                                              from £80.79
                                                              # 013
                                                              MPN: 378400854
                                                              CLUTCH PEDAL SERVO CONTROL
                                                              - Valid for M.T. version
                                                              from £41.01
                                                              from £41.01
                                                              # 014
                                                              MPN: 378419410
                                                              PIN
                                                              - Valid for M.T. version
                                                              from £27.15
                                                              from £27.15
                                                              # 015
                                                              MPN: 150800090
                                                              SEEGER RING
                                                              - Valid for M.T. version
                                                              from £0.47
                                                              from £0.47
                                                              # 016
                                                              MPN: 364700180
                                                              LIMIT STOP
                                                              - Valid for M.T. version
                                                              from £2.82
                                                              from £2.82
                                                              # 017
                                                              MPN: 368402321
                                                              SPACER WASHER
                                                              - Valid for M.T. version
                                                              from £1.07
                                                              from £1.07
                                                              # 019
                                                              MPN: 101206040
                                                              SCREW
                                                              from £0.47
                                                              from £0.47
                                                              # 020
                                                              MPN: 318420114
                                                              LIMIT STOP
                                                              from £1.90
                                                              from £1.90
                                                              # 022
                                                              MPN: 47046
                                                              NUT
                                                              Supersession
                                                              Supersession
                                                              # 023
                                                              MPN: 135600050
                                                              SPRING WASHER
                                                              from £0.76
                                                              from £0.76
                                                              # 024
                                                              MPN: 69021
                                                              FLAT WASHER
                                                              Supersession
                                                              Supersession
                                                              # 025
                                                              MPN: 378419328
                                                              PIN
                                                              - Valid for M.T. version
                                                              from £37.36
                                                              from £37.36
                                                              # 025
                                                              MPN: 378420328
                                                              PIN
                                                              - Valid for A.T. version
                                                              from £14.16
                                                              from £14.16
                                                              # 026
                                                              MPN: 108006018
                                                              ALLEN SCREW
                                                              - Valid for M.T. version
                                                              # 027
                                                              MPN: 378419378
                                                              WASHER
                                                              - Valid for M.T. version
                                                              from £4.62
                                                              from £4.62
                                                              # 028
                                                              MPN: 378419377
                                                              PIN
                                                              from £11.24
                                                              from £11.24
                                                              # 029
                                                              MPN: 58841309
                                                              SAFETY CLIP
                                                              from £1.99
                                                              from £1.99
                                                              This part replaces part number 670000498 - and 2 more. Click to view details
                                                              # 030
                                                              MPN: 318420300
                                                              PEDAL COVER
                                                              - Valid for M.T. version
                                                              from £3.23
                                                              from £3.23
                                                              # 031
                                                              MPN: 318420301
                                                              SPEED PEDAL COVER
                                                              from £1.50
                                                              from £1.50
                                                              # 032
                                                              MPN: 318420320
                                                              BUSH
                                                              from £9.61
                                                              from £9.61
                                                              # 033
                                                              MPN: 151100180
                                                              SEEGER RING
                                                              from £0.68
                                                              from £0.68
                                                              # 035
                                                              MPN: 311020352
                                                              WASHER
                                                              from £1.07
                                                              from £1.07
                                                              # 036
                                                              MPN: 318420346
                                                              NYLON WASHER
                                                              from £1.07
                                                              from £1.07
                                                              # 038
                                                              MPN: 378419348
                                                              GASKET
                                                              from £6.38
                                                              from £6.38
                                                              # 039
                                                              MPN: 378420304
                                                              PEDAL ASSY SUPPORT
                                                              from £15.21
                                                              from £15.21
                                                              # 040
                                                              MPN: 378420104
                                                              BRAKE PEDAL
                                                              - Valid for A.T. version
                                                              from £178.50
                                                              from £178.50
                                                              # 041
                                                              MPN: 318432300
                                                              BRAKE PEDAL COVER
                                                              - Valid for A.T. version
                                                              from £2.39
                                                              from £2.39
                                                              # 042
                                                              MPN: 323850107
                                                              IDROSTOP
                                                              Supersession
                                                              Supersession
                                                              # 045
                                                              MPN: 128350080
                                                              NUT
                                                              Supersession
                                                              Supersession
                                                              # 046
                                                              MPN: 378200329
                                                              TUBE
                                                              from £0.56
                                                              from £0.56
                                                              # 047
                                                              MPN: 9532
                                                              BUSHING SECURING CLUTCH PUMP
                                                              from £2.31
                                                              from £2.31
