046.1GD - Bonnet and Engine Compartment Covers (RHD)

Maserati QTP V8 (1998) Bonnet and Engine Compartment Covers (RHD) Parts Diagram

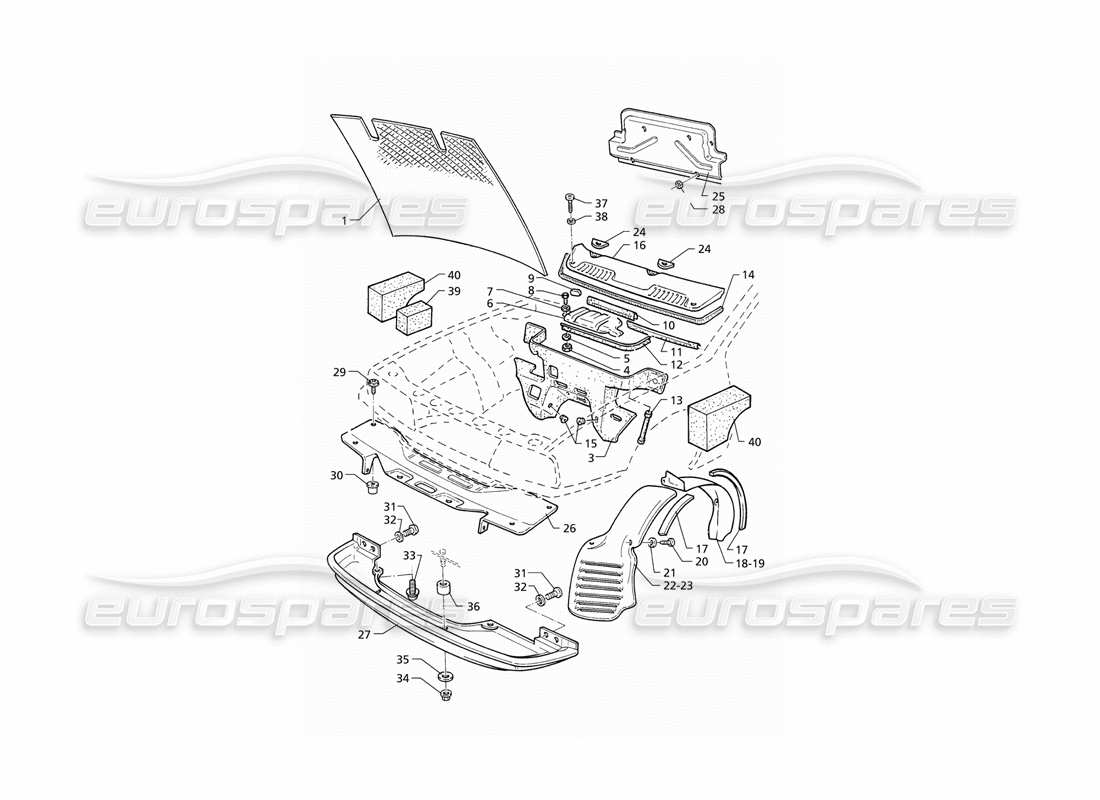

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                          #
                                                                          Part number
                                                                          Description
                                                                          Price
                                                                          # 001
                                                                          MPN: 374300362
                                                                          ENGINE HOOD TRIMMING
                                                                          from £52.78
                                                                          from £52.78
                                                                          # 003
                                                                          MPN: 321570402
                                                                          ENGINE COMPARTMENT INSULATING MATERIAL
                                                                          - Part to be modified before assembly
                                                                          from £115.62
                                                                          from £115.62
                                                                          # 004
                                                                          MPN: 319220324
                                                                          NUT SCREW
                                                                          from £0.65
                                                                          from £0.65
                                                                          This part replaces part number 82457087
                                                                          # 005
                                                                          MPN: 312520511
                                                                          GASKET
                                                                          from £1.72
                                                                          from £1.72
                                                                          # 006
                                                                          MPN: 312520510
                                                                          WATER SHIELD
                                                                          from £2.89
                                                                          from £2.89
                                                                          # 007
                                                                          MPN: 169020005
                                                                          WASHER
                                                                          from £1.10
                                                                          from £1.10
                                                                          # 009
                                                                          MPN: 53211300
                                                                          PLUG
                                                                          Supersession
                                                                          Supersession
                                                                          # 010
                                                                          MPN: 312520513
                                                                          WATER PROOF CHANNEL FOR AIR CONDIT. AIR INTAKE
                                                                          from £0.71
                                                                          from £0.71
                                                                          # 011
                                                                          MPN: 314320357
                                                                          REAR GASKET FOR ENGINE HOOD COMPARTMENT
                                                                          from £6.55
                                                                          from £6.55
                                                                          This part replaces part number 318720301
                                                                          # 012
                                                                          MPN: 314320358
                                                                          GASKET
                                                                          from £4.26
                                                                          from £4.26
                                                                          # 013
                                                                          MPN: 312120321
                                                                          DRAINAGE PIPE
                                                                          from £1.44
                                                                          from £1.44
                                                                          # 014
                                                                          MPN: 368700302
                                                                          GASKET
                                                                          - Section in metres - order minimum amount of 5 m or multiples
                                                                          from £3.32
                                                                          from £3.32
                                                                          # 015
                                                                          MPN: 311553426
                                                                          CLIP
                                                                          from £0.71
                                                                          from £0.71
                                                                          # 016
                                                                          MPN: 372540270
                                                                          ACCESSORY COMPARTMENT COVERY
                                                                          from £256.92
                                                                          from £256.92
                                                                          # 017
                                                                          MPN: 374380424
                                                                          GASKET
                                                                          -Section in metres - order minimum amount of 5 m or multiples
                                                                          from £24.99
                                                                          from £24.99
                                                                          This part replaces part number 318720355
                                                                          # 018
                                                                          MPN: 372500505
                                                                          LH MUDGUARD
                                                                          from £24.08
                                                                          from £24.08
                                                                          # 019
                                                                          MPN: 372500506
                                                                          RH MUDGUARD
                                                                          from £24.08
                                                                          from £24.08
                                                                          # 021
                                                                          MPN: 312552529
                                                                          PVC WASHER
                                                                          Supersession
                                                                          Supersession
                                                                          # 022
                                                                          MPN: 372580525
                                                                          LH MUDGUARD
                                                                          from £217.70
                                                                          from £217.70
                                                                          This part replaces part number 372530525
                                                                          # 023
                                                                          MPN: 372580526
                                                                          RH MUDGUARD
                                                                          from £119.74
                                                                          from £119.74
                                                                          This part replaces part number 372530526 - and 1 more. Click to view details
                                                                          # 024
                                                                          MPN: 373300351
                                                                          Frame
                                                                          from £0.63
                                                                          from £0.63
                                                                          # 025
                                                                          MPN: 373330349
                                                                          ABSOLUTE PRESS. SENSORS COMPARTMENT COVER
                                                                          from £6.43
                                                                          from £6.43
                                                                          # 026
                                                                          MPN: 374130323
                                                                          ENGINE BAY UPPER CASE
                                                                          from £165.36
                                                                          from £165.36
                                                                          # 027
                                                                          MPN: 376130300
                                                                          ENGINE GUARD LOWER CASE
                                                                          from £139.65
                                                                          from £139.65
                                                                          # 029
                                                                          MPN: 161600510
                                                                          SELF-THREADING SCREW
                                                                          from £4.98
                                                                          from £4.98
                                                                          # 030
                                                                          MPN: 378300387
                                                                          NUT SCREW
                                                                          from £2.37
                                                                          from £2.37
                                                                          # 032
                                                                          MPN: 136110055
                                                                          FLAT WASHER
                                                                          from £0.79
                                                                          from £0.79
                                                                          # 033
                                                                          MPN: 13382011
                                                                          SCREW WITH SPRING WASHER Ø 6
                                                                          from £4.34
                                                                          from £4.34
                                                                          # 036
                                                                          MPN: 98074
                                                                          SHIM
                                                                          from £2.69
                                                                          from £2.69
                                                                          # 037
                                                                          MPN: 119142160
                                                                          SCREW
                                                                          from £0.87
                                                                          from £0.87
                                                                          # 038
                                                                          MPN: 135000043
                                                                          FLAT WASHER
                                                                          from £1.10
                                                                          from £1.10
                                                                          # 039
                                                                          MPN: 371530464
                                                                          INSULATING MATERIAL
                                                                          from £23.62
                                                                          from £23.62
                                                                          # 040
                                                                          MPN: 371530463
                                                                          INSULATING MATERIAL
                                                                          from £45.15
                                                                          from £45.15
