![maserati qtp v8 (1998) rear lights parts diagram](/img/CxEAAETdFtt3w7EUSxlyBiIoqmWIRqFBpvNxLv28KIHGo4RHtbFlAAM%3D/maserati-qtp-v8-(1998)-part-diagram-057.webp)
057 - Rear Lights

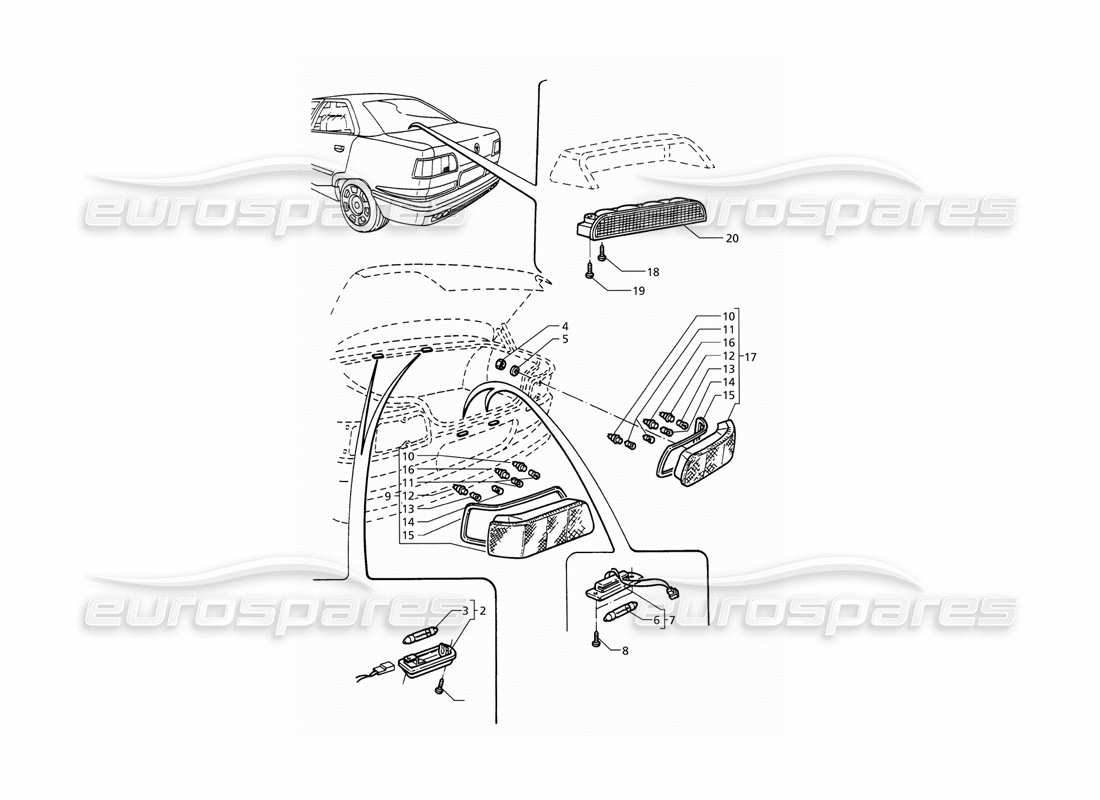

Maserati QTP V8 (1998) Rear Lights Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 119142160
SCREW
from £0.86
from £0.86
# 002
MPN: 393150120
BOOT LIGHT
from £7.77
from £7.77
# 003
MPN: 87560500
12V 5W BULB
from £0.89
from £0.89
# 004
MPN: 122600060
NUT
# 005
MPN: 136110066
WASHER
# 006
MPN: 87560500
12V 5W BULB
from £0.89
from £0.89
# 007
MPN: 363100111
NUMBER PLATE LIGHT
from £6.79
from £6.79
# 008
MPN: 119129130
SCREW
from £0.47
from £0.47
# 009
MPN: 373100138
REAR LH TAILLIGHT ASSY
from £305.15
from £305.15
# 010
-
BULB HOLDER
# 011
-
12V 5W BULB
# 012
-
BULB HOLDER
# 013
-
YELLOW 12V 21W BULB
# 014
-
TWO-LIGHT 12V 21-5W BULB
# 015
-
SEAL
# 016
-
TWO-LIGHT BULB HOLDER
# 017
MPN: 373100137
REAR RH TAILLIGHT ASSY
from £178.38
from £178.38
# 018
MPN: 119142220
SCREW
# 019
MPN: 119929320
SCREW
from £1.09
from £1.09
# 020
MPN: 373100132
CENTRE STOP LIGHT
from £10.16
from £10.16
