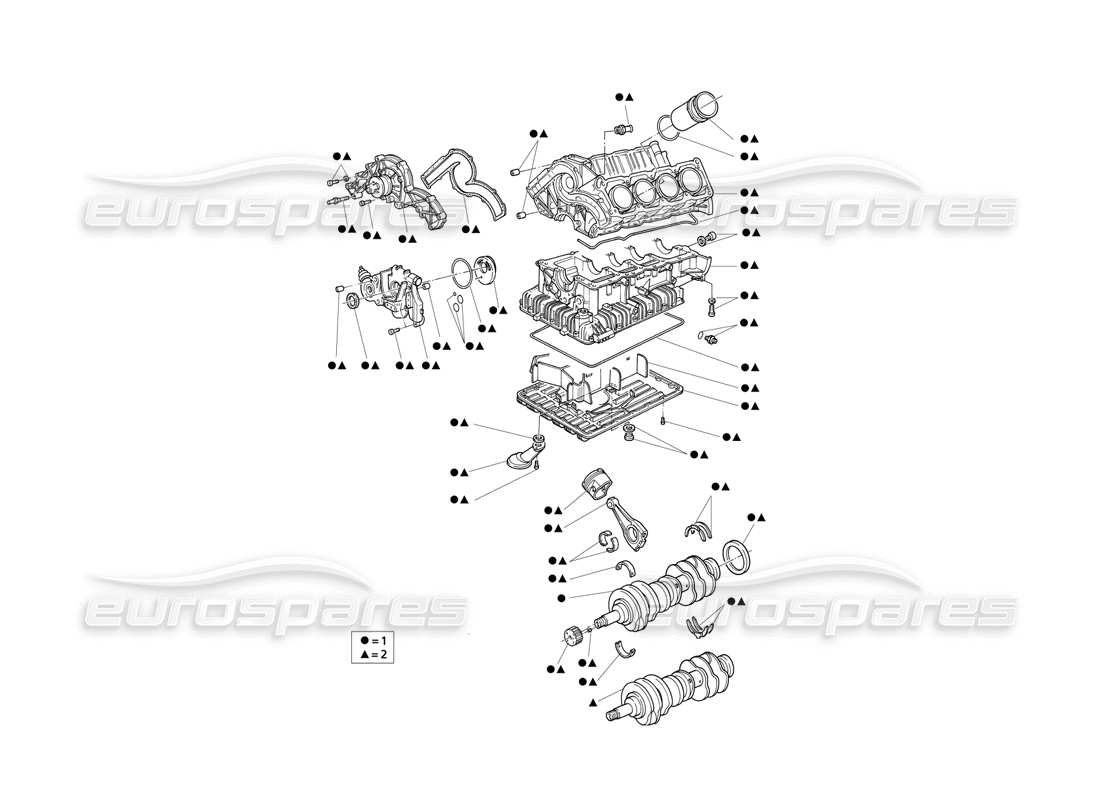

Maserati QTP V8 Evoluzione Partial Engine Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Price
                          # 001
                          MPN: 578942201
                          CYLINDER BLOCK ASSY
                          from £2,717.54
                          from £2,717.54
                          This part replaces part number 585942200
                          # 001
                          MPN: 980001000
                          Short Engine
                          - Valid for M.T. version
                          # 002
                          MPN: 479010100
                          LINER
                          from £212.27
                          from £212.27
                          # 003
                          MPN: 394250103
                          LH ENGINE SUPPORT
                          from £17.43
                          from £17.43
                          # 004
                          MPN: 394250104
                          RH ENGINE SUPPORT
                          from £19.12
                          from £19.12
                          # 005
                          MPN: 134700105
                          WASHER
                          from £1.07
                          from £1.07
                          # 006
                          MPN: 14496601
                          FLAT WASHER
                          Supersession
                          Supersession
                          # 007
                          MPN: 11106224
                          SCREW
                          from £1.54
                          from £1.54
                          # 008
                          MPN: 479010900
                          engine oil sump
                          from £72.91
                          from £72.91
                          # 009
                          MPN: 585011000
                          OIL SUMP PLATE
                          from £12.62
                          from £12.62
                          # 010
                          MPN: 479013401
                          OIL SCOOP
                          from £10.11
                          from £10.11
                          This part replaces part number 391850110 - and 1 more. Click to view details
                          # 011
                          MPN: 310420303
                          OIL SUMP DRAIN PLUG
                          from £2.31
                          from £2.31
                          # 012
                          MPN: 14433121
                          ALLEN SCREW
                          from £1.17
                          from £1.17
                          # 013
                          MPN: 14432274
                          ALLEN SCREW
                          from £1.07
                          from £1.07
