maserati qtp v8 evoluzione engine block and oil sump parts diagram

003.1 - engine block and oil sump

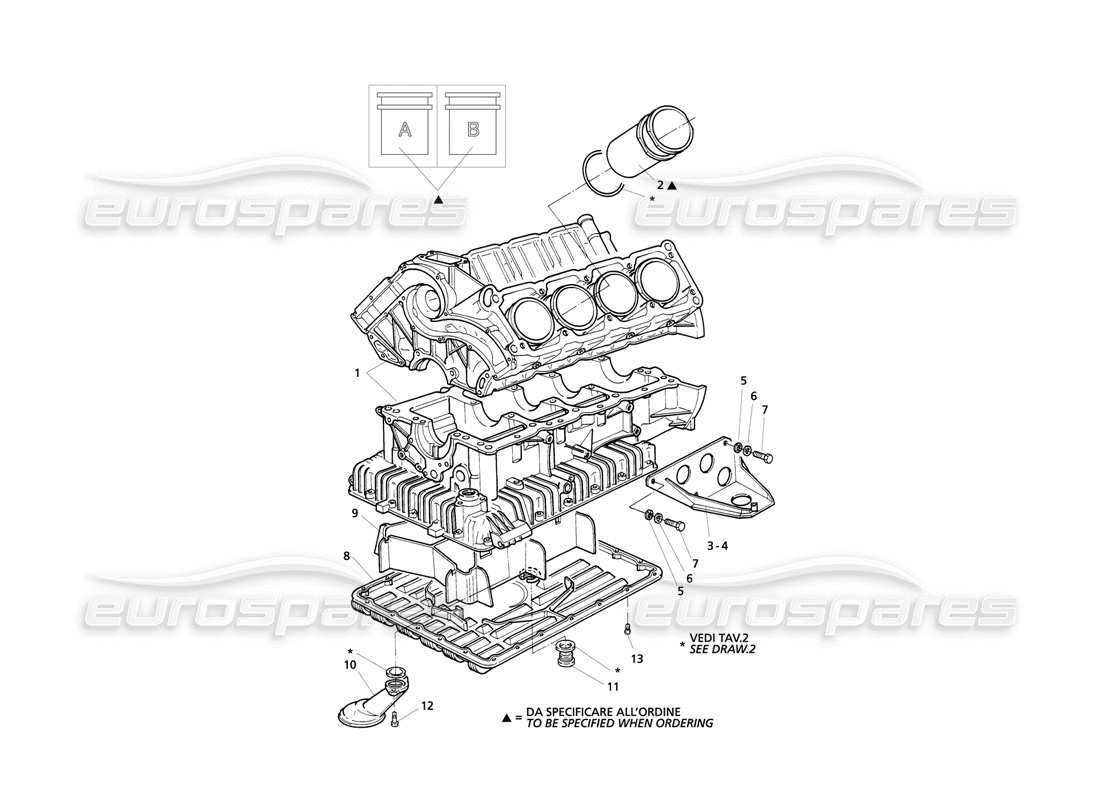

Maserati QTP V8 Evoluzione Engine Block and Oil Sump Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                            #
                            Part number
                            Description
                            Price
                            # 001
                            MPN: 578942201
                            CYLINDER BLOCK ASSY
                            from £2,813.10
                            from £2,813.10
                            This part replaces part number 585942200
                            # 002
                            MPN: 479010100
                            LINER
                            from £219.74
                            from £219.74
                            # 003
                            MPN: 394250103
                            LH ENGINE SUPPORT
                            from £18.05
                            from £18.05
                            # 004
                            MPN: 394250104
                            RH ENGINE SUPPORT
                            from £19.79
                            from £19.79
                            # 005
                            MPN: 134700105
                            WASHER
                            from £1.11
                            from £1.11
                            # 006
                            MPN: 14496601
                            FLAT WASHER
                            Supersession
                            Supersession
                            # 007
                            MPN: 11106224
                            SCREW
                            from £1.60
                            from £1.60
                            # 008
                            MPN: 479010900
                            engine oil sump
                            from £75.47
                            from £75.47
                            # 009
                            MPN: 585011000
                            OIL SUMP PLATE
                            from £13.06
                            from £13.06
                            # 010
                            MPN: 479013401
                            OIL SCOOP
                            from £10.47
                            from £10.47
                            This part replaces part number 391850110 - and 1 more. Click to view details
                            # 011
                            MPN: 310420303
                            OIL SUMP DRAIN PLUG
                            from £2.40
                            from £2.40
                            # 012
                            MPN: 14433121
                            ALLEN SCREW
                            from £1.21
                            from £1.21
                            # 013
                            MPN: 14432274
                            ALLEN SCREW
                            from £1.11
                            from £1.11
