maserati qtp v8 evoluzione oil pump and water pump parts diagram

010 - oil pump and water pump

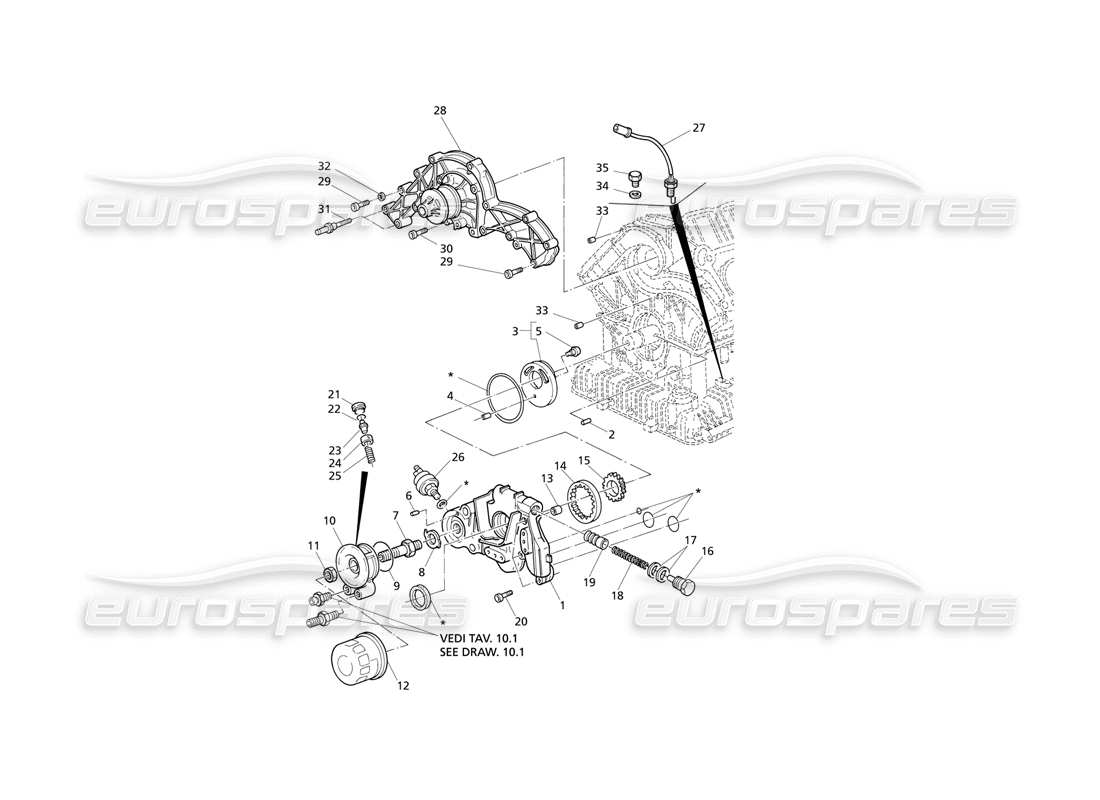

Maserati QTP V8 Evoluzione Oil Pump and Water Pump Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                        #
                                                                        Part number
                                                                        Description
                                                                        Price
                                                                        # 001
                                                                        MPN: 479040102
                                                                        oil pump
                                                                        from £153.16
                                                                        from £153.16
                                                                        This part replaces part number 479040101 - and 2 more. Click to view details
                                                                        # 002
                                                                        MPN: 97054
                                                                        ROLLER
                                                                        from £0.70
                                                                        from £0.70
                                                                        # 003
                                                                        MPN: 571982100
                                                                        COMPLETE PUMP COVER
                                                                        from £72.94
                                                                        from £72.94
                                                                        This part replaces part number 311820321
                                                                        # 004
                                                                        MPN: 311820315
                                                                        CENTRING ROLLER
                                                                        from £1.16
                                                                        from £1.16
                                                                        # 005
                                                                        MPN: 501047800
                                                                        PIN
                                                                        from £33.76
                                                                        from £33.76
                                                                        # 006
                                                                        MPN: 314020329
                                                                        CENTRING ROLLER
                                                                        from £2.09
                                                                        from £2.09
                                                                        # 007
                                                                        MPN: 585041300
                                                                        PIN
                                                                        from £29.41
                                                                        from £29.41
                                                                        # 008
                                                                        MPN: 97730
                                                                        WASHER
                                                                        from £4.12
                                                                        from £4.12
                                                                        # 009
                                                                        MPN: 14464981
                                                                        RUBBER
                                                                        from £3.65
                                                                        from £3.65
                                                                        # 010
                                                                        MPN: 585041200

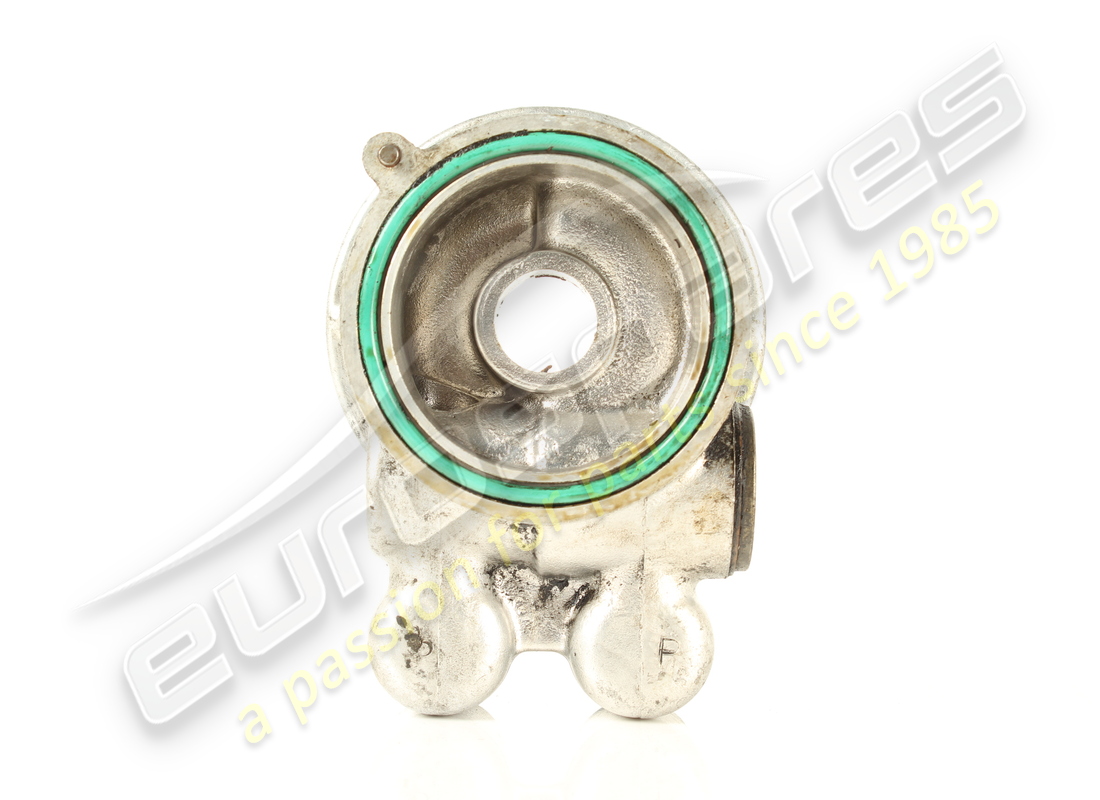

                                                                        OIL FILTER HOUSING
                                                                        from £56.17
                                                                        from £56.17
                                                                        # 011
                                                                        MPN: 10717610
                                                                        NUT
                                                                        from £0.78
                                                                        from £0.78
                                                                        # 012
                                                                        MPN: 479040900
                                                                        OIL FILTER
                                                                        from £12.11
                                                                        from £12.11
                                                                        # 013
                                                                        MPN: 311820309
                                                                        DOWEL
                                                                        from £16.76
                                                                        from £16.76
                                                                        # 014
                                                                        MPN: 479040500
                                                                        DRIVEN GEAR
                                                                        from £48.05
                                                                        from £48.05
                                                                        # 015
                                                                        MPN: 479040400
                                                                        DRIVING GEAR
                                                                        from £27.35
                                                                        from £27.35
                                                                        # 016
                                                                        MPN: 452045001
                                                                        PLUG
                                                                        from £8.28
                                                                        from £8.28
                                                                        This part replaces part number 452044901
                                                                        # 017
                                                                        MPN: 311820317
                                                                        GASKET
                                                                        from £0.70
                                                                        from £0.70
                                                                        # 018
                                                                        MPN: 452048601
                                                                        SPRING
                                                                        from £1.77
                                                                        from £1.77
                                                                        # 019
                                                                        MPN: 311820319
                                                                        PRESSURE RELIEF VALVE
                                                                        from £12.24
                                                                        from £12.24
                                                                        # 020
                                                                        MPN: 14306521
                                                                        SCREW
                                                                        Supersession
                                                                        Supersession
                                                                        # 021
                                                                        MPN: 571044400
                                                                        PLUG
                                                                        from £8.69
                                                                        from £8.69
                                                                        # 022
                                                                        MPN: 571044500
                                                                        GASKET
                                                                        from £1.94
                                                                        from £1.94
                                                                        # 023
                                                                        MPN: 571044100
                                                                        BULB
                                                                        from £13.66
                                                                        from £13.66
                                                                        # 024
                                                                        MPN: 571044200
                                                                        VALVE
                                                                        from £6.16
                                                                        from £6.16
                                                                        # 025
                                                                        MPN: 571044600
                                                                        SPRING
                                                                        from £1.41
                                                                        from £1.41
                                                                        # 026
                                                                        MPN: 183452
                                                                        PRESSION OIL SENSOR
                                                                        from £159.63
                                                                        from £159.63
                                                                        This part replaces part number 585043300
                                                                        # 027
                                                                        MPN: 479043400
                                                                        LEVEL OIL SENSOR
                                                                        from £44.07
                                                                        from £44.07
                                                                        # 028
                                                                        MPN: 578045900
                                                                        WATER PUMP ASSY + GASKET
                                                                        from £624.75
                                                                        from £624.75
                                                                        This part replaces part number 479045900
                                                                        # 029
                                                                        MPN: 14305621
                                                                        SCREW
                                                                        from £0.71
                                                                        from £0.71
                                                                        # 031
                                                                        MPN: 479045100
                                                                        STUD
                                                                        from £95.21
                                                                        from £95.21
                                                                        # 032
                                                                        MPN: 97042
                                                                        COPPER GASKET
                                                                        from £0.78
                                                                        from £0.78
                                                                        # 033
                                                                        MPN: 314020329
                                                                        CENTRING ROLLER
                                                                        from £1.94
                                                                        from £1.94
                                                                        # 034
                                                                        MPN: 312220404
                                                                        COPPER GASKET
                                                                        from £0.70
                                                                        from £0.70
                                                                        # 035
                                                                        MPN: 98138
                                                                        SCREW
                                                                        from £2.49
                                                                        from £2.49
