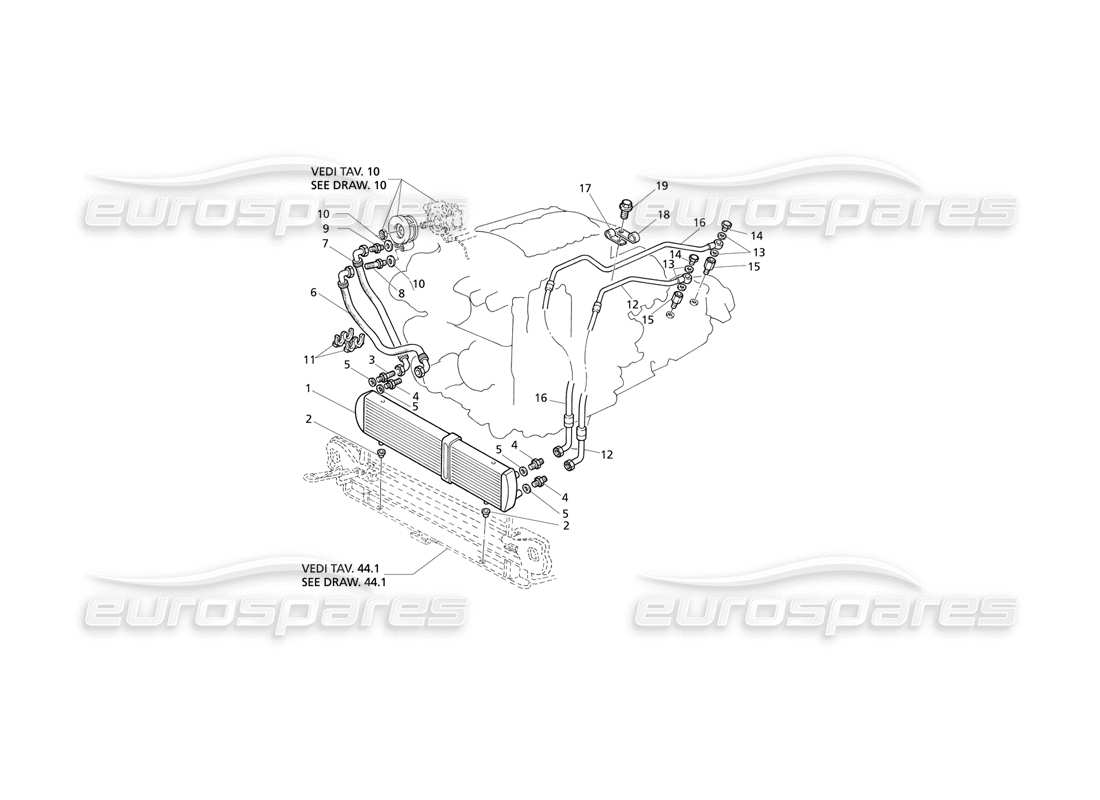

010.2 - Engine Oil Cooling - A.T.

Maserati QTP V8 Evoluzione Engine Oil Cooling - A.T. Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 382805109
RADIATOR
- Valid for A.T. version
from £367.50
from £367.50
This part replaces part number 372881109 - and 2 more. Click to view details
# 002
MPN: 189453
BUSH
Valid for A.T. Version
from £1.08
from £1.08
This part replaces part number 374030312
# 002
MPN: 189453
BUSH
-(Valid for A.T. Version)
from £1.08
from £1.08
This part replaces part number 374030312
# 003
MPN: 181528
UNION
- Valid for A.T. version
from £42.84
from £42.84
# 004
MPN: 181527
UNION
- Valid for A.T. version
from £45.31
from £45.31
# 005
MPN: 181534
GASKET
- Valid for A.T. version
from £2.78
from £2.78
# 006
MPN: 372890110
DELIVERY TUBE
- Valid for A.T. version
from £190.14
from £190.14
# 007
MPN: 372890114
RETURN TUBE
- Valid for A.T. version
from £212.87
from £212.87
# 008
MPN: 578045300
UNION
- Valid for A.T. version
from £11.86
from £11.86
# 009
MPN: 372830306
UNION
- Valid for A.T. version
from £7.48
from £7.48
# 010
MPN: 97762
GASKET
- Valid for A.T. version
from £4.17
from £4.17
# 011
MPN: 98053
CLAMP
- Valid for A.T. version
from £1.08
from £1.08
# 012
MPN: 371891108
RETURN TUBE
See also 371893108
Supersession
Supersession
# 012
MPN: 371893108
RETURN TUBE
- Valid for A.T. version
from £106.00
from £106.00
This part replaces part number 371891108 - and 1 more. Click to view details
# 013
MPN: 311855316
GASKET
- Valid for A.T. version
from £1.93
from £1.93
# 014
MPN: 311855343
UNION SCREW
- Valid for A.T. version
from £4.23
from £4.23
# 015
MPN: 371831345
UNION
- Valid for A.T. version
from £42.00
from £42.00
# 016
MPN: 371891109
DELIVERY TUBE
See also 371893109
Supersession
Supersession
# 016
MPN: 371893109
DELIVERY TUBE
- Valid for A.T. version
from £117.27
from £117.27
This part replaces part number 371891109 - and 1 more. Click to view details
# 017
MPN: 312020433
CLAMP
- Valid for A.T. version
from £1.74
from £1.74
# 018
MPN: 312020432
CLAMP
- Valid for A.T. version
from £1.93
from £1.93
# 019
MPN: 317720355
SCREW
- Valid for A.T. version
Supersession
Supersession
