maserati qtp v8 evoluzione vacuum system (rh drive) parts diagram

011.1 - Vacuum System (RH Drive)

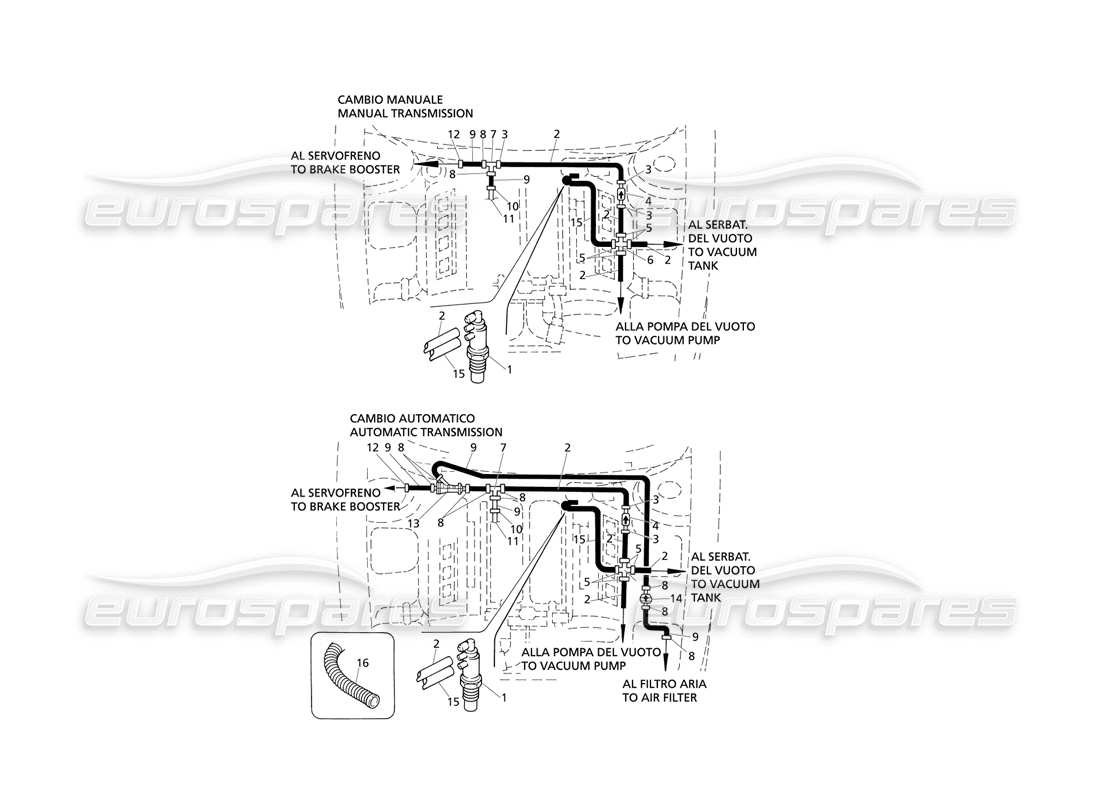

Maserati QTP V8 Evoluzione Vacuum System (R.H. Drive) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                  #
                  Part number
                  Description
                  Price
                  # 003
                  MPN: 312050310
                  CLAMP
                  from £1.08
                  from £1.08
                  # 004
                  MPN: 315520169
                  CHECK VALVE
                  from £7.01
                  from £7.01
                  # 005
                  MPN: 13121170
                  CLAMP
                  Supersession
                  Supersession
                  # 006
                  MPN: 312030422
                  UNION
                  from £0.99
                  from £0.99
                  # 007
                  MPN: 578006700
                  T UNION
                  from £10.20
                  from £10.20
                  # 008
                  MPN: 377492352
                  CLAMP
                  - Valid for M.T. version
                  from £1.55
                  from £1.55
                  This part replaces part number 377491352
                  # 008
                  MPN: 377492352
                  CLAMP
                  - Valid for A.T. version
                  from £1.55
                  from £1.55
                  This part replaces part number 377491352
                  # 009
                  MPN: 19057089
                  RUBBER HOSE
                  - Section In meters - order minimum amount of 1 m or multiples
                  from £12.67
                  from £12.67
                  This part replaces part number 317832385
                  # 010
                  MPN: 10187090
                  CLAMP
                  from £2.33
                  from £2.33
                  # 011
                  MPN: 479008900
                  UNION
                  from £21.01
                  from £21.01
                  # 012
                  MPN: 377492352
                  CLAMP
                  from £1.55
                  from £1.55
                  This part replaces part number 377491352
                  # 013
                  MPN: 377493347
                  KAISER VALVE
                  - Valid for A.T. version
                  from £164.18
                  from £164.18
                  # 014
                  MPN: 377490107
                  CHECK VALVE
                  - Valid for A.T. version
                  from £6.22
                  from £6.22
                  # 015
                  MPN: 300100803
                  RUBBER HOSE
                  - Section In meters - order minimum amount of 1 m or multiples
                  from £55.18
                  from £55.18
                  This part replaces part number 318720329
                  # 016
                  MPN: 328751332
                  CORRUGATED TUBE
                  - Section In meters - order minimum amount of 1 m or multiples
                  from £1.90
                  from £1.90
                  This part replaces part number 585540600
