012.2 - turboblowers lubrication

Maserati QTP V8 Evoluzione Turboblowers Lubrication Parts Diagram

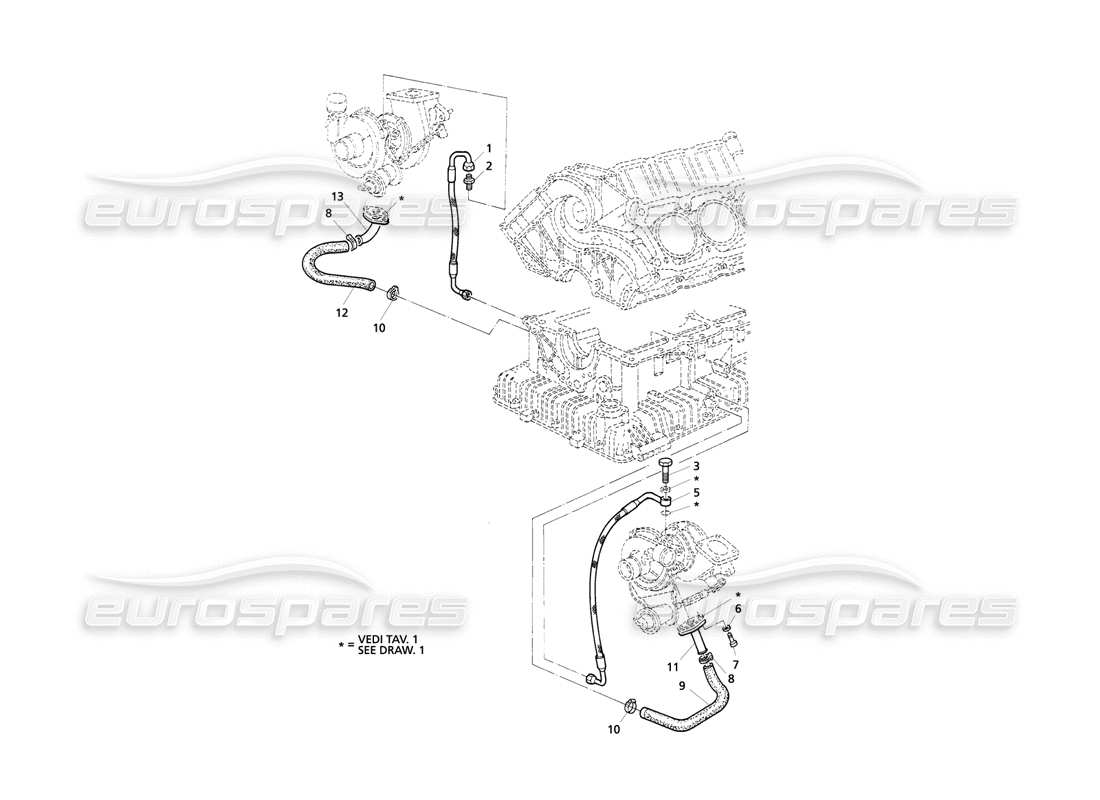

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Price
                          # 001
                          MPN: 479949203
                          RH OIL TO TURBO DELIVERY PIPE
                          from £61.13
                          from £61.13
                          # 002
                          MPN: 479369900
                          UNION
                          from £3.91
                          from £3.91
                          # 003
                          MPN: 578363700
                          UNION SCREW
                          from £13.10
                          from £13.10
                          # 005
                          MPN: 578949100
                          LH OIL TO TURBO DELIVERY PIPE
                          from £93.50
                          from £93.50
                          # 006
                          MPN: 12604279
                          SPRING WASHER
                          from £0.53
                          from £0.53
                          # 007
                          MPN: 14305721
                          SCREW
                          from £1.35
                          from £1.35
                          # 008
                          MPN: 312020410
                          CLAMP
                          from £2.09
                          from £2.09
                          # 009
                          MPN: 452364402
                          LH TURBO OIL DRAINAGE SLEEVE
                          from £67.50
                          from £67.50
                          This part replaces part number 312020105
                          # 010
                          MPN: 77520
                          CLAMP
                          from £2.31
                          from £2.31
                          # 011
                          MPN: 467364100
                          LH TURBO OIL OUTLET CONNECTOR
                          from £19.45
                          from £19.45
                          # 012
                          MPN: 467364300
                          RH TURBO OIL DRAINAGE SLEEVE
                          from £57.84
                          from £57.84
                          This part replaces part number 312020408
                          # 013
                          MPN: 578366800
                          RH TURBO OIL OUTLET CONNECTION
                          from £15.11
                          from £15.11
