![maserati qtp v8 evoluzione oil vapour recovery parts diagram](/img/CxIAAMS6OW5_HdGyNOw5eU-iVJUhGoUGua6nueL7BQuqTjgSc6ONHQM%3D/maserati-qtp-v8-evoluzione-part-diagram-014.1.webp)

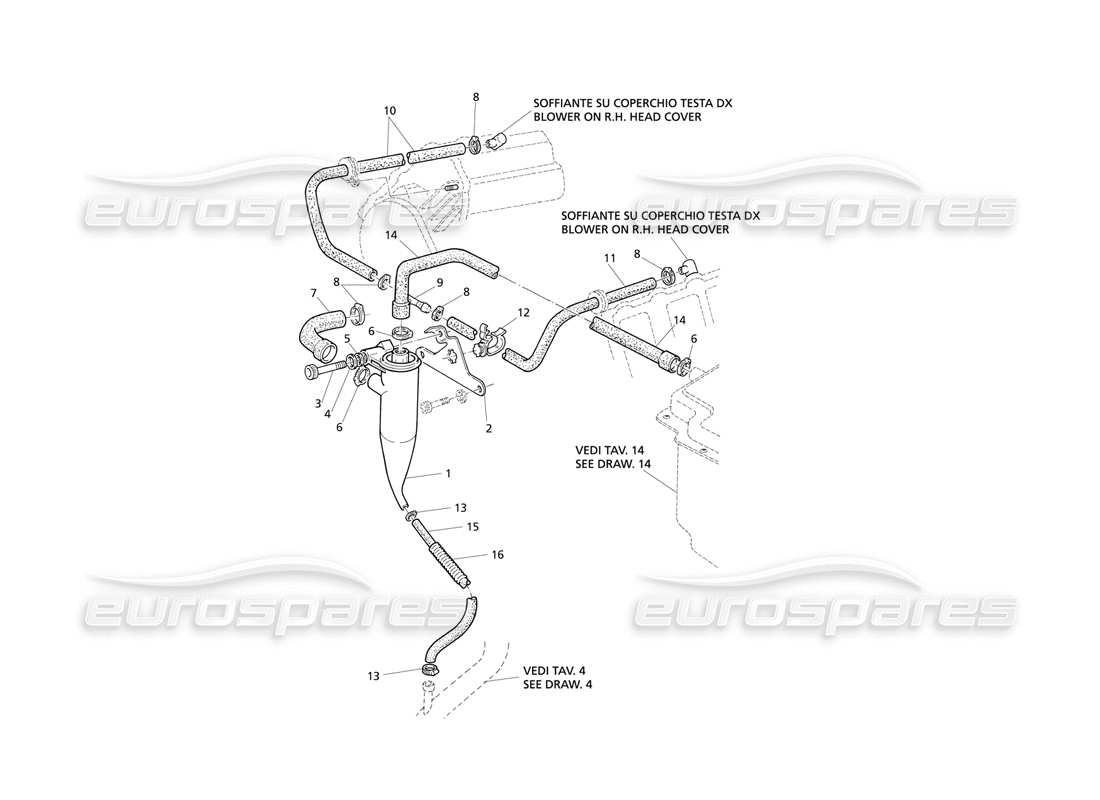

014.1 - Oil Vapour Recovery
Maserati QTP V8 Evoluzione Oil Vapour Recovery Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 372431100
oil separator
from £37.53
from £37.53
# 002
MPN: 372431300
SEPARATOR SUPPORT
from £5.31
from £5.31
# 003
MPN: 14306921
ALLEN SCREW
from £0.71
from £0.71
# 004
MPN: 10571779
SPLIT WASHER
from £0.47
from £0.47
# 005
MPN: 312225445
FLAT WASHER
from £0.78
from £0.78
# 006
MPN: 186402028
CLAMP
from £1.56
from £1.56
# 007
MPN: 372430308
TUBE
from £6.60
from £6.60
# 008
MPN: 312030442
SNAP CLAMP
Supersession
Supersession
# 009
MPN: 97594
T UNION
from £2.34
from £2.34
# 010
MPN: 372430304
RH TUBE
from £6.25
from £6.25
# 011
MPN: 372430305
LH TUBE
from £5.96
from £5.96
# 012
MPN: 98061
LH TUBE SUPPORT
Supersession
Supersession
# 013
MPN: 13000390
CLAMP
from £0.47
from £0.47
This part replaces part number 13121170 - and 1 more. Click to view details
# 014
MPN: 372430309
SLEEVE
from £32.32
from £32.32
# 015
MPN: 19057089
OIL DRAINAGE TUBE
- Section in meters - order minimum amount of 1 m
from £12.72
from £12.72
This part replaces part number 317832385
# 016
MPN: 318720333
CORRUGATED TUBE
- Section in meters - order minimum amount of 1 m
from £5.19
from £5.19
