015 - Heat Exchanger Pipes LH Side

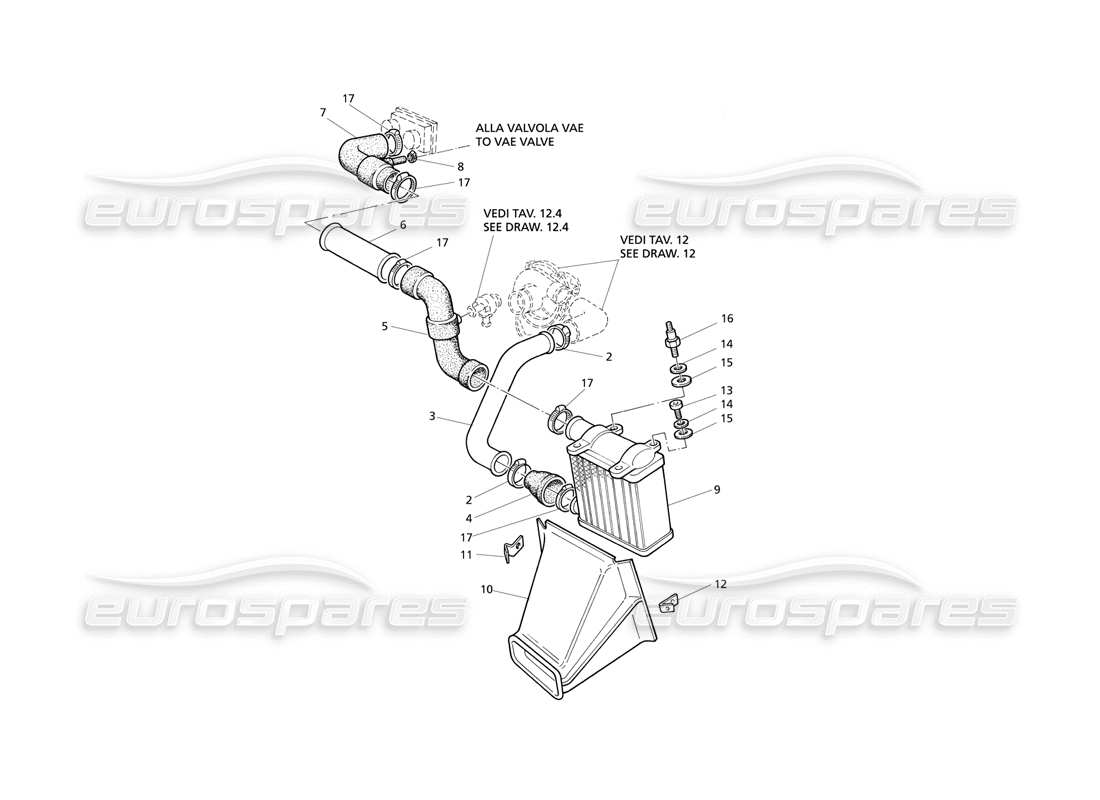

Maserati QTP V8 Evoluzione Heat Exchanger Pipes L.H. Side Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                    #
                                    Part number
                                    Description
                                    Key
                                    Price
                                    # 001
                                    MPN: 578363800
                                    SLEEVE
                                    from £157.94
                                    from £157.94
                                    This part replaces part number 322460310 - and 1 more. Click to view details
                                    SLEEVE FROM TURBO TO INTERCOOLER Genuine Maserati Part - New (to order)
                                    SLEEVE FROM TURBO TO INTERCOOLER Genuine Maserati Part - Used In stock
                                    # 002
                                    MPN: 13000790
                                    CLAMP 40X60
                                    from £0.53
                                    from £0.53
                                    This part replaces part number 312420106
                                    SCREW COLLAR Genuine Maserati Part - New In stock
                                    SCREW COLLAR Genuine Ferrari Part - New In stock
                                    # 003
                                    MPN: 372090475
                                    METAL PIPE
                                    from £25.70
                                    from £25.70
                                    LH AIR DELIVERY PIPE Genuine Maserati Part - New (to order)
                                    LH AIR DELIVERY PIPE Genuine Maserati Part - Used In stock
                                    # 004
                                    MPN: 372090477
                                    SLEEVE
                                    from £60.09
                                    from £60.09
                                    MANIC.DA TUBO METALLICO ALL' Genuine Maserati Part - New (to order)
                                    MANIC.DA TUBO METALLICO ALL' Genuine Maserati Part - Used In stock
                                    # 005
                                    MPN: 372090479
                                    RUBBER HOSE
                                    from £78.33
                                    from £78.33
                                    RUBBER SLEEVE FOR INTERCOOLER Genuine Maserati Part - New (to order)
                                    # 006
                                    MPN: 372090478
                                    METAL PIPE
                                    from £5.63
                                    from £5.63
                                    HOSE Genuine Maserati Part - New (to order)
                                    HOSE Genuine Maserati Part - Used In stock
                                    # 007
                                    MPN: 372030467
                                    THROTTLE BODY CONNECTING SLEEVE
                                    from £56.20
                                    from £56.20
                                    SLEEVE Genuine Maserati Part - New (to order)
                                    # 008
                                    MPN: 374090387
                                    CLAMP 20X32
                                    Supersession
                                    Supersession
                                    Genuine Maserati Part (no longer available to order)
                                    # 009
                                    MPN: 382000140
                                    HEAT EXCHANGER
                                    from £242.10
                                    from £242.10
                                    This part replaces part number 382000139 - and 1 more. Click to view details
                                    AIR-AIR EXCHANGER Genuine Maserati Part - New (to order)
                                    AIR-AIR EXCHANGER Genuine Maserati Part - Used In stock
                                    # 010
                                    MPN: 372090257
                                    AIR DUCT
                                    from £32.04
                                    from £32.04
                                    LH AIR DUCT Genuine Maserati Part - New (to order)
                                    LH AIR DUCT Genuine Maserati Part - Used In stock
                                    # 011
                                    MPN: 372000610
                                    PLATE
                                    from £2.64
                                    from £2.64
                                    INTERCOOLER PLATE Genuine Maserati Part - New (to order)
                                    # 012
                                    MPN: 372000612
                                    PLATE
                                    from £2.87
                                    from £2.87
                                    INTERCOOLER PLATE Genuine Maserati Part - New (to order)
                                    # 013
                                    MPN: 14306221
                                    ALLEN SCREW
                                    from £1.55
                                    from £1.55
                                    BOLT Genuine Maserati Part - New In stock
                                    Genuine Ferrari Part (no longer available to order)
                                    # 014
                                    MPN: 12601370
                                    SPRING WASHER
                                    from £0.91
                                    from £0.91
                                    CRINKLE RUB.WASHER D.8.40-15X Genuine Maserati Part - New (to order)
                                    Genuine Ferrari Part (no longer available to order)
                                    # 015
                                    MPN: 12645021
                                    FLAT WASHER
                                    from £1.76
                                    from £1.76
                                    WASHER Genuine Maserati Part - New In stock
                                    # 016
                                    MPN: 372490534
                                    M6 M8 STUD
                                    from £19.02
                                    from £19.02
                                    FILTER HOUSING FASTENING SCREW Genuine Maserati Part - New In stock
                                    # 017
                                    MPN: 13000890
                                    CLAMP 50X70
                                    from £0.63
                                    from £0.63
                                    This part replaces part number 312020136
                                    SCREW COLLAR D. 50- 70X9 Genuine Maserati Part - New In stock
                                    CLAMP Genuine Ferrari Part - New In stock
