016 - IGNITION SYSTEM

Maserati QTP V8 Evoluzione Ignition System Parts Diagram

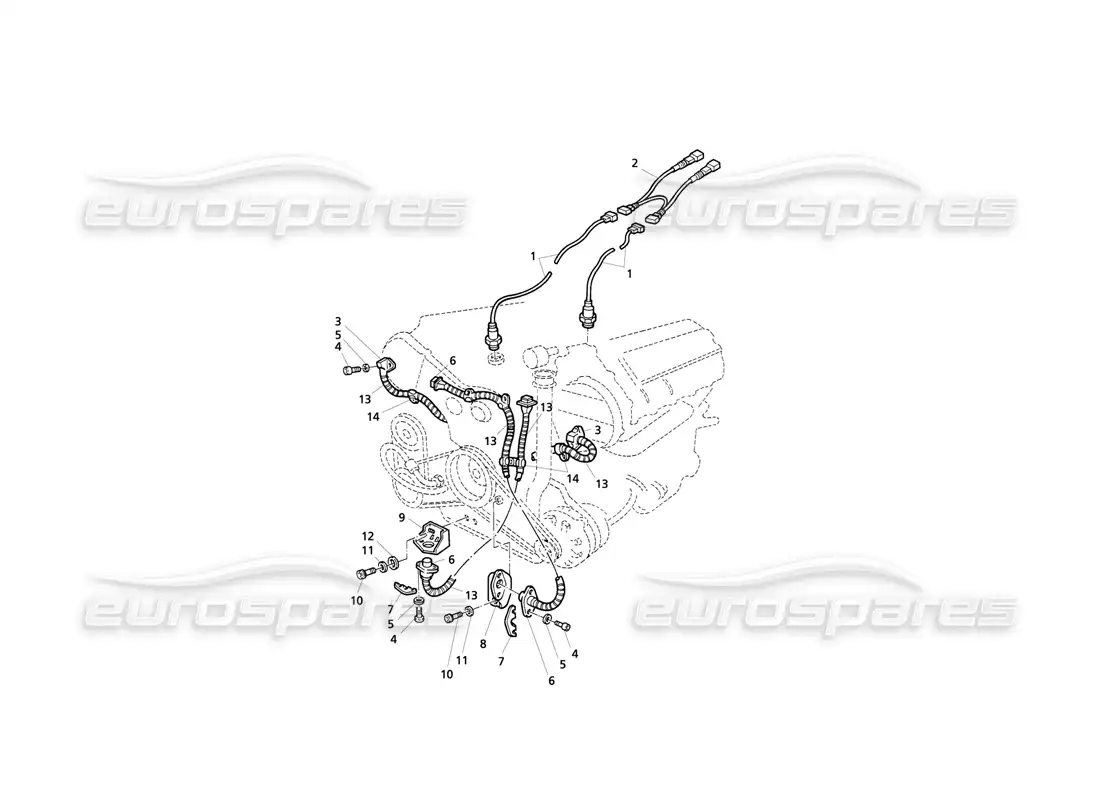

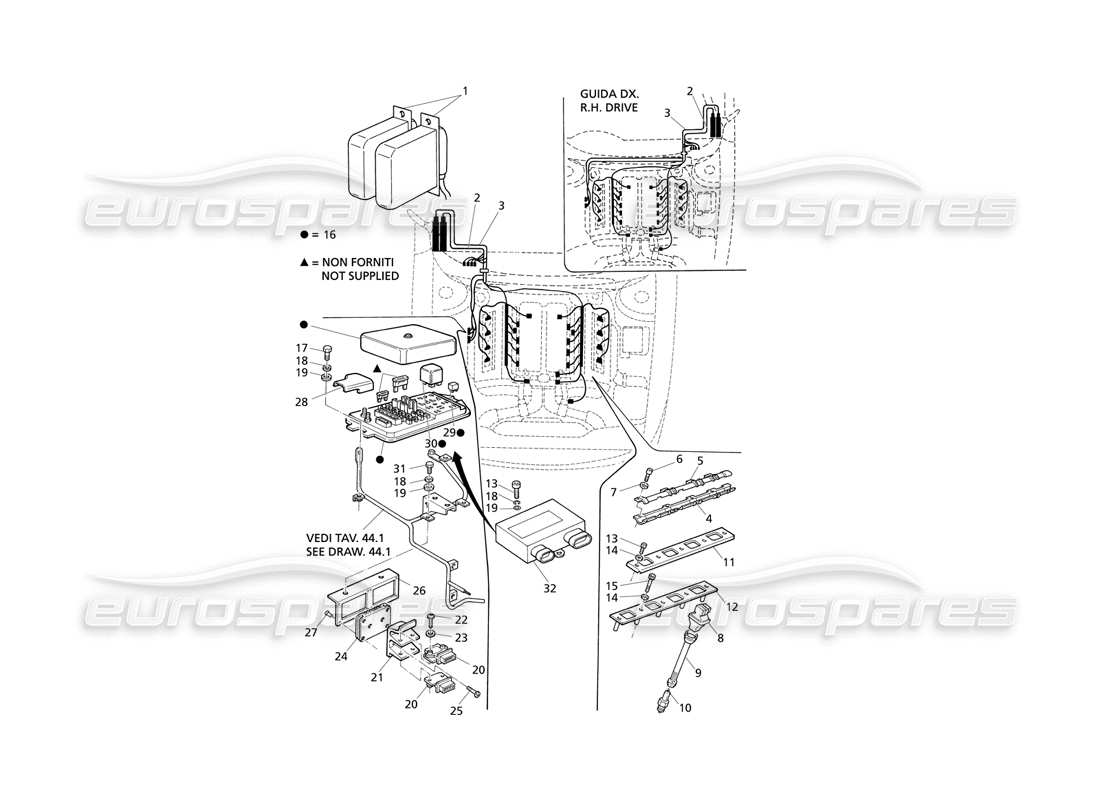

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                          #
                                                          Part number
                                                          Description
                                                          Price
                                                          # 001
                                                          MPN: 373790100

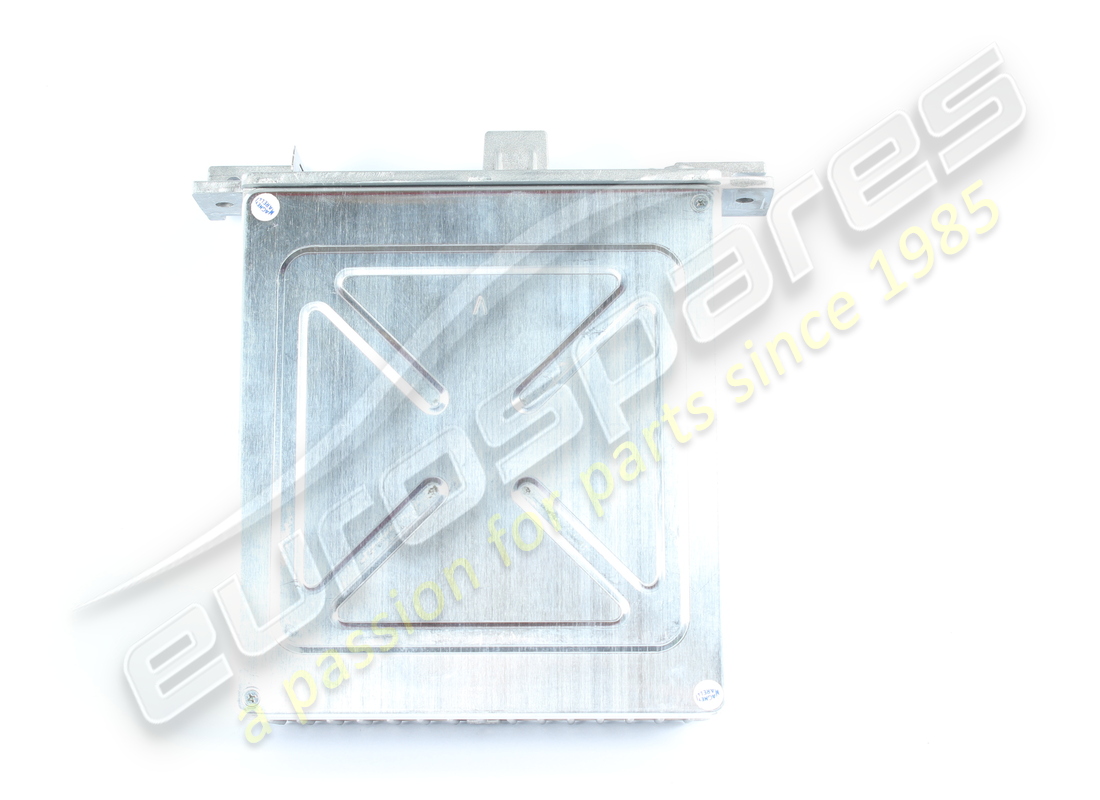

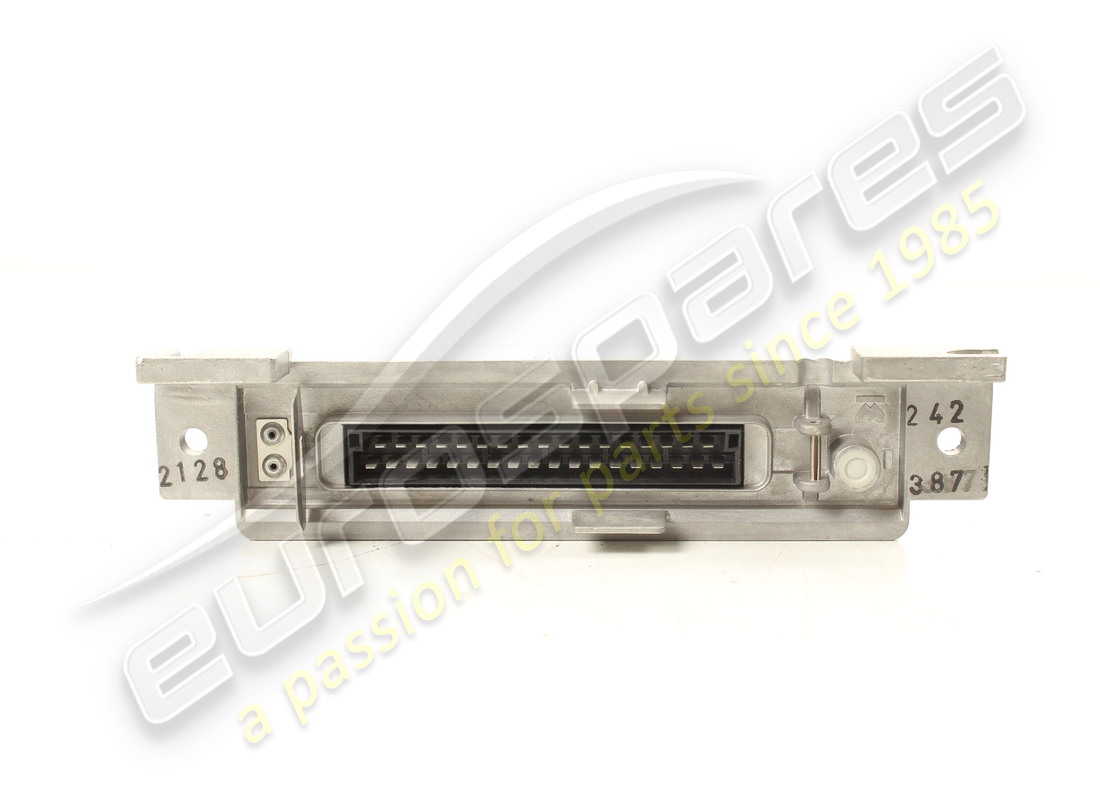

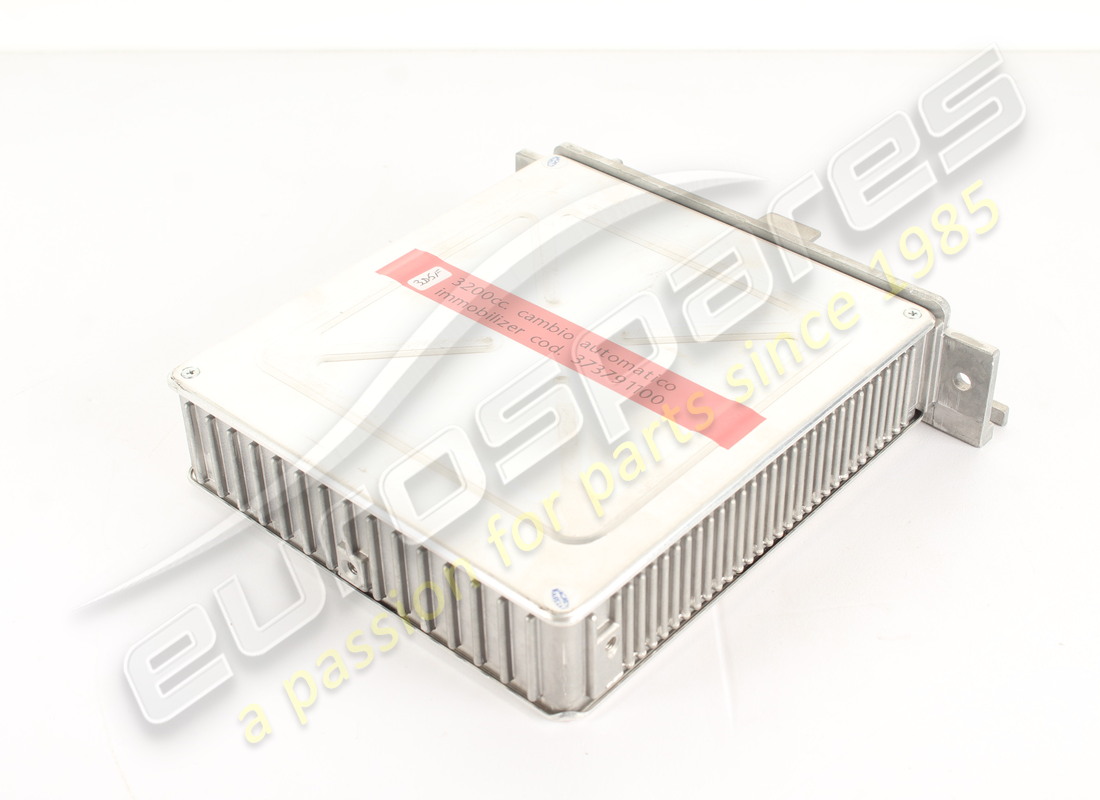

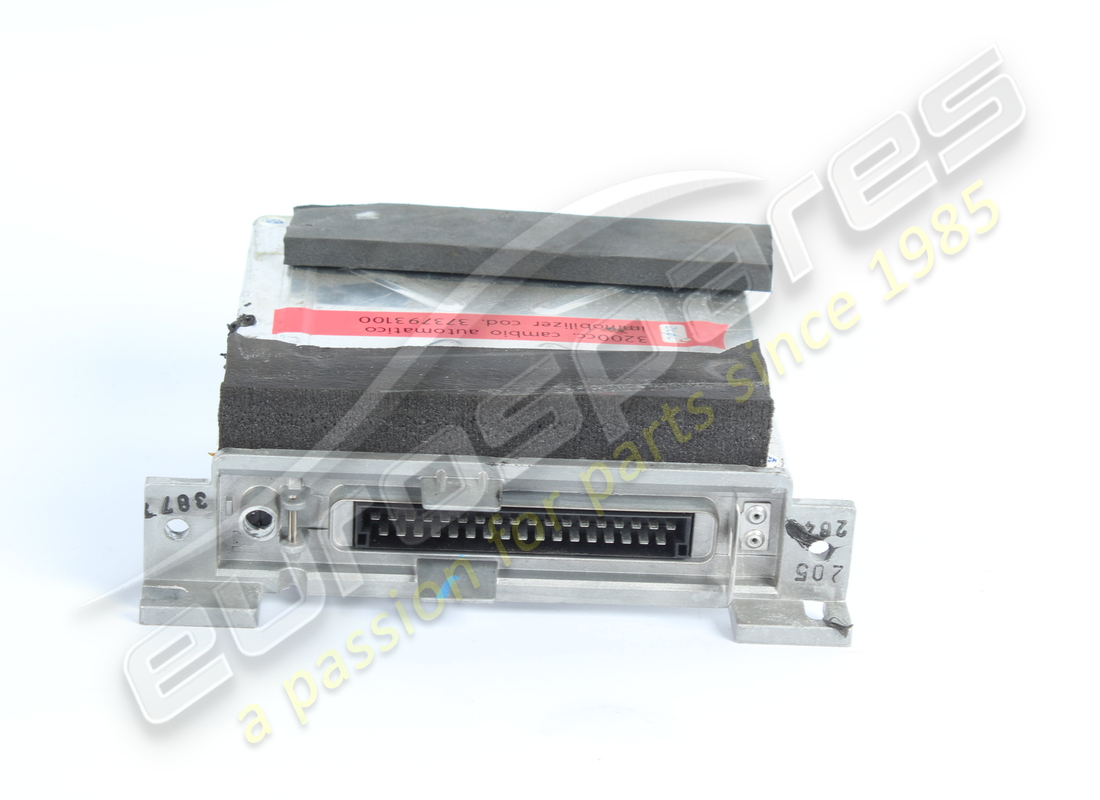

                                                          CONTROL UNIT
                                                          See also 373792100
                                                          from £1,829.10
                                                          from £1,829.10
                                                          # 001
                                                          MPN: 373791100
                                                          CONTROL UNIT
                                                          See also 373793100
                                                          from £1,466.76
                                                          from £1,466.76
                                                          # 001
                                                          MPN: 373792100
                                                          CONTROL UNIT
                                                          - Valid for M.T. version
                                                          from £1,909.66
                                                          from £1,909.66
                                                          This part replaces part number 373790100 which we have in stock
                                                          # 001
                                                          MPN: 373793100
                                                          CONTROL UNIT
                                                          - Valid for A.T. version
                                                          from £783.71
                                                          from £783.71
                                                          This part replaces part number 373791100 which we have in stock - and 1 more. Click to view details
                                                          # 002
                                                          MPN: 373790106
                                                          RH INJECTION WIRING
                                                          - LH drive version
                                                          from £381.24
                                                          from £381.24
                                                          # 002
                                                          MPN: 373796106
                                                          RH INJECTION WIRING
                                                          - RH drive version
                                                          from £381.24
                                                          from £381.24
                                                          # 003
                                                          MPN: 373790105
                                                          LH INJECTION WIRING
                                                          - LH drive version
                                                          from £381.24
                                                          from £381.24
                                                          # 003
                                                          MPN: 373796105
                                                          LH INJECTION WIRING
                                                          - RH drive version
                                                          from £381.24
                                                          from £381.24
                                                          # 004
                                                          MPN: 479061400
                                                          HALF SHELL
                                                          from £1.92
                                                          from £1.92
                                                          # 005
                                                          MPN: 479061300
                                                          HALF SHELL
                                                          from £13.60
                                                          from £13.60
                                                          # 006
                                                          MPN: 14305521
                                                          ALLEN SCREW
                                                          from £0.48
                                                          from £0.48
                                                          # 007
                                                          MPN: 14496400
                                                          WASHER
                                                          from £0.85
                                                          from £0.85
                                                          # 008
                                                          MPN: 571084200
                                                          IGNITION COIL
                                                          from £63.42
                                                          from £63.42
                                                          This part replaces part number 571084201 - and 1 more. Click to view details
                                                          # 009
                                                          MPN: 571085101
                                                          EXTENSION
                                                          from £69.95
                                                          from £69.95
                                                          # 010
                                                          MPN: 192637
                                                          SPARK PLUG
                                                          from £14.50
                                                          from £14.50
                                                          This part replaces part number 168325 which we have in stock - and 1 more. Click to view details
                                                          # 010
                                                          MPN: 192637
                                                          SPARK PLUG
                                                          from £14.50
                                                          from £14.50
                                                          This part replaces part number 168325 which we have in stock - and 1 more. Click to view details
                                                          # 010
                                                          MPN: 192637
                                                          SPARK PLUG
                                                          Replaces 168325
                                                          from £14.50
                                                          from £14.50
                                                          This part replaces part number 168325 which we have in stock - and 1 more. Click to view details
                                                          # 010
                                                          MPN: 98177
                                                          SPARK PLUG (THREAD M10X1)
                                                          not as spare part - use part number: 585088400
                                                          Supersession
                                                          Supersession
                                                          # 011
                                                          MPN: 578982000
                                                          TOP COILS SUPPORT
                                                          from £15.85
                                                          from £15.85
                                                          # 012

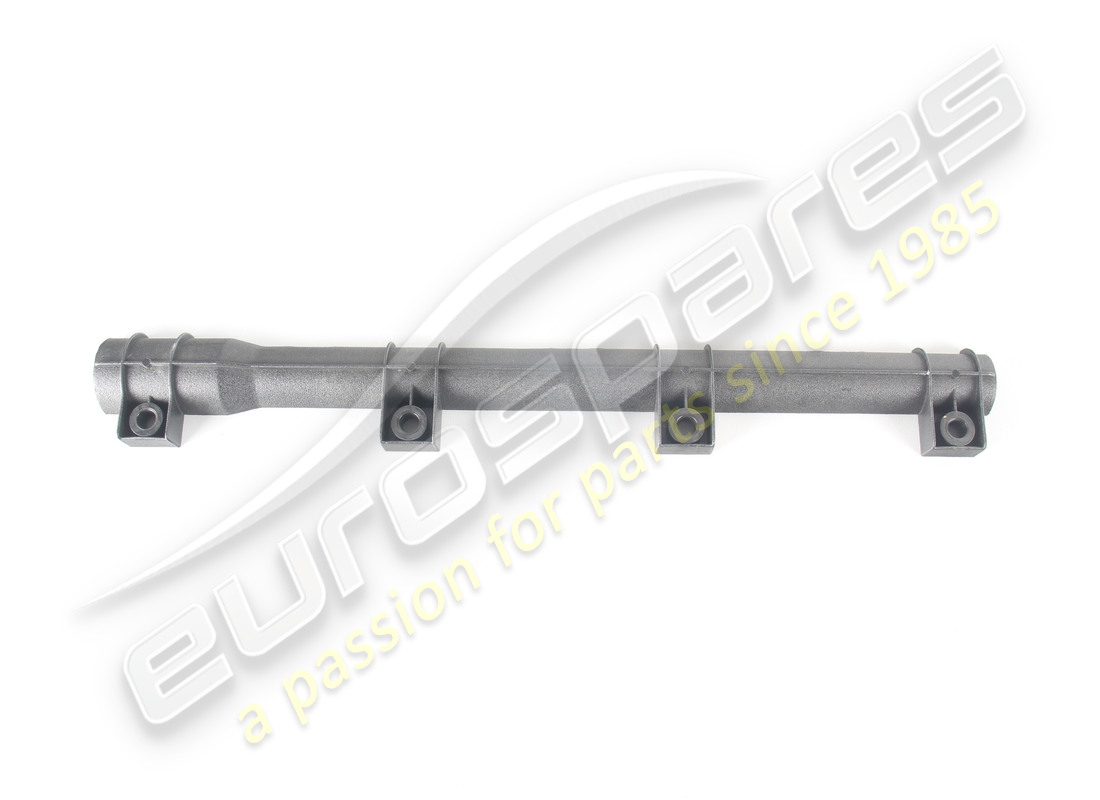

                                                          MPN: 578982700
                                                          BOTTOM COILS SUPPORT
                                                          from £26.25
                                                          from £26.25
                                                          # 013
                                                          MPN: 14305121
                                                          ALLEN SCREW
                                                          from £0.47
                                                          from £0.47
                                                          # 014
                                                          MPN: 12604279
                                                          SPRING WASHER
                                                          from £0.52
                                                          from £0.52
                                                          # 015
                                                          MPN: 14306021
                                                          ALLEN SCREW
                                                          from £0.51
                                                          from £0.51
                                                          # 016
                                                          MPN: 373330178
                                                          CONTROL UNIT
                                                          from £291.67
                                                          from £291.67
                                                          # 017
                                                          MPN: 10902521
                                                          SCREW
                                                          from £0.71
                                                          from £0.71
                                                          # 018
                                                          MPN: 12604279
                                                          SPRING WASHER
                                                          from £0.53
                                                          from £0.53
                                                          # 019
                                                          MPN: 14498801
                                                          FLAT WASHER
                                                          from £0.52
                                                          from £0.52
                                                          # 020
                                                          MPN: 393250107
                                                          POWER MODULE
                                                          from £57.75
                                                          from £57.75
                                                          # 021
                                                          MPN: 393250303
                                                          MODULES SUPPORT
                                                          from £5.99
                                                          from £5.99
                                                          # 022
                                                          MPN: 112804020
                                                          SCREW
                                                          # 023
                                                          MPN: 12601079
                                                          WASHER
                                                          from £0.85
                                                          from £0.85
                                                          # 024
                                                          MPN: 393250302
                                                          HEAT SINK
                                                          from £13.25
                                                          from £13.25
                                                          This part replaces part number 393250106
                                                          # 025
                                                          MPN: 119148220
                                                          SELF THREADING SCREW
                                                          from £1.08
                                                          from £1.08
                                                          # 026
                                                          MPN: 373230119
                                                          SUPPORT
                                                          from £3.72
                                                          from £3.72
                                                          # 027
                                                          MPN: 14643297
                                                          RIVET
                                                          from £0.85
                                                          from £0.85
                                                          # 028
                                                          MPN: 373330308
                                                          GNDING POINTS COVER
                                                          from £1.55
                                                          from £1.55
                                                          # 029
                                                          MPN: 373330139
                                                          20A MICRORELAY
                                                          from £4.02
                                                          from £4.02
                                                          # 030
                                                          MPN: 373330188
                                                          50A RELAY
                                                          Supersession
                                                          Supersession
                                                          # 031
                                                          MPN: 10902221
                                                          SCREW
                                                          from £0.57
                                                          from £0.57
                                                          # 032
                                                          MPN: 373380177
                                                          FAN RELAY BOX
                                                          from £51.75
                                                          from £51.75
                                                          Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
