maserati qtp v8 evoluzione alternator and support parts diagram

017 - Alternator and Support

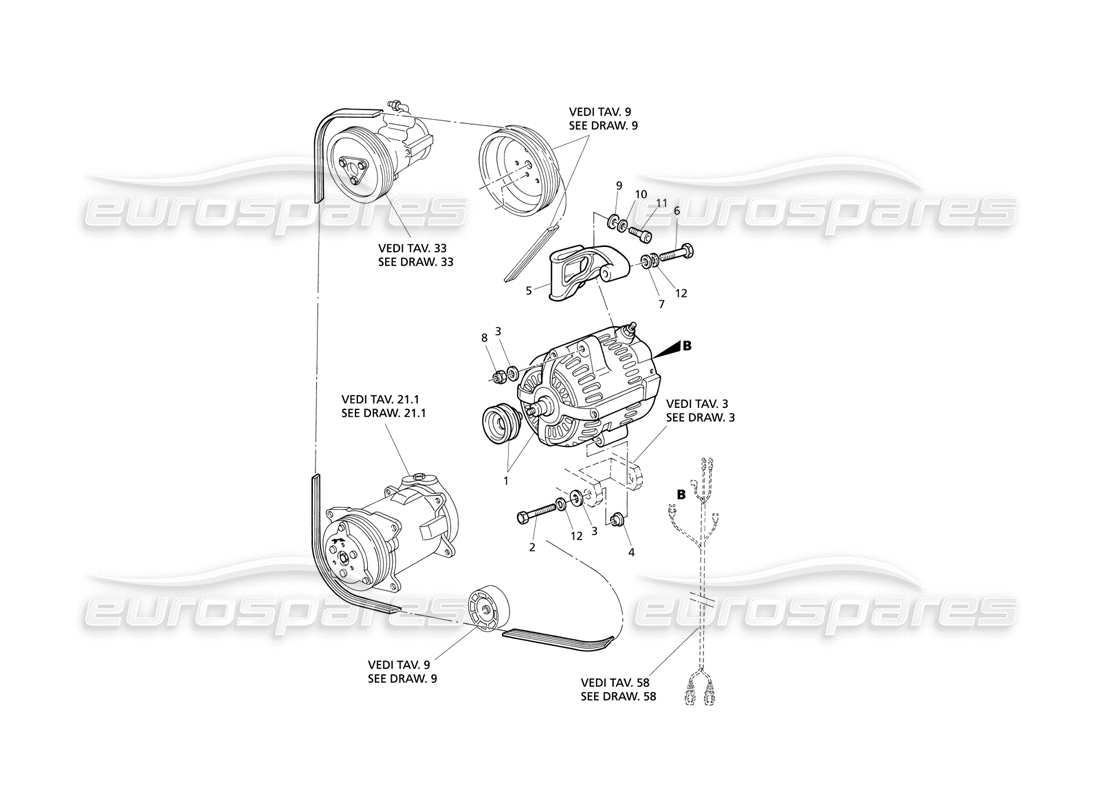

Maserati QTP V8 Evoluzione Alternator and Support Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Price
                          # 001
                          MPN: 578083500
                          COMPLETE ALTERNATOR (L3BH NIPPONDENSO)
                          from £217.09
                          from £217.09
                          # 002
                          MPN: 15215621
                          SCREW
                          from £1.85
                          from £1.85
                          # 003
                          MPN: 452008901
                          FLAT WASHER
                          from £2.15
                          from £2.15
                          # 004
                          MPN: 578080100
                          BUSH
                          from £46.50
                          from £46.50
                          # 006
                          MPN: 14420821
                          SCREW
                          from £1.31
                          from £1.31
                          # 007
                          MPN: 14499501
                          FLAT WASHER
                          from £1.07
                          from £1.07
                          # 008
                          MPN: 12577221
                          NUT
                          from £1.47
                          from £1.47
                          # 009
                          MPN: 312225445
                          FLAT WASHER
                          from £0.76
                          from £0.76
                          # 010
                          MPN: 12604470
                          SPRING WASHER
                          from £0.84
                          from £0.84
                          # 011
                          MPN: 311020320
                          SCREW
                          from £1.31
                          from £1.31
                          # 012
                          MPN: 134700105
                          SPRING WASHER
                          from £1.07
                          from £1.07
