maserati qtp v8 evoluzione radiator and cooling fans parts diagram

020 - radiator and cooling fans

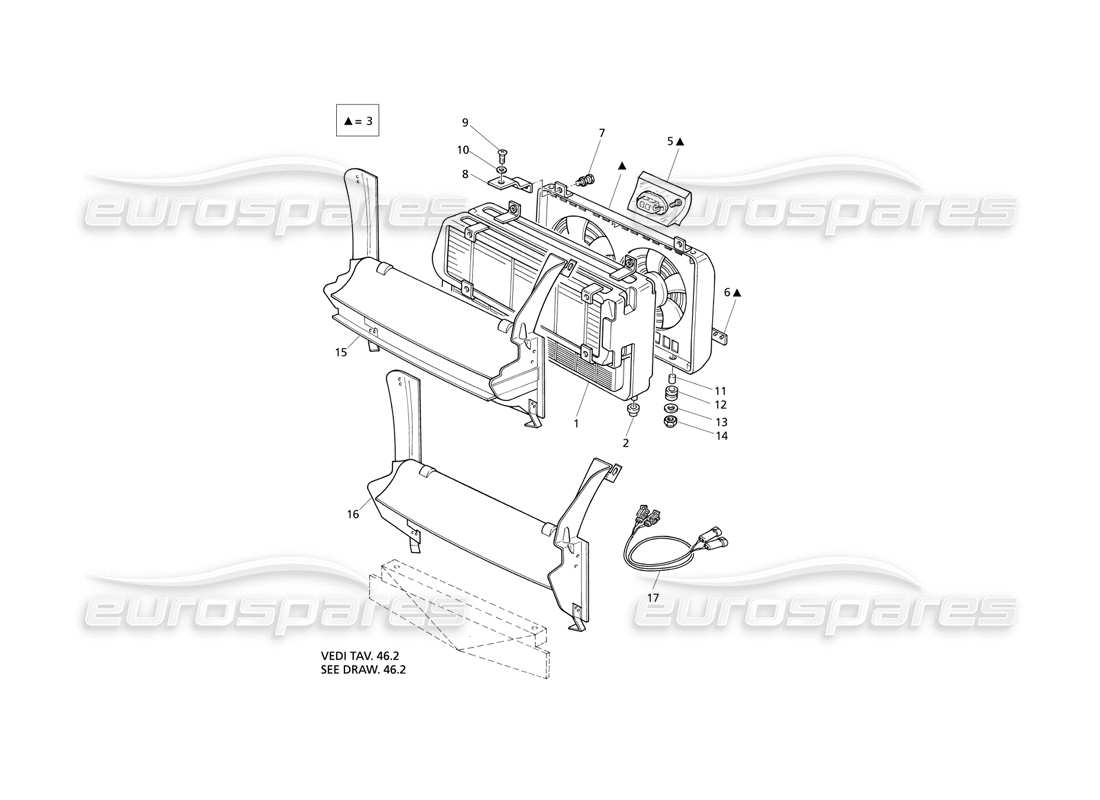

Maserati QTP V8 Evoluzione Radiator and Cooling Fans Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                              #
                              Part number
                              Description
                              Price
                              # 001
                              MPN: 384000101
                              RADIATOR
                              from £1,599.78
                              from £1,599.78
                              This part replaces part number 384000100
                              # 002
                              MPN: 189453
                              ANTI VIBRATION PAD
                              from £1.08
                              from £1.08
                              This part replaces part number 374030312
                              # 002
                              MPN: 189453
                              ANTI VIBRATION PAD
                              from £1.08
                              from £1.08
                              This part replaces part number 374030312
                              # 003
                              MPN: 373390105
                              FAN ASSY
                              from £232.12
                              from £232.12
                              # 005
                              MPN: 980000960
                              FAN RESISTOR KIT
                              from £64.47
                              from £64.47
                              This part replaces part number 373330176 - and 1 more. Click to view details
                              # 006
                              MPN: 373330320
                              flap
                              from £4.00
                              from £4.00
                              # 007
                              MPN: 11730624
                              SCREW+WASHERS
                              from £0.47
                              from £0.47
                              # 008
                              MPN: 371390773
                              PLATE
                              from £5.57
                              from £5.57
                              # 009
                              MPN: 327720338
                              SCREW
                              from £1.55
                              from £1.55
                              # 010
                              MPN: 14498801
                              SPRING WASHER
                              from £0.47
                              from £0.47
                              # 011
                              MPN: 397850624
                              BUSH
                              from £2.39
                              from £2.39
                              # 012
                              MPN: 315520375
                              ANTI VIBRATION PAD
                              Supersession
                              Supersession
                              # 013
                              MPN: 14498801
                              FLAT WASHER
                              from £0.47
                              from £0.47
                              # 014
                              MPN: 12575421
                              STOP NUT
                              Supersession
                              Supersession
                              This part replaces part number 12575411
                              # 015
                              MPN: 374094258
                              AIR DUCT
                              - Valid for M.T. version
                              from £127.47
                              from £127.47
                              This part replaces part number 374092258
                              # 016
                              MPN: 374093258
                              AIR DUCT
                              - Valid for A.T. version
                              from £43.05
                              from £43.05
                              This part replaces part number 374091258 - and 1 more. Click to view details
                              # 017
                              MPN: 373030170
                              FAN WIRING
                              from £25.01
                              from £25.01
