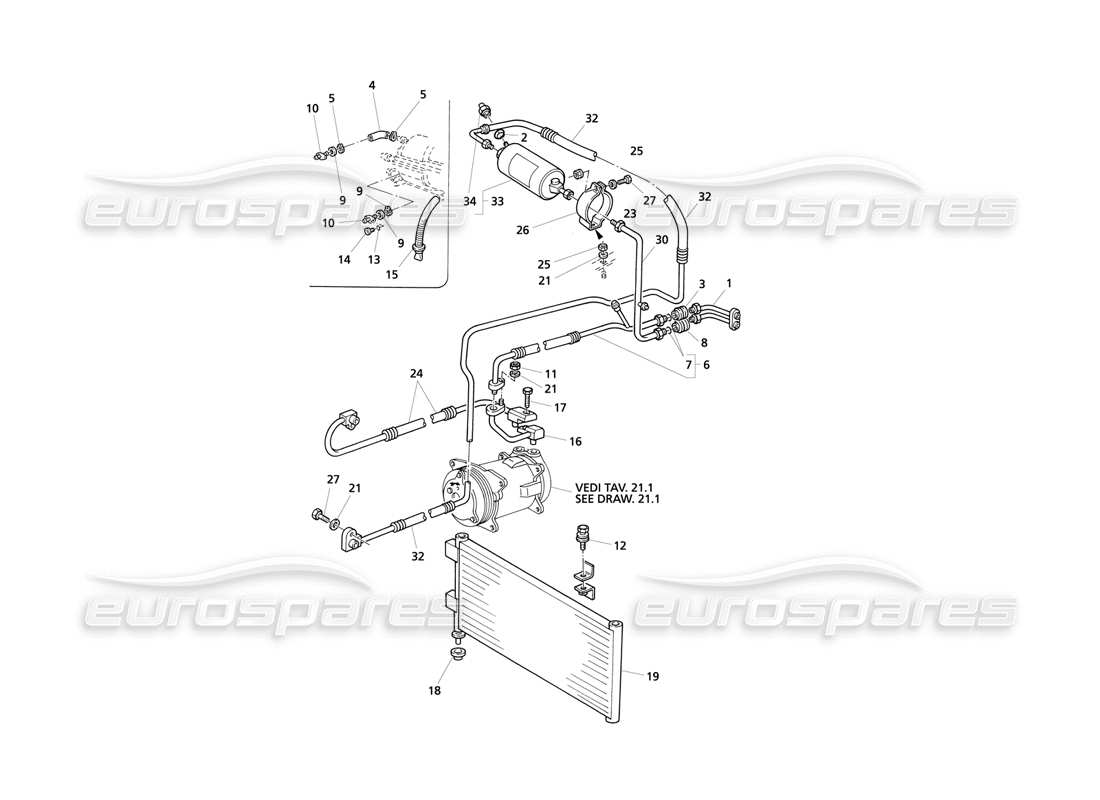

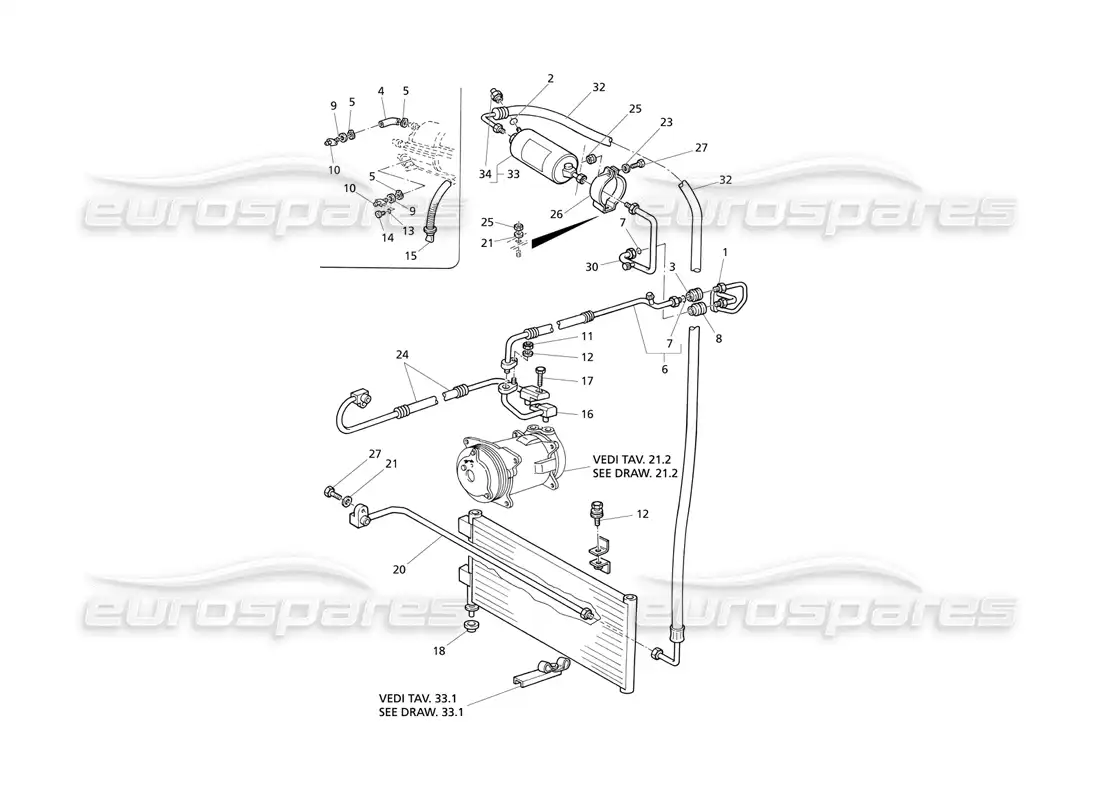

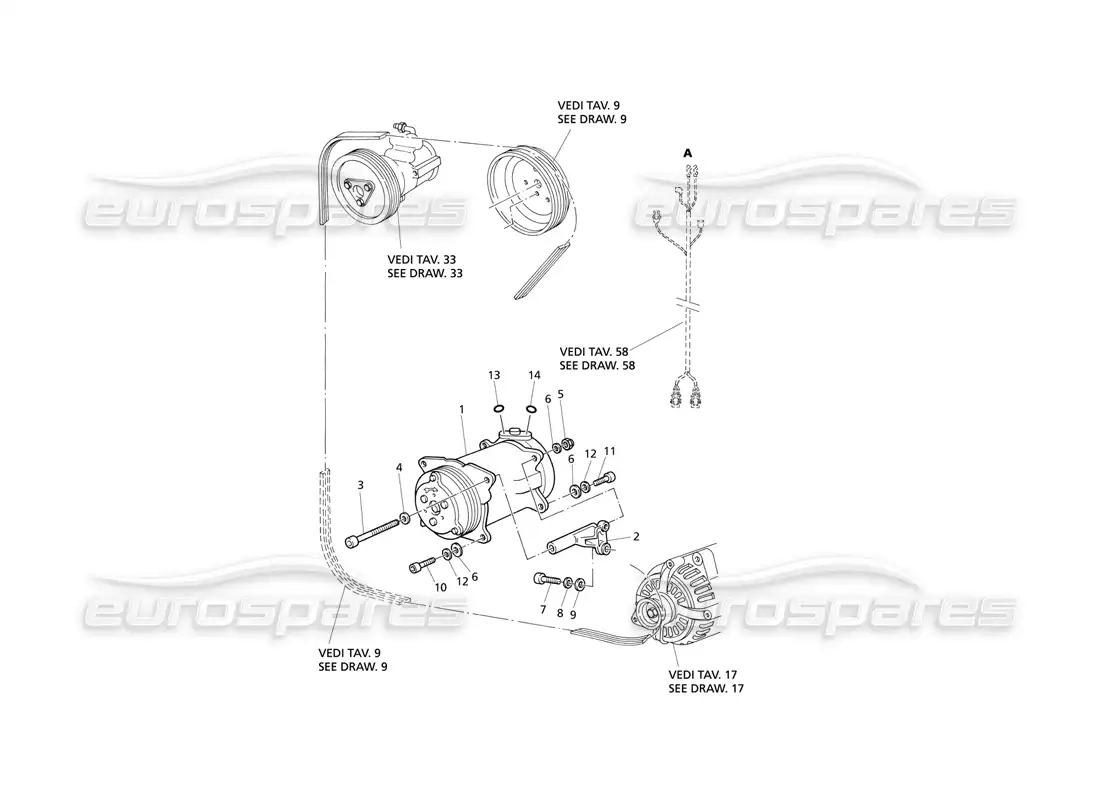

021 - Air Conditioning System (LH Drive)
Maserati QTP V8 Evoluzione Air Conditioning System (L.H. Drive) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
-
You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
001
MPN:
375500111
HOSE ASSY
from
£33.54
from
£33.54
#
002
-
GASKET
#
003
MPN:
375500373
FAIRLEAD
from
£4.12
from
£4.12
#
004
MPN:
315520479
TUBE
from
£8.24
from
£8.24
#
005
MPN:
186402028
CLAMP
from
£1.56
from
£1.56
#
006
MPN:
375590173
FREON RETURN LINE
from
£105.37
from
£105.37
#
007
-
GASKET
#
008
MPN:
375500371
FAIRLEAD
from
£4.55
from
£4.55
#
009
MPN:
315520372
GASKET
from
£0.70
from
£0.70
#
010
MPN:
315520370
UNION
from
£0.71
from
£0.71
#
011
MPN:
15896221
NUT
from
£0.71
from
£0.71
#
012
MPN:
11730624
SCREW
from
£0.47
from
£0.47
#
013
MPN:
169020005
WASHER
from
£1.09
from
£1.09
#
014
MPN:
14645597
RIVET
from
£0.86
from
£0.86
#
015
MPN:
315520017
CONDENSATE DRAINAGE TUBE
from
£1.78
from
£1.78
#
016
MPN:
578375401
BLOCK
from
£89.52
from
£89.52
#
017
MPN:
14307624
BLOCK SECURING SCREW
from
£3.03
from
£3.03
#
018
MPN:
189453
BUSHING
from
£1.09
from
£1.09
This part replaces part number 374030312
#
018
MPN:
189453
BUSHING
from
£1.09
from
£1.09
This part replaces part number 374030312
#
019
MPN:
385500220
CONDENSER
from
£583.22
from
£583.22
#
021
MPN:
12601279
SPRING WASHER
from
£0.47
from
£0.47
#
023
MPN:
14496400
FLAT WASHER
from
£0.86
from
£0.86
#
024
MPN:
375590262
FREON DELIVERY LINE
from
£233.34
from
£233.34
#
025
MPN:
14084217
NUT
Supersession
Supersession
#
026
MPN:
375500301
CLAMP
from
£4.67
from
£4.67
#
027
MPN:
10902629
SCREW
#
030
MPN:
375531184
FREON DELIVERY LINE
from
£31.26
from
£31.26
#
032
MPN:
375590181
FREON LINE
from
£421.41
from
£421.41
#
033
MPN:
375580174
FILTER ASSY
from
£75.58
from
£75.58
#
034
MPN:
46476438
MAX AND MIN. CAPACITY PRESSURE SWITCH
from
£43.18
from
£43.18
