024 - Front Exhaust System

Maserati QTP V8 Evoluzione Front Exhaust System Parts Diagram

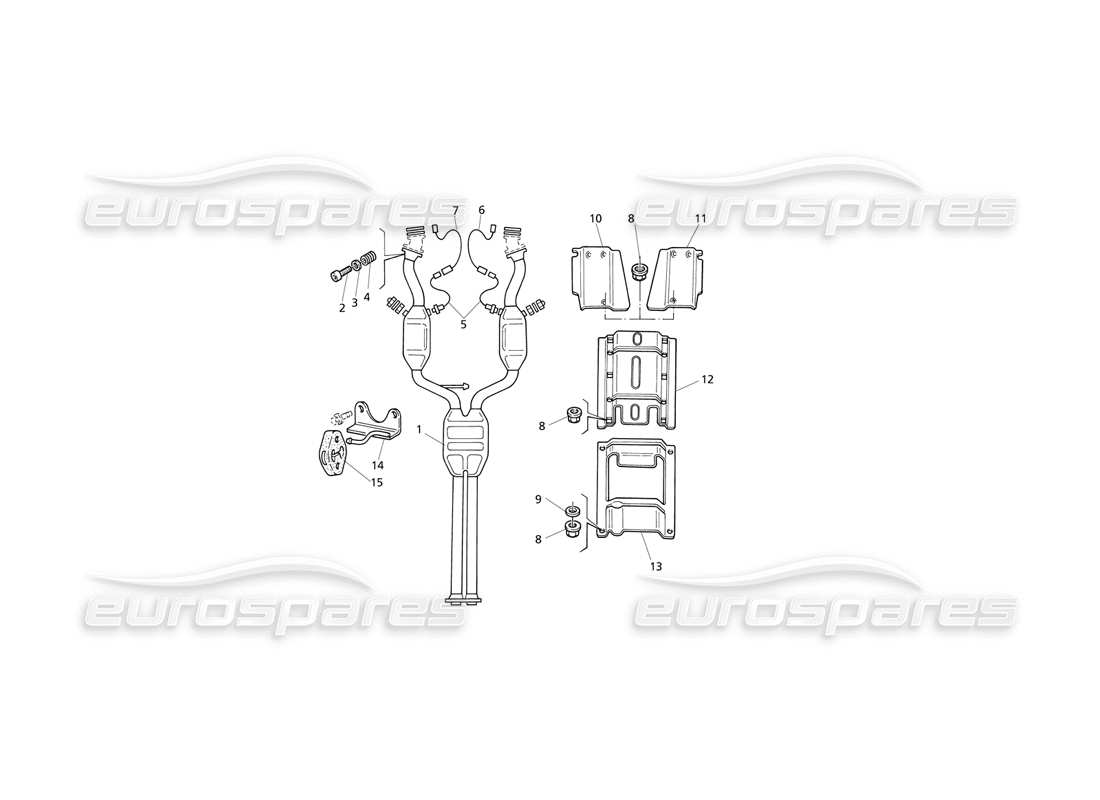

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                            #
                            Part number
                            Description
                            Price
                            # 001
                            MPN: 379090104
                            CATALYSED FRONT PIPE
                            from £1,898.11
                            from £1,898.11
                            # 002
                            MPN: 349000301
                            ALLEN SCREW
                            from £3.18
                            from £3.18
                            # 003
                            MPN: 14496601
                            WASHER
                            Supersession
                            Supersession
                            # 004
                            MPN: 319030313
                            SPRING
                            from £1.41
                            from £1.41
                            # 005
                            MPN: 473082340
                            LAMBDA SENSOR
                            from £491.52
                            from £491.52
                            # 006
                            MPN: 393750108
                            RH SIDE LAMBDA SENSOR EXTENSION
                            from £18.78
                            from £18.78
                            # 007
                            MPN: 393750111
                            LH SIDE LAMBDA SENSOR EXTENSION
                            from £15.96
                            from £15.96
                            # 008
                            MPN: 13831811
                            STOP NUT
                            from £0.47
                            from £0.47
                            # 009
                            MPN: 14488601
                            FLAT WASHER
                            from £1.18
                            from £1.18
                            # 010
                            MPN: 379031201
                            FRONT LH BULKHEAD
                            from £59.21
                            from £59.21
                            # 011
                            MPN: 379031200
                            FRONT RH BULKHEAD
                            from £59.21
                            from £59.21
                            # 012
                            MPN: 379031118
                            CENTRE BULKHEAD
                            from £35.23
                            from £35.23
                            # 013
                            MPN: 379031137
                            REAR BULKHEAD
                            from £43.51
                            from £43.51
                            # 014
                            MPN: 379031501
                            TRANSMISSION SUPP. BRACKET
                            - Valid for A.T. version
                            from £11.49
                            from £11.49
                            # 015
                            MPN: 389000506
                            RUBBER PAD
                            - Valid for A.T. version
                            from £20.24
                            from £20.24
