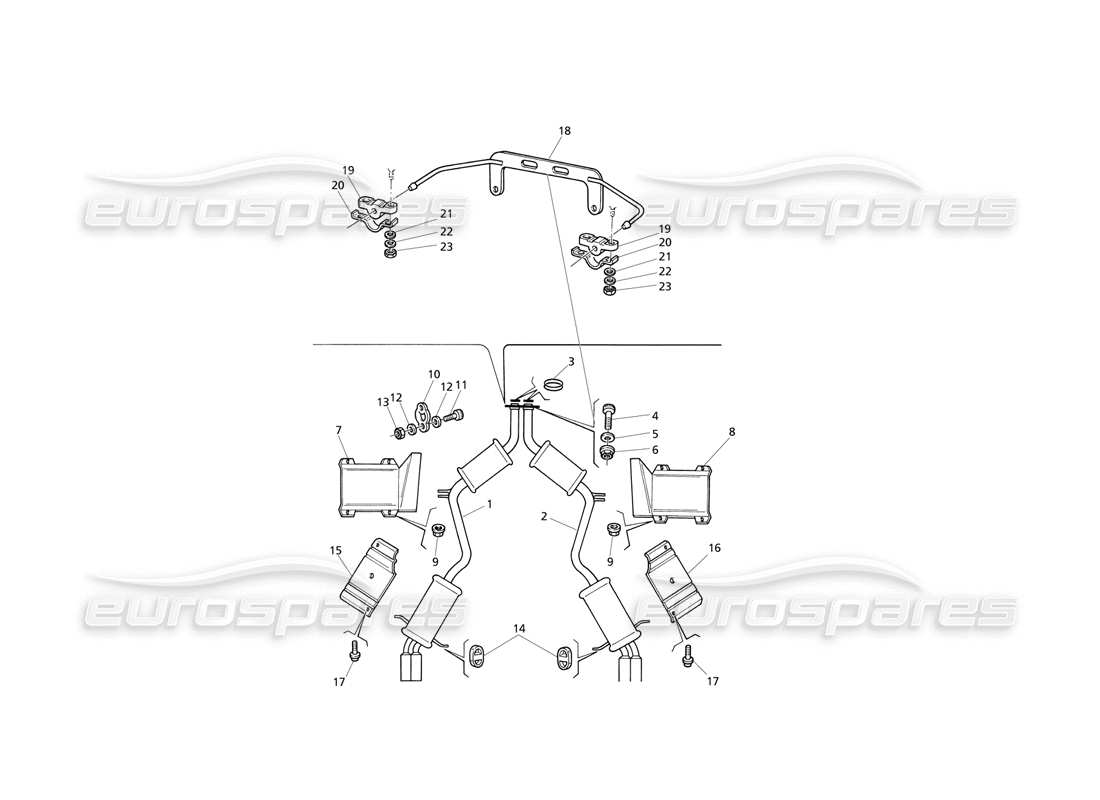

024.1 - Rear Exhaust System

Maserati QTP V8 Evoluzione Rear Exhaust System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                #
                                                Part number
                                                Description
                                                Price
                                                # 001
                                                MPN: 379005113
                                                REAR LH TUBING
                                                from £513.22
                                                from £513.22
                                                # 002
                                                MPN: 379005114
                                                REAR RH TUBING
                                                from £450.87
                                                from £450.87
                                                # 003
                                                MPN: 399050305
                                                SEAL RING
                                                from £90.80
                                                from £90.80
                                                # 004
                                                MPN: 14814874
                                                ALLEN SCREW
                                                from £1.67
                                                from £1.67
                                                # 005
                                                MPN: 14496501
                                                WASHER
                                                from £0.87
                                                from £0.87
                                                # 006
                                                MPN: 14058519
                                                STOP NUT
                                                from £0.52
                                                from £0.52
                                                This part replaces part number 312051309 which we have in stock
                                                # 007
                                                MPN: 369005139
                                                LH BULKHEAD
                                                from £10.14
                                                from £10.14
                                                # 008
                                                MPN: 369005140
                                                RH BULKHEAD
                                                from £10.14
                                                from £10.14
                                                # 009
                                                MPN: 13831811
                                                NUT
                                                from £0.47
                                                from £0.47
                                                # 010
                                                MPN: 369000130
                                                RUBBER SUPPORT
                                                from £1.58
                                                from £1.58
                                                # 011
                                                MPN: 14304821
                                                ALLEN SCREW
                                                from £0.53
                                                from £0.53
                                                # 012
                                                MPN: 14498801
                                                FLAT WASHER
                                                from £0.47
                                                from £0.47
                                                # 013
                                                MPN: 14084217
                                                STOP NUT
                                                Supersession
                                                Supersession
                                                # 014
                                                MPN: 319020300
                                                RUBBER SUPPORT
                                                from £1.58
                                                from £1.58
                                                # 015
                                                MPN: 379000119
                                                REAR LH BULKHEAD
                                                from £12.13
                                                from £12.13
                                                # 016
                                                MPN: 379000120
                                                REAR RH BULKHEAD
                                                from £12.13
                                                from £12.13
                                                # 017
                                                MPN: 314320345
                                                FLANGED SCREW
                                                from £42.56
                                                from £42.56
                                                # 018
                                                MPN: 379030500
                                                EXHAUST SYSTEM SUPPORT
                                                from £17.06
                                                from £17.06
                                                # 019
                                                MPN: 379031333
                                                ANTI VIBRATION PAD
                                                from £10.30
                                                from £10.30
                                                # 020
                                                MPN: 379031334
                                                BRACKET
                                                from £28.03
                                                from £28.03
                                                # 021
                                                MPN: 14498801
                                                FLAT WASHER
                                                from £0.47
                                                from £0.47
                                                # 022
                                                MPN: 135600060
                                                SHAKEPROOF WASHER
                                                from £0.79
                                                from £0.79
                                                # 023
                                                MPN: 124900060
                                                NUT
                                                from £0.79
                                                from £0.79
