028.2 - Automatic Transmission Internal Parts

Maserati QTP V8 Evoluzione Automatic Transmission Internal Parts Parts Diagram

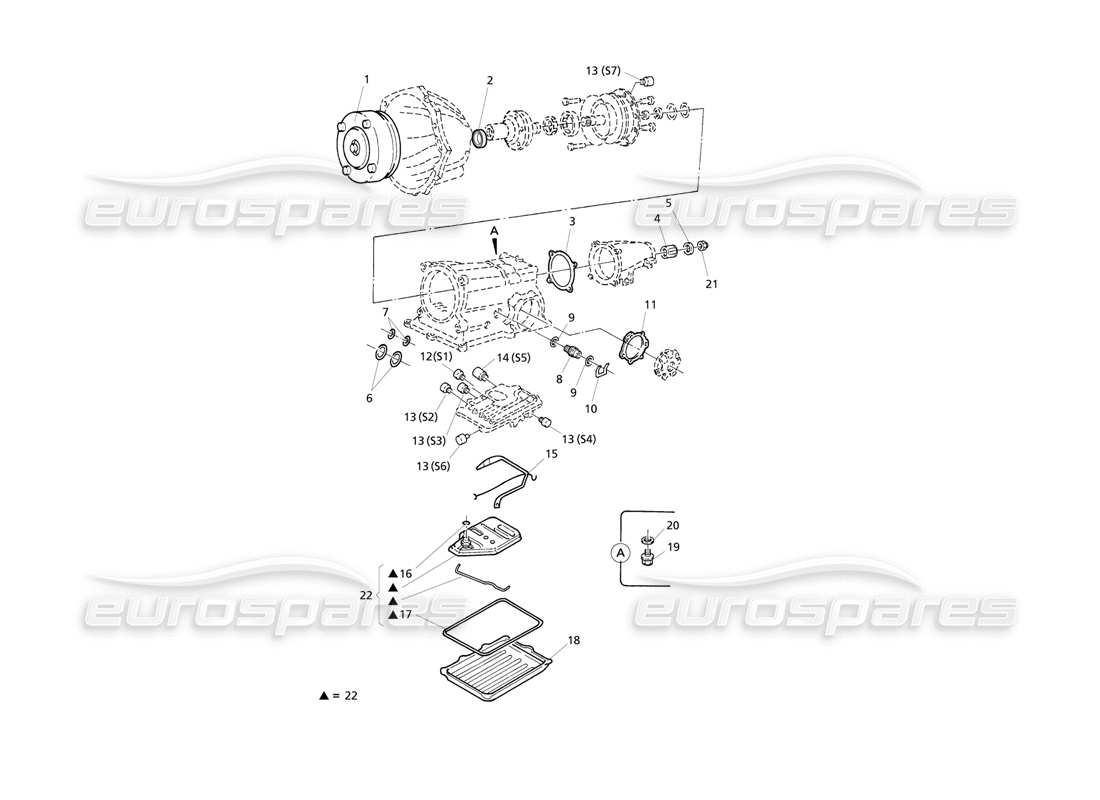

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Price
    # 001
    MPN: 374831101
    CONVERTER
    - Valid for A.T. version
    from £577.50
    from £577.50
    # 002
    MPN: 374831331
    PUMP SEAL
    - Valid for A.T. version
    from £7.36
    from £7.36
    # 003
    MPN: 374831333
    FLANGE GASKET
    - Valid for A.T. version
    from £15.83
    from £15.83
    # 004
    MPN: 374831110
    REAR BEARING
    - Valid for A.T. version
    from £33.61
    from £33.61
    # 005
    MPN: 374831408
    REAR SEAL
    - Valid for A.T. version
    from £23.12
    from £23.12
    # 006
    MPN: 374831336
    FR. SERVO OR. COVER
    - Valid for A.T. version
    from £7.76
    from £7.76
    # 007
    MPN: 374831332
    MANUAL SHAFT SEAL
    - Valid for A.T. version
    from £182.98
    from £182.98
    # 008
    MPN: 372931310
    10 PIN CONNECTOR
    - Valid for A.T. version
    from £11.97
    from £11.97
    # 009
    MPN: 372931312
    O RING
    - Valid for A.T. version
    from £2.33
    from £2.33
    # 010
    MPN: 372931311
    SPRING
    - Valid for A.T. version
    from £2.19
    from £2.19
    # 011
    MPN: 374831330
    REAR SERVO COVER GASKET
    - Valid for A.T. Version - (minimum order quantity = 2)
    from £7.76
    from £7.76
    # 012
    MPN: 372931205
    SOLENOID (S1)
    - Valid for A.T. version - S3 S4 S6 S7) - Valid for A.T. version
    from £91.77
    from £91.77
    # 013
    MPN: 372931210
    SOLENOID (S2
    from £51.60
    from £51.60
    # 014
    MPN: 372931220
    SOLENOID (S5)
    - Valid for A.T. version
    from £295.47
    from £295.47
    # 015
    MPN: 372931221
    VALVES WIRING
    - Valid for A.T. version
    from £117.63
    from £117.63
    # 016
    MPN: 374831320
    INTERNAL O RING FILTER
    - Valid for A.T. version
    from £3.55
    from £3.55
    # 017
    MPN: 374831309
    OIL SUMP GASKET
    - Valid for A.T. version
    from £11.87
    from £11.87
    # 018
    MPN: 374831102
    oil sump
    - Valid for A.T. version
    from £50.61
    from £50.61
    # 019
    MPN: 374831322
    OIL LEVEL PLUG
    - Valid for A.T. version
    from £16.37
    from £16.37
    # 020
    MPN: 374831323
    O RING
    - Valid for A.T. version
    from £1.94
    from £1.94
    # 021
    MPN: 374831500
    FLANGE NUT
    - Valid for A.T. version
    from £60.68
    from £60.68
    # 022
    MPN: 374831020
    FILTER SERVICE KIT
    - Valid for A.T. version
    from £57.15
    from £57.15
