033 - Power Steering System (LH Drive)

Maserati QTP V8 Evoluzione Power Steering System (L.H. Drive) Parts Diagram

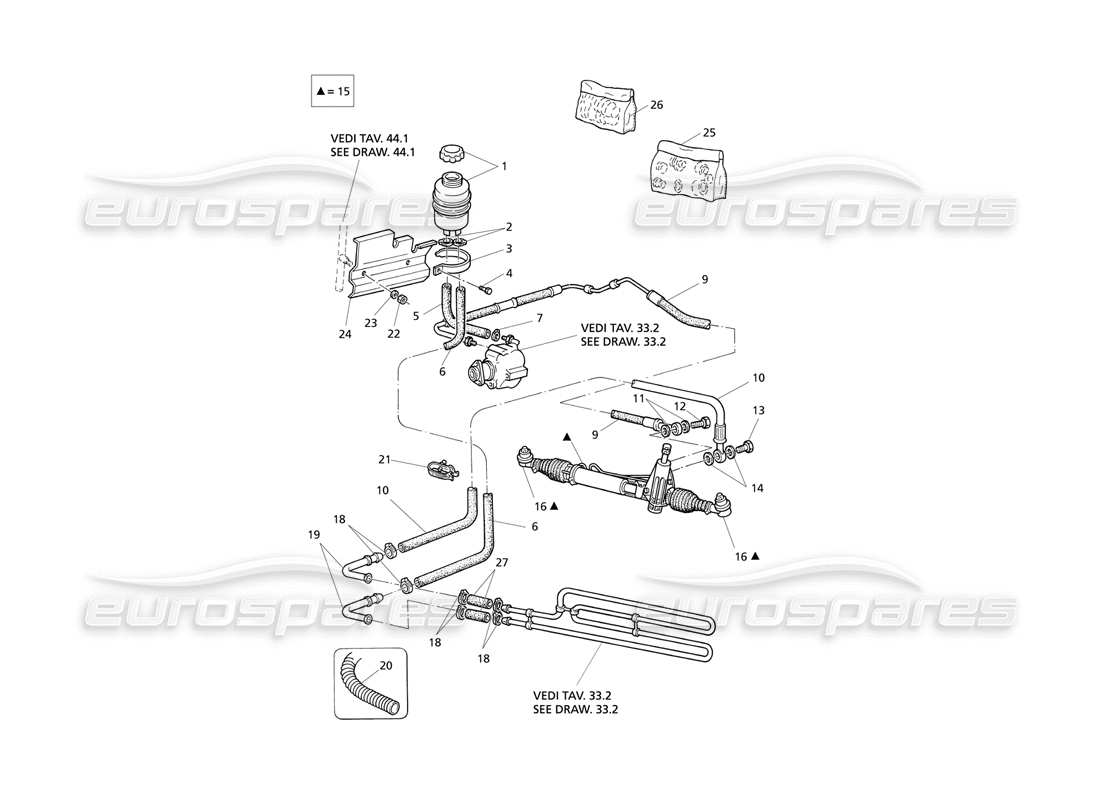

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                #
                                                Part number
                                                Description
                                                Price
                                                # 001
                                                MPN: 377890130
                                                OIL RESERVOIR
                                                from £27.98
                                                from £27.98
                                                This part replaces part number 377830130
                                                # 002
                                                MPN: 374090381
                                                CLAMP
                                                from £3.23
                                                from £3.23
                                                # 003
                                                MPN: 377830600
                                                BRACKET
                                                from £4.62
                                                from £4.62
                                                # 004
                                                MPN: 314320345
                                                SCREW
                                                from £41.46
                                                from £41.46
                                                # 005
                                                MPN: 377890370
                                                RUBBER PIPE
                                                from £16.63
                                                from £16.63
                                                # 006
                                                MPN: 377892636
                                                PIPE
                                                from £19.64
                                                from £19.64
                                                # 007
                                                MPN: 374090381
                                                CLAMP
                                                from £3.23
                                                from £3.23
                                                # 009
                                                MPN: 377892209
                                                DELIVERY PIPE
                                                from £280.79
                                                from £280.79
                                                # 010
                                                MPN: 377892612
                                                RUBBER PIPE
                                                from £58.06
                                                from £58.06
                                                # 011
                                                MPN: 317851602
                                                GASKET
                                                from £1.07
                                                from £1.07
                                                # 012
                                                MPN: 317832380
                                                UNION SCREW
                                                from £9.01
                                                from £9.01
                                                # 013
                                                MPN: 387800387
                                                UNION SCREW
                                                from £9.61
                                                from £9.61
                                                # 014
                                                MPN: 317851601
                                                GASKET
                                                from £1.07
                                                from £1.07
                                                # 015
                                                MPN: 377800225
                                                Steering box
                                                (LHD model)
                                                from £1,175.51
                                                from £1,175.51
                                                This part replaces part number 367800225
                                                # 016
                                                MPN: 377801133
                                                STEERING HEAD
                                                from £85.10
                                                from £85.10
                                                # 018
                                                MPN: 13000390
                                                CLAMP
                                                from £0.47
                                                from £0.47
                                                This part replaces part number 13121170 - and 1 more. Click to view details
                                                # 019
                                                MPN: 377891651
                                                UNION PIPE
                                                from £31.52
                                                from £31.52
                                                # 020
                                                MPN: 318720333
                                                CORRUGATED TUBE
                                                - Section In meters - order minimum amount of 1 m or multiples
                                                from £5.12
                                                from £5.12
                                                # 021
                                                MPN: 98088
                                                CLAMP
                                                from £1.54
                                                from £1.54
                                                # 022
                                                MPN: 13831811
                                                FLANGED NUT
                                                from £0.47
                                                from £0.47
                                                # 023
                                                MPN: 136110055
                                                FLAT WASHER
                                                from £0.76
                                                from £0.76
                                                # 024
                                                MPN: 377830350
                                                BULKHEAD
                                                from £15.67
                                                from £15.67
                                                # 025
                                                MPN: 390250080
                                                KIT FOR BELLOWS AND CLAMP REPLACEMENT
                                                from £126.34
                                                from £126.34
                                                This part replaces part number 320250033
                                                # 026
                                                MPN: 310232040
                                                KIT FOR PIPE AND UNION REPLACEMENT
                                                from £31.70
                                                from £31.70
                                                # 027
                                                MPN: 377891652
                                                PIPE
                                                from £68.61
                                                from £68.61
