033.1 - Power Steering System (RH Drive)

Maserati QTP V8 Evoluzione Power Steering System (R.H. Drive) Parts Diagram

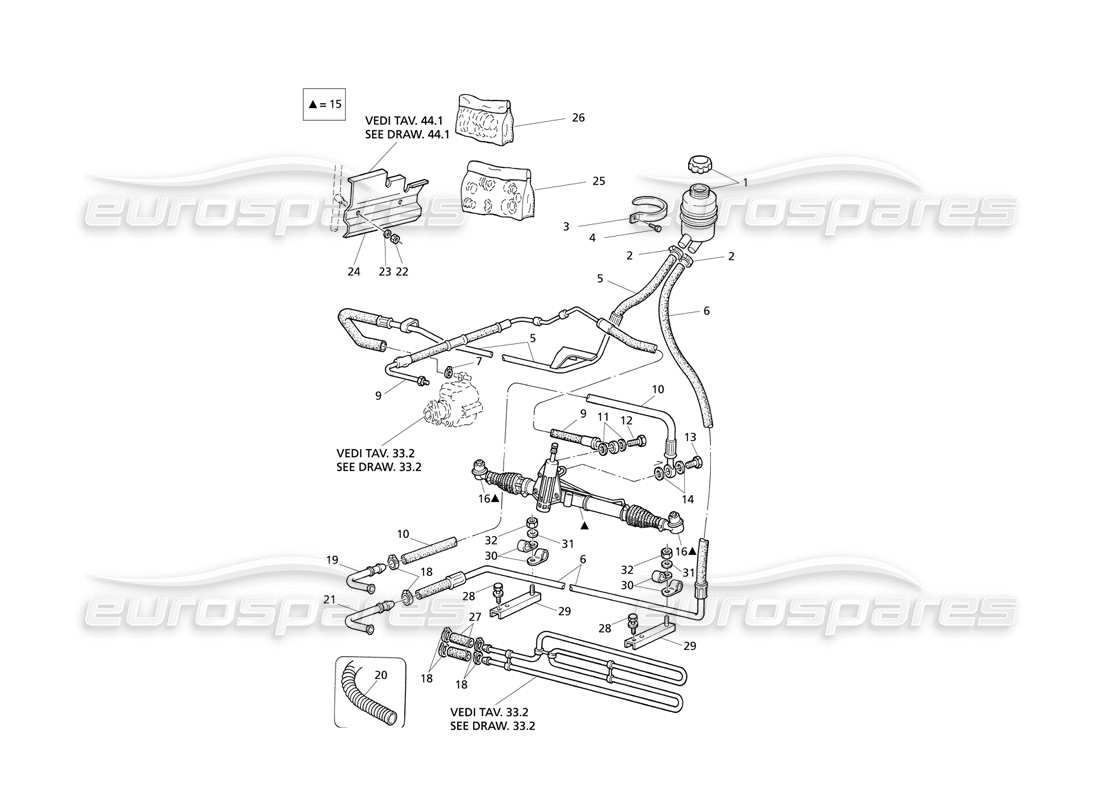

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                          #
                                                          Part number
                                                          Description
                                                          Price
                                                          # 001
                                                          MPN: 377896130
                                                          OIL RESERVOIR
                                                          from £16.01
                                                          from £16.01
                                                          # 002
                                                          MPN: 397870131
                                                          CLAMP
                                                          from £13.98
                                                          from £13.98
                                                          # 003
                                                          MPN: 377830600
                                                          BRACKET
                                                          from £4.63
                                                          from £4.63
                                                          # 004
                                                          MPN: 314320345
                                                          SCREW
                                                          from £46.34
                                                          from £46.34
                                                          # 005
                                                          MPN: 377896370
                                                          PIPE
                                                          from £188.98
                                                          from £188.98
                                                          # 006
                                                          MPN: 377896636
                                                          RUBBER PIPE
                                                          from £102.18
                                                          from £102.18
                                                          # 007
                                                          MPN: 374090381
                                                          CLAMP
                                                          from £3.24
                                                          from £3.24
                                                          # 009
                                                          MPN: 377896209
                                                          DELIVERY PIPE
                                                          from £273.88
                                                          from £273.88
                                                          # 010
                                                          MPN: 377896612
                                                          RUBBER PIPE
                                                          from £93.45
                                                          from £93.45
                                                          # 011
                                                          MPN: 317851602
                                                          GASKET
                                                          from £1.08
                                                          from £1.08
                                                          # 012
                                                          MPN: 317832380
                                                          UNION SCREW
                                                          from £9.04
                                                          from £9.04
                                                          # 013
                                                          MPN: 387800387
                                                          UNION SCREW
                                                          from £9.66
                                                          from £9.66
                                                          # 014
                                                          MPN: 317851601
                                                          GASKET
                                                          from £1.08
                                                          from £1.08
                                                          # 015
                                                          MPN: 377819125
                                                          STEERING BOX ASSY
                                                          (RHD model)
                                                          Supersession
                                                          Supersession
                                                          # 016
                                                          MPN: 377801133
                                                          STEERING HEAD
                                                          from £84.74
                                                          from £84.74
                                                          # 018
                                                          MPN: 13000390
                                                          CLAMP
                                                          from £0.47
                                                          from £0.47
                                                          This part replaces part number 13121170 - and 1 more. Click to view details
                                                          # 019
                                                          MPN: 377891651
                                                          UNION PIPE
                                                          from £31.66
                                                          from £31.66
                                                          # 020
                                                          MPN: 318720333
                                                          CORRUGATED TUBE
                                                          - Section In meters - order minimum amount of 1 m or multiples
                                                          from £5.14
                                                          from £5.14
                                                          # 021
                                                          MPN: 377891650
                                                          UNION PIPE
                                                          from £54.60
                                                          from £54.60
                                                          # 022
                                                          MPN: 13831811
                                                          FLANGED NUT
                                                          from £0.47
                                                          from £0.47
                                                          # 023
                                                          MPN: 136110055
                                                          FLAT WASHER
                                                          from £0.77
                                                          from £0.77
                                                          # 024
                                                          MPN: 377896350
                                                          BULKHEAD
                                                          from £67.54
                                                          from £67.54
                                                          # 025
                                                          MPN: 390250080
                                                          KIT FOR BELLOWS AND CLAMP REPLACEMENT
                                                          from £126.92
                                                          from £126.92
                                                          This part replaces part number 320250033
                                                          # 026
                                                          MPN: 310232040
                                                          KIT FOR PIPE AND UNION REPLACEMENT
                                                          from £31.84
                                                          from £31.84
                                                          # 027
                                                          MPN: 377891652
                                                          RUBBER PIPE
                                                          from £68.91
                                                          from £68.91
                                                          # 028
                                                          MPN: 11730624
                                                          T.E. SCREW
                                                          from £0.47
                                                          from £0.47
                                                          # 029
                                                          MPN: 371396210
                                                          BRACKET
                                                          from £5.18
                                                          from £5.18
                                                          # 030
                                                          MPN: 377492352
                                                          CLAMP
                                                          from £1.55
                                                          from £1.55
                                                          This part replaces part number 377491352
                                                          # 031
                                                          MPN: 14496400
                                                          SPRING WASHER
                                                          from £0.85
                                                          from £0.85
                                                          # 032
                                                          MPN: 14098700
                                                          NUT
                                                          from £0.47
                                                          from £0.47
