036.1 - Rear Suspension and Antiroll Bar

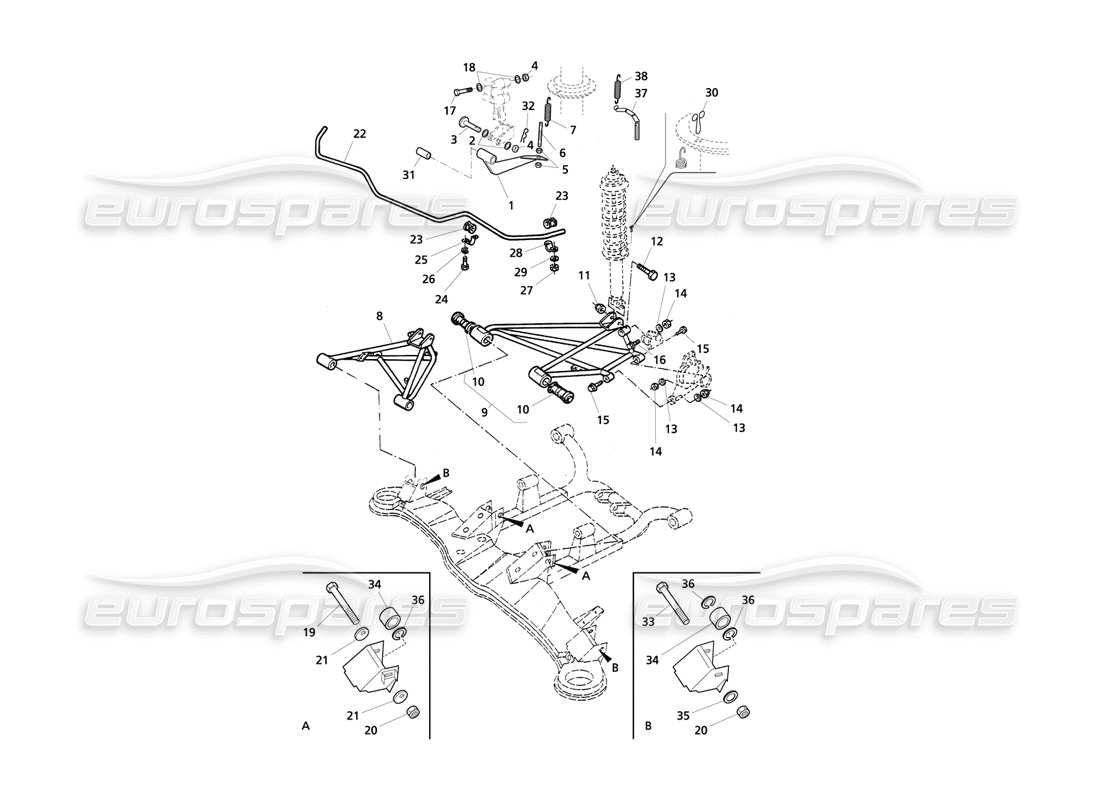

Maserati QTP V8 Evoluzione Rear Suspension and Antiroll Bar Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 377400156
LAOD APPORTIONING CONTROL LEVER
from £14.22
from £14.22
# 002
MPN: 13507001
WASHER
from £0.91
from £0.91
# 003
MPN: 157508040
PIN
from £10.23
from £10.23
# 004
MPN: 16104421
SELF LOCKING NUT
from £0.81
from £0.81
# 005
MPN: 14084111
ADJUSTING NUT
from £0.53
from £0.53
# 006
MPN: 377400327
ADJUSTING SCREW
- Pre modification
from £2.42
from £2.42
# 007
MPN: 377400326
SCREW
- Pre modification
from £4.45
from £4.45
# 008
MPN: 377030014
RH ARM
from £718.38
from £718.38
This part replaces part number 377030102 - and 1 more. Click to view details
# 009
MPN: 377030013
LH ARM
from £667.69
from £667.69
This part replaces part number 377030101 which we have in stock - and 1 more. Click to view details
# 010
MPN: 377030100
RUBBER BUSHING
alternative use: 134883
from £23.67
from £23.67
# 011
MPN: 12575811
SELF LOCKING NUT
from £1.37
from £1.37
# 012
MPN: 11116621
SCREW
from £0.88
from £0.88
# 013
MPN: 397050358
WASHER
from £4.76
from £4.76
# 014
MPN: 12577521
SELF LOCKING NUT
from £8.53
from £8.53
# 015
MPN: 397050353
SCREW
from £25.69
from £25.69
# 016
MPN: 397050354
SCREW
from £26.18
from £26.18
# 017
MPN: 15214021
BOLT
from £0.73
from £0.73
# 018
MPN: 453102300
WASHER
from £1.37
from £1.37
# 019
MPN: 377030350
SCREW
from £1.13
from £1.13
# 020
MPN: 15503925
NUT
from £1.13
from £1.13
# 021
MPN: 377030352
WASHER WITH ECCENTRIC HOLE
from £7.25
from £7.25
# 022
MPN: 377000362
STABILIZER BAR Ø 15
from £57.37
from £57.37
# 023
MPN: 367002366
FLEXIBLE BLOCK Ø 15
from £23.93
from £23.93
# 024
MPN: 16043421
SCREW
from £2.65
from £2.65
This part replaces part number 16043411
# 025
MPN: 397050374
U BOLT
from £2.02
from £2.02
# 026
MPN: 10571779
WASHER
from £0.53
from £0.53
# 027
MPN: 16104421
NUT
from £0.81
from £0.81
# 028
MPN: 397050368
U BOLT
from £2.99
from £2.99
# 029
MPN: 13507001
WASHER
from £0.91
from £0.91
# 030
MPN: 377000344
CLIP
from £21.10
from £21.10
# 031
MPN: 377400328
BUSH
from £3.38
from £3.38
# 032
MPN: 97929
SPLIT PIN
from £0.73
from £0.73
# 033
MPN: 16247734
SCREW
from £5.73
from £5.73
# 034
MPN: 377030319
SPACER
from £2.02
from £2.02
# 035
MPN: 14496825
FLAT WASHER
from £1.27
from £1.27
# 036
MPN: 377030378
SHIM 0.50 MM.
- As necessary
from £3.30
from £3.30
# 036
MPN: 377030379
SHIM 0.75 MM.
- As necessary
from £4.03
from £4.03
# 036
MPN: 377030380
SHIM 1.00 MM.
- As necessary
from £17.97
from £17.97
# 036
MPN: 377030381
SHIM
Thickness mm. 1,75
from £4.03
from £4.03
# 036
MPN: 377030382
SHIM 3.00 MM.
- As necessary
from £4.76
from £4.76
# 037
MPN: 377490165
PRESSURE REGULATOR
- Post modification
from £21.59
from £21.59
# 038
MPN: 377490326
SPRING
- Post modification
from £2.70
from £2.70
