041.1 - Brake and Accelerator Pedals (LH Drive)

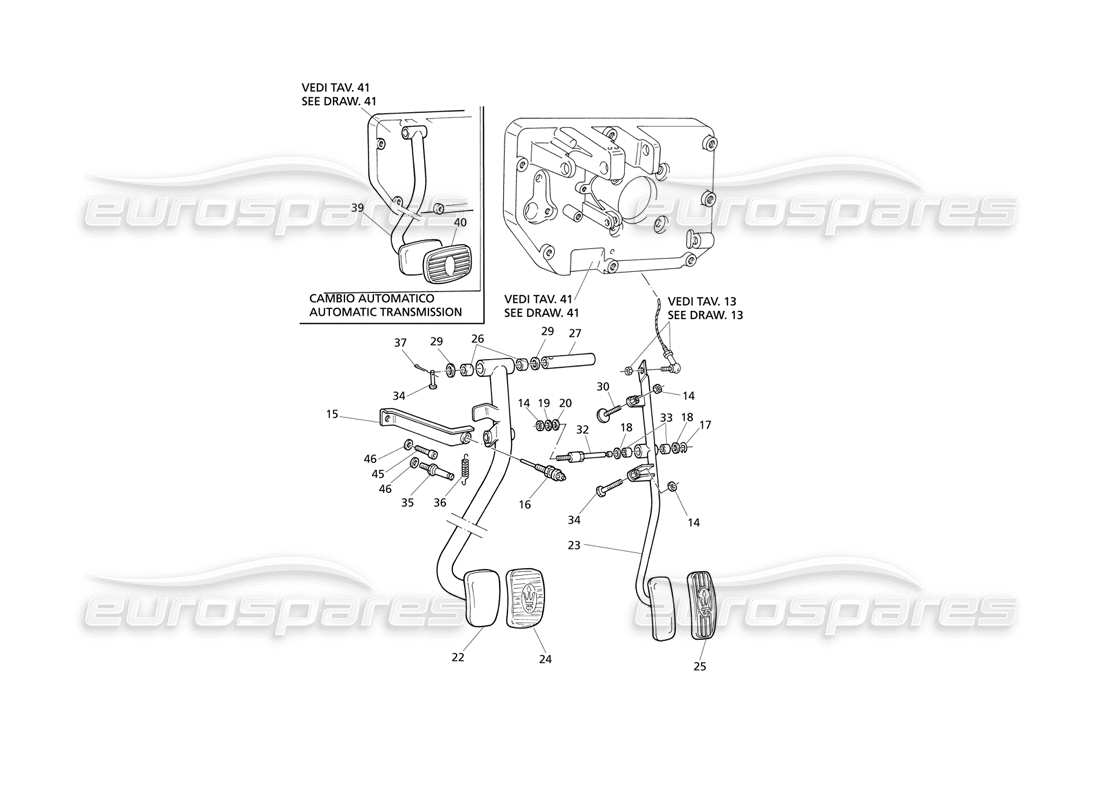

Maserati QTP V8 Evoluzione Brake and Accelerator Pedals (L.H. Drive) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 022
MPN: 378480104
BRAKE PEDAL
- Valid for M.T. version
from £152.22
from £152.22
# 023
MPN: 378480113
SPEED PEDAL
from £18.92
from £18.92
This part replaces part number 378433113
# 024
MPN: 378430300
BRAKE AND CLUTCH PEDAL COVER
- Valid for M.T. version
from £81.06
from £81.06
This part replaces part number 191496
# 025
MPN: 318420301
SPEED PEDAL COVER
from £1.61
from £1.61
# 026
MPN: 318420320
BUSH
from £10.08
from £10.08
# 027
MPN: 378430329
PIN
from £48.01
from £48.01
# 029
MPN: 368402321
SPACER WASHER
from £1.13
from £1.13
# 030
MPN: 364700180
LIMIT STOP
from £2.86
from £2.86
# 031
MPN: 378480377
PIN
from £52.18
from £52.18
# 032
MPN: 378400341
PIN
from £16.11
from £16.11
# 033
MPN: 318420334
BUSH
from £1.61
from £1.61
# 034
MPN: 10903221
SCREW
from £1.13
from £1.13
# 035
MPN: 378400368
PIN
from £84.57
from £84.57
# 036
MPN: 368402308
SPRING
from £3.06
from £3.06
# 037
MPN: 58841309
SAFETY CLIP
from £2.03
from £2.03
This part replaces part number 670000498 - and 2 more. Click to view details
# 039
MPN: 378481104
BRAKE PEDAL
- Valid for A.T. version
from £794.34
from £794.34
# 040
MPN: 318432300
PEDAL COVER
- Valid for A.T. version
from £2.69
from £2.69
# 045
MPN: 14305121
SCREW
from £0.47
from £0.47
# 046
MPN: 135910064
FLAT WASHER
