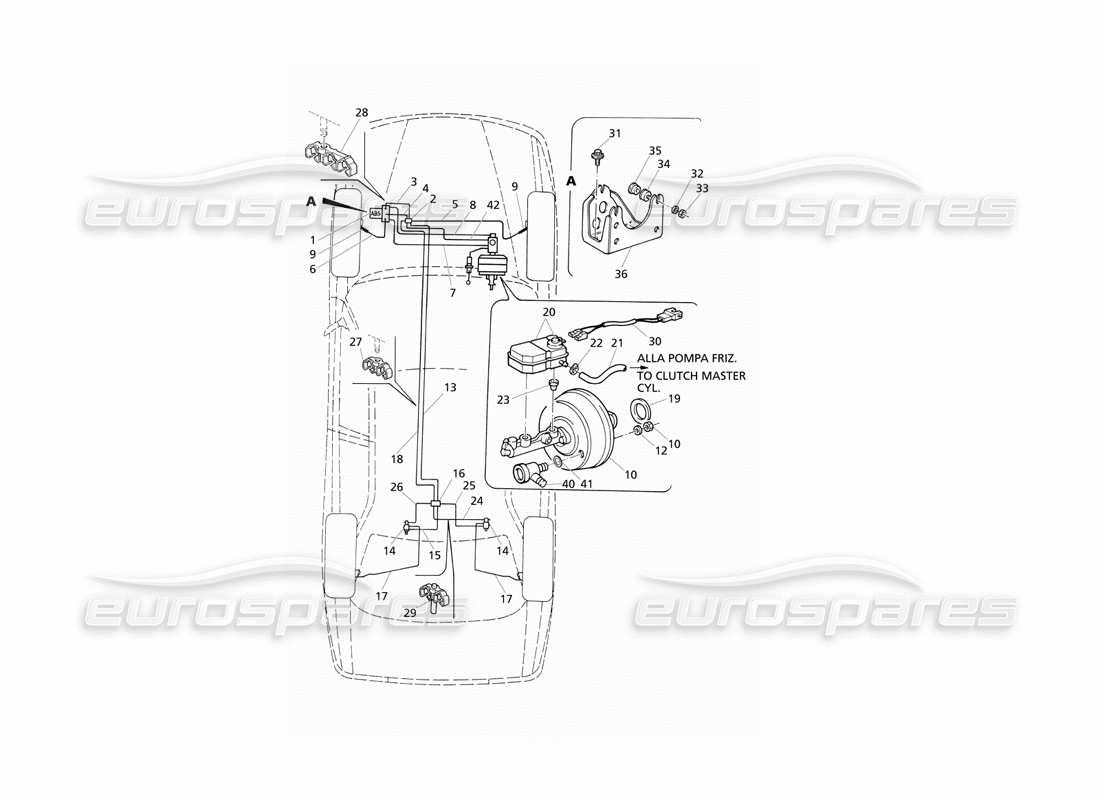

042.1 - ABS Hydraulic Brake Lines (RHD)

Maserati QTP V8 Evoluzione ABS Hydraulic Brake Lines (RHD) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                        #
                                                                        Part number
                                                                        Description
                                                                        Price
                                                                        # 001
                                                                        MPN: 373830315
                                                                        A.B.S. UNIT
                                                                        from £472.50
                                                                        from £472.50
                                                                        This part replaces part number 185076 - and 1 more. Click to view details
                                                                        # 002
                                                                        MPN: 377401325
                                                                        TUBE BRANCHING BLOCK
                                                                        from £35.66
                                                                        from £35.66
                                                                        # 003
                                                                        MPN: 377496149
                                                                        RETURN TUBE FROM BLOCK
                                                                        from £2.75
                                                                        from £2.75
                                                                        # 004
                                                                        MPN: 377496144
                                                                        DELIVERY TUBE TO BLOCK
                                                                        from £2.82
                                                                        from £2.82
                                                                        # 005
                                                                        MPN: 377496129
                                                                        FRONT RH BRAKE CONNECTING TUBE
                                                                        from £5.08
                                                                        from £5.08
                                                                        # 006
                                                                        MPN: 377496143
                                                                        FRONT LH BRAKE CONNECTING TUBE
                                                                        from £3.60
                                                                        from £3.60
                                                                        # 007
                                                                        MPN: 377496140
                                                                        FRONT BRAKE UNIT PUMP CONNECTING TUBE
                                                                        from £7.68
                                                                        from £7.68
                                                                        # 008
                                                                        MPN: 377496142
                                                                        REAR BRAKE UNIT PUMP CONNECTING TUBE
                                                                        from £7.26
                                                                        from £7.26
                                                                        # 009
                                                                        MPN: 367402129
                                                                        FRONT BRAKE HOSE
                                                                        from £10.01
                                                                        from £10.01
                                                                        # 010
                                                                        MPN: 377430112
                                                                        BRAKE BOOSTER WITH MASTER CYLINDER
                                                                        from £396.92
                                                                        from £396.92
                                                                        This part replaces part number 377400112 which we have in stock - and 2 more. Click to view details
                                                                        # 011
                                                                        MPN: 16100821
                                                                        NUT
                                                                        from £0.71
                                                                        from £0.71
                                                                        # 012
                                                                        MPN: 12604470
                                                                        WASHER
                                                                        from £0.88
                                                                        from £0.88
                                                                        # 013
                                                                        MPN: 377400161
                                                                        DELIVERY TUBE TO REAR BRAKES
                                                                        from £29.04
                                                                        from £29.04
                                                                        This part replaces part number 377400159
                                                                        # 014
                                                                        MPN: 367402336
                                                                        BRAKE PROPORTIONING VALVE
                                                                        from £106.88
                                                                        from £106.88
                                                                        # 015
                                                                        MPN: 377400157
                                                                        LH MANIFOLD BLOCK CONNECTING TUBE
                                                                        from £10.78
                                                                        from £10.78
                                                                        # 016
                                                                        MPN: 377400325
                                                                        TUBE BRANCHING BLOCK
                                                                        from £38.85
                                                                        from £38.85
                                                                        # 017
                                                                        MPN: 377400155
                                                                        REAR BRAKE HOSE
                                                                        from £28.19
                                                                        from £28.19
                                                                        # 018
                                                                        MPN: 377400162
                                                                        RETUR TUBE TO BLOCK
                                                                        from £29.04
                                                                        from £29.04
                                                                        # 019
                                                                        MPN: 367402309
                                                                        RING
                                                                        from £1.55
                                                                        from £1.55
                                                                        # 020
                                                                        MPN: 377400104
                                                                        BRAKE FLUID RESERVOIR
                                                                        from £10.05
                                                                        from £10.05
                                                                        # 021
                                                                        MPN: 19026489
                                                                        TUBE
                                                                        - Section In meters
                                                                        from £5.91
                                                                        from £5.91
                                                                        # 022
                                                                        MPN: 13119770
                                                                        CLAMP
                                                                        from £1.08
                                                                        from £1.08
                                                                        # 023
                                                                        MPN: 377400301
                                                                        GROMMET
                                                                        from £1.89
                                                                        from £1.89
                                                                        # 024
                                                                        MPN: 377400154
                                                                        RH MANIFOLD BLOCK CONNECTING TUBE
                                                                        from £14.44
                                                                        from £14.44
                                                                        # 025
                                                                        MPN: 377400158
                                                                        RH MANIFOLD BLOCK CONNECTING TUBE
                                                                        from £12.75
                                                                        from £12.75
                                                                        # 026
                                                                        MPN: 377400153
                                                                        LH MANIFOLD BLOCK CONNECTING TUBE
                                                                        from £11.13
                                                                        from £11.13
                                                                        # 027
                                                                        MPN: 379200408
                                                                        CLAMP
                                                                        - As necessary
                                                                        from £1.08
                                                                        from £1.08
                                                                        # 028
                                                                        MPN: 377419334
                                                                        CLAMP
                                                                        - As necessary
                                                                        from £1.55
                                                                        from £1.55
                                                                        # 029
                                                                        MPN: 83012
                                                                        CLAMP
                                                                        - As necessary
                                                                        from £0.69
                                                                        from £0.69
                                                                        # 030
                                                                        MPN: 373007175
                                                                        BRAKE FLUID LEV. SENSOR HARNESS
                                                                        from £6.72
                                                                        from £6.72
                                                                        # 031
                                                                        MPN: 11730624
                                                                        SCREW
                                                                        from £0.52
                                                                        from £0.52
                                                                        # 032
                                                                        MPN: 10523401
                                                                        WASHER
                                                                        from £0.51
                                                                        from £0.51
                                                                        # 033
                                                                        MPN: 12575421
                                                                        SCREW
                                                                        Supersession
                                                                        Supersession
                                                                        This part replaces part number 12575411
                                                                        # 034
                                                                        MPN: 363802316
                                                                        CUP
                                                                        # 035
                                                                        MPN: 363802317
                                                                        RUBBER BUFFER
                                                                        from £1.08
                                                                        from £1.08
                                                                        # 036
                                                                        MPN: 363802116
                                                                        A.B.S. SUPPORT
                                                                        from £57.75
                                                                        from £57.75
                                                                        # 040
                                                                        MPN: 387405170
                                                                        VALVE
                                                                        from £2.25
                                                                        from £2.25
                                                                        # 041
                                                                        MPN: 387400304
                                                                        CLAMP
                                                                        from £2.32
                                                                        from £2.32
                                                                        # 042
                                                                        MPN: 377401150
                                                                        BLOCK PUMP CONNECTING TUBE
                                                                        from £11.34
                                                                        from £11.34
                                                                        Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
