049 - Front Doors: Hinges and Inner Controls

Maserati QTP V8 Evoluzione Front Doors: Hinges and Inner Controls Parts Diagram

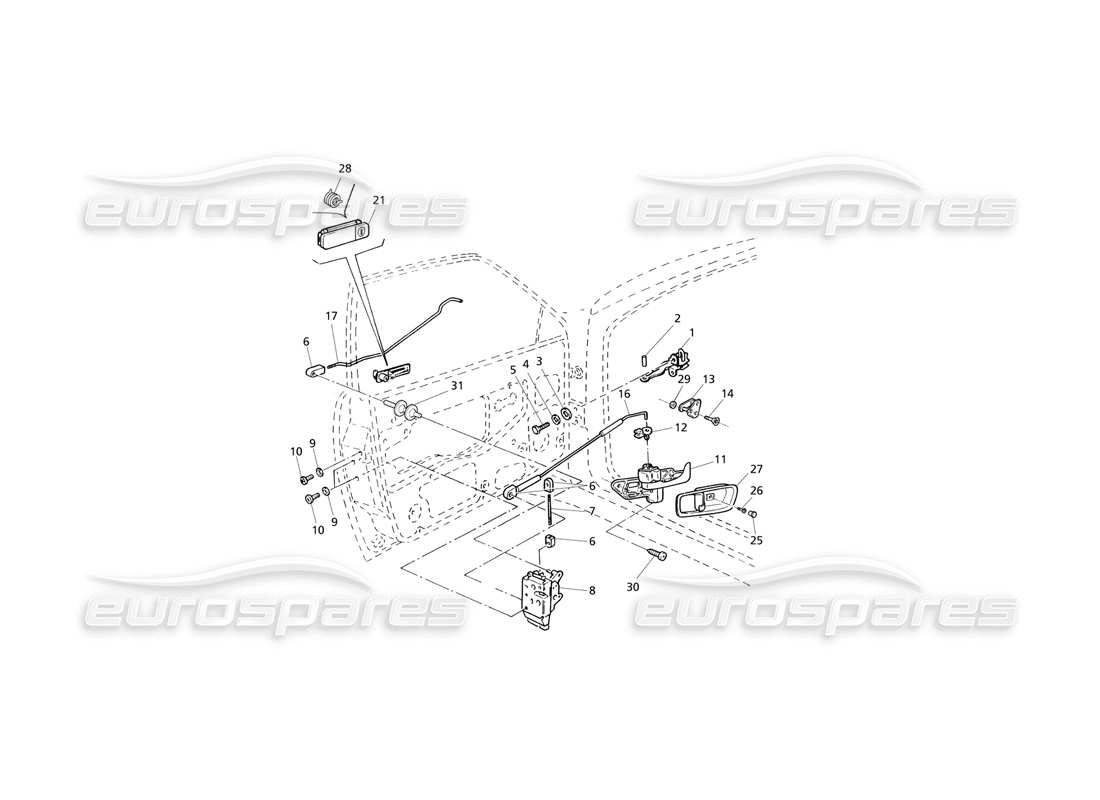

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                  #
                                                  Part number
                                                  Description
                                                  Price
                                                  # 001
                                                  MPN: 374530144
                                                  DOOR TIE ROD
                                                  from £5.91
                                                  from £5.91
                                                  # 002
                                                  MPN: 374500408

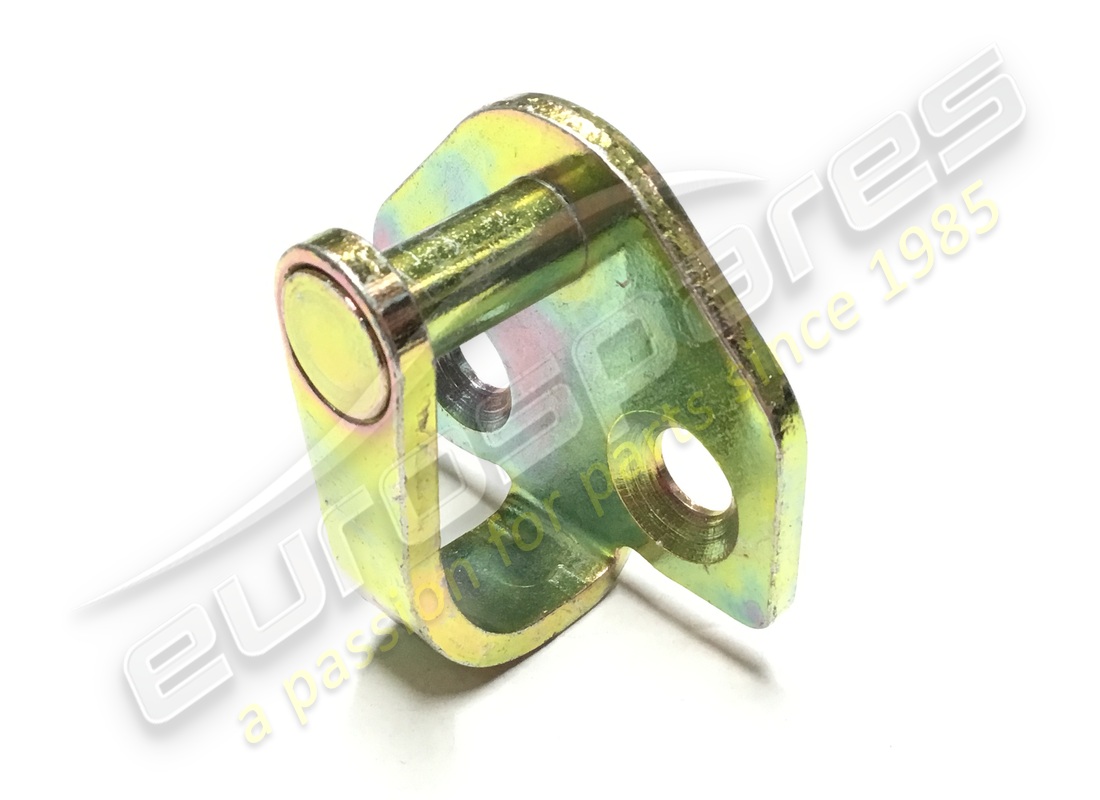

                                                  PIN
                                                  from £2.33
                                                  from £2.33
                                                  # 003
                                                  MPN: 10523401
                                                  WASHER
                                                  from £0.47
                                                  from £0.47
                                                  # 004
                                                  MPN: 135600060
                                                  INDENTED WASHER
                                                  from £0.78
                                                  from £0.78
                                                  # 005
                                                  MPN: 10902121
                                                  SCREW
                                                  from £0.71
                                                  from £0.71
                                                  # 006
                                                  MPN: 53451352
                                                  ELASTIC CONNECTION
                                                  from £0.70
                                                  from £0.70
                                                  # 007
                                                  MPN: 374500382
                                                  PIN
                                                  from £0.99
                                                  from £0.99
                                                  # 008
                                                  MPN: 374500145
                                                  FRONT LH LOCK
                                                  from £51.30
                                                  from £51.30
                                                  # 008
                                                  MPN: 374500146
                                                  FRONT RH LOCK
                                                  from £47.33
                                                  from £47.33
                                                  # 009
                                                  MPN: 30471338
                                                  WASHER
                                                  from £1.08
                                                  from £1.08
                                                  # 010
                                                  MPN: 14778010
                                                  SCREW
                                                  from £1.08
                                                  from £1.08
                                                  This part replaces part number 1477810

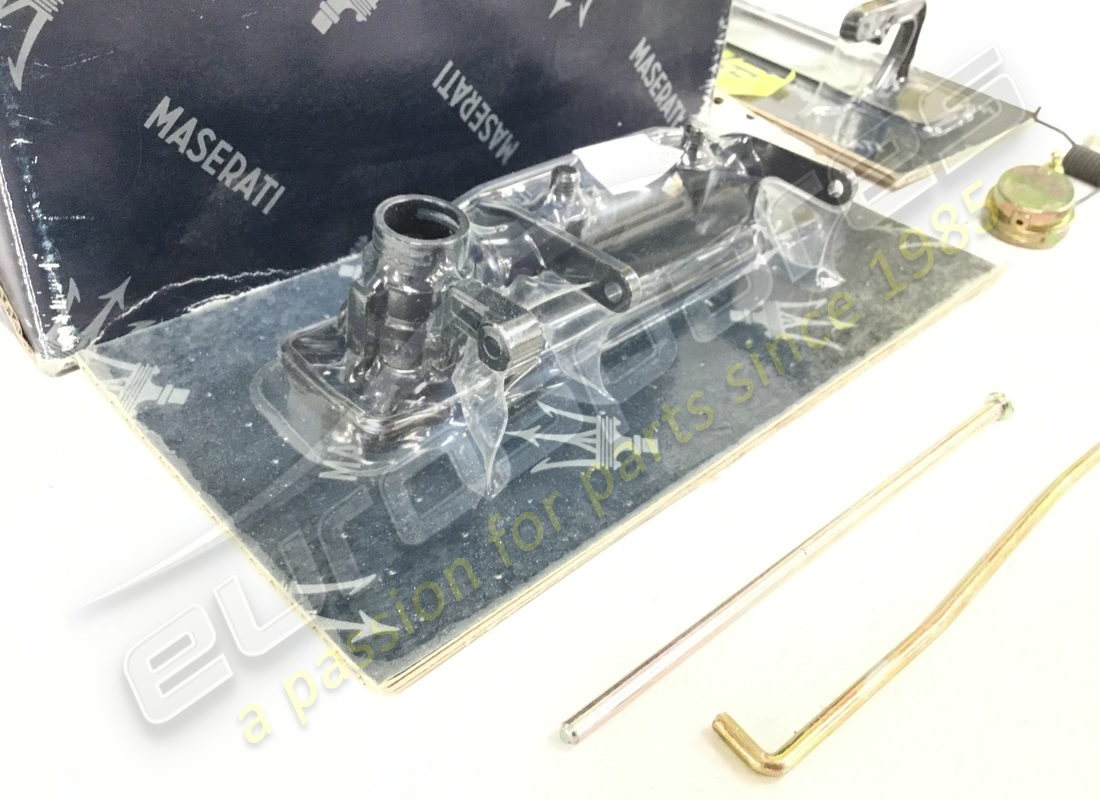

                                                  # 011
                                                  MPN: 374530147

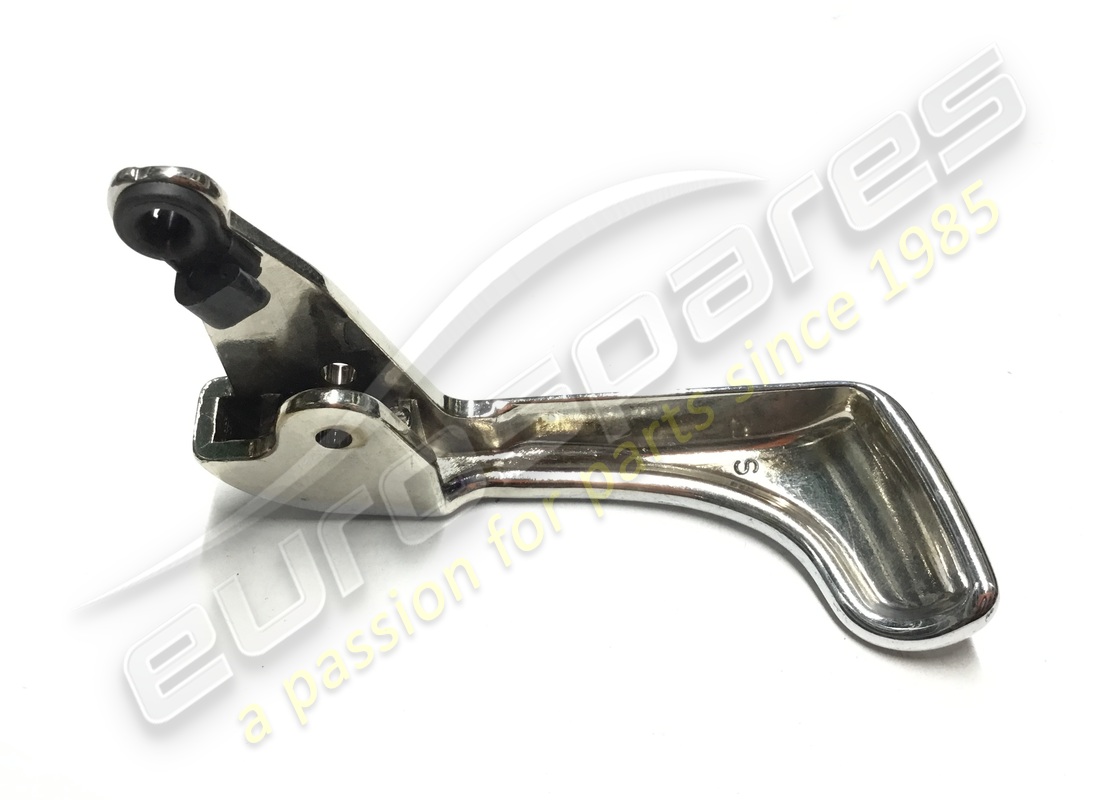

                                                  LH HANDLE ASSY
                                                  from £11.55
                                                  from £11.55
                                                  # 011
                                                  MPN: 374530148

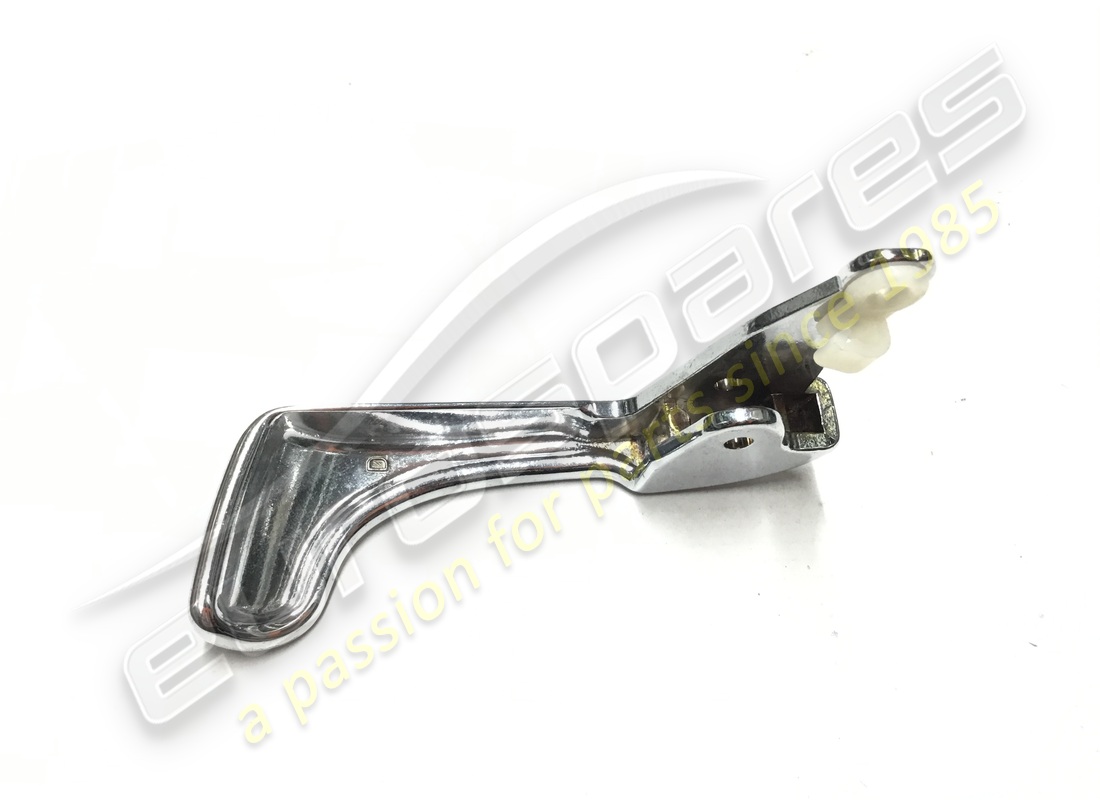

                                                  RH HANDLE ASSY
                                                  from £11.55
                                                  from £11.55
                                                  # 012
                                                  MPN: 374500431
                                                  PAWL
                                                  from £2.02
                                                  from £2.02
                                                  # 013
                                                  MPN: 374500151
                                                  DOOR LOCK HOOK
                                                  from £3.26
                                                  from £3.26
                                                  # 014
                                                  MPN: 374500415
                                                  SCREW
                                                  from £1.32
                                                  from £1.32
                                                  # 016
                                                  MPN: 374530801

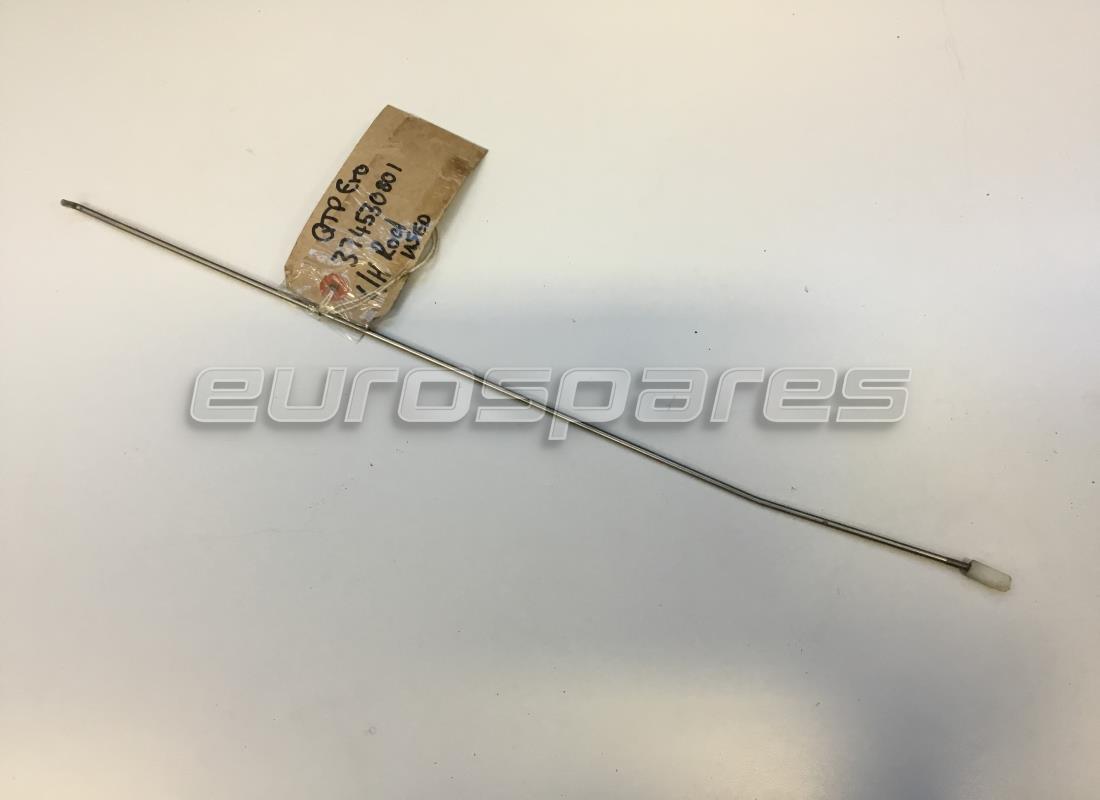

                                                  LH LEVER
                                                  from £5.80
                                                  from £5.80
                                                  This part replaces part number 374530391 - and 1 more. Click to view details
                                                  # 016

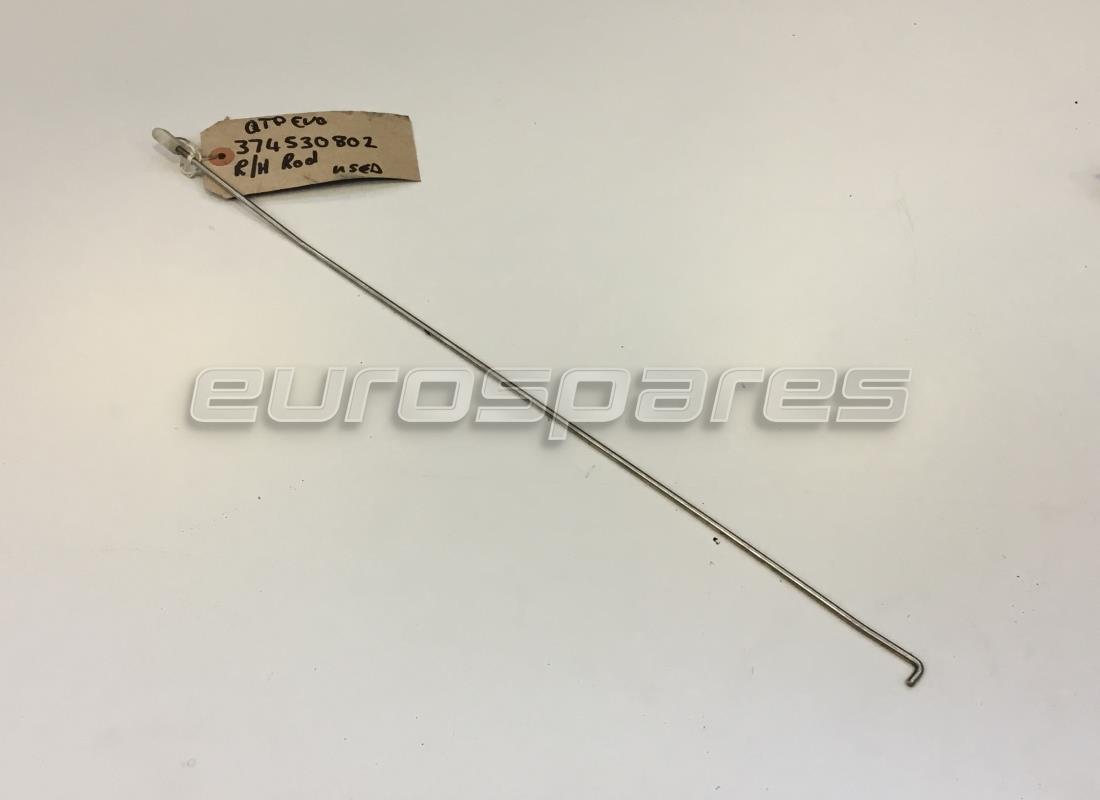

                                                  MPN: 374530802
                                                  RH LEVER
                                                  from £3.19
                                                  from £3.19
                                                  This part replaces part number 374530392 - and 1 more. Click to view details
                                                  # 017
                                                  MPN: 374530803
                                                  LH LEVER
                                                  from £5.30
                                                  from £5.30
                                                  This part replaces part number 374530393 - and 1 more. Click to view details
                                                  # 017
                                                  MPN: 374530804
                                                  RH LEVER
                                                  from £5.30
                                                  from £5.30
                                                  This part replaces part number 374530394 - and 1 more. Click to view details

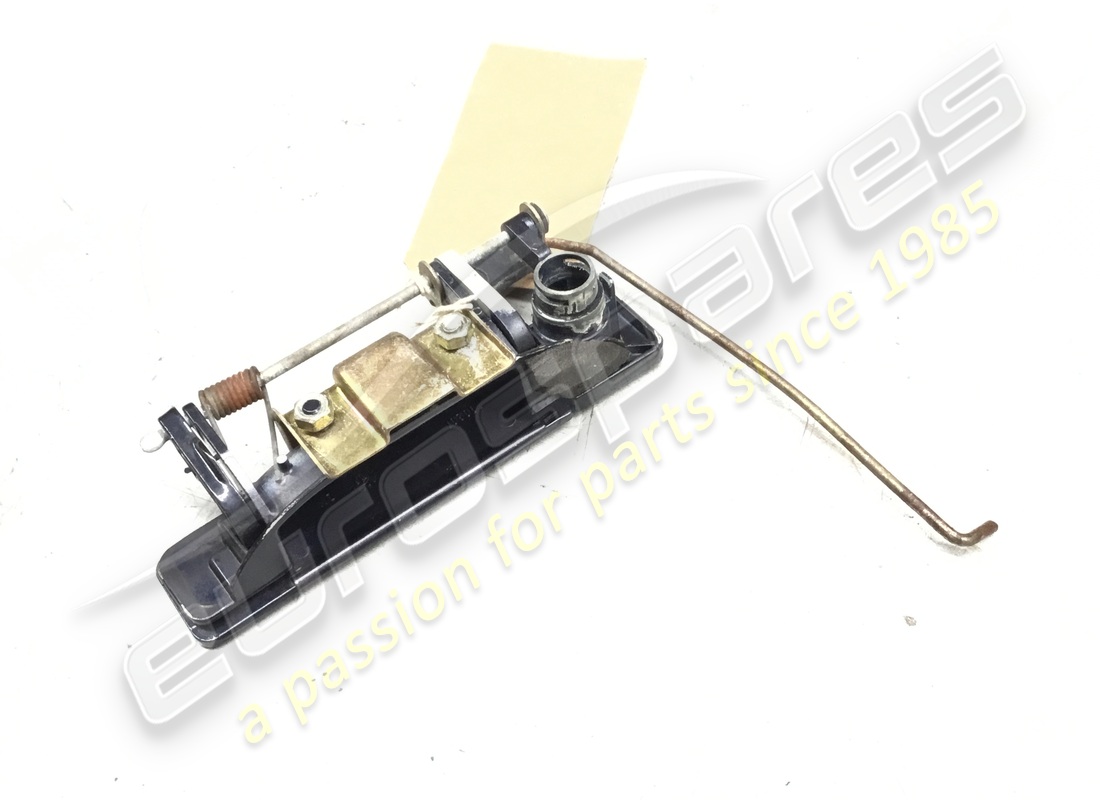

                                                  # 021
                                                  MPN: 374580021
                                                  PRIMERED LH EXTERNAL HANDLE
                                                  from £69.50
                                                  from £69.50
                                                  # 021
                                                  MPN: 374580022
                                                  PRIMERED RH EXTERNAL HANDLE
                                                  from £118.15
                                                  from £118.15
                                                  # 025
                                                  MPN: 374530390
                                                  PLUG
                                                  from £1.16
                                                  from £1.16
                                                  # 026
                                                  MPN: 167590414
                                                  SCREW
                                                  from £1.55
                                                  from £1.55
                                                  # 027
                                                  MPN: 374530372
                                                  RH FRAME
                                                  from £2.45
                                                  from £2.45
                                                  # 027
                                                  MPN: 374530375
                                                  LH COVER
                                                  from £3.68
                                                  from £3.68
                                                  # 028
                                                  MPN: 374500771

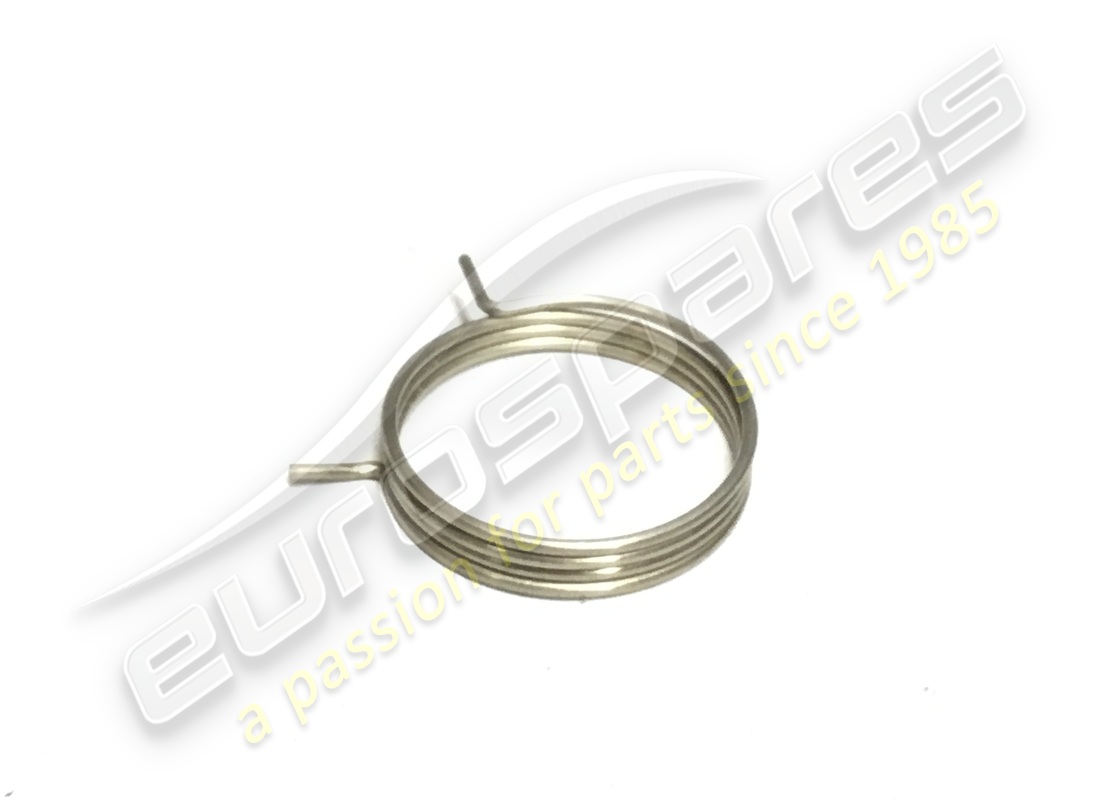

                                                  SPRING
                                                  from £0.64
                                                  from £0.64
                                                  # 029
                                                  MPN: 374500405
                                                  SHIM
                                                  from £2.33
                                                  from £2.33
                                                  # 030
                                                  MPN: 119142160
                                                  SELF THREADING SCREW
                                                  from £0.86
                                                  from £0.86
                                                  # 031
                                                  MPN: 374530785
                                                  BLOCK
                                                  from £0.70
                                                  from £0.70
