055 - Windscreen Wiper and Washer

Maserati QTP V8 Evoluzione Windscreen Wiper and Washer Parts Diagram

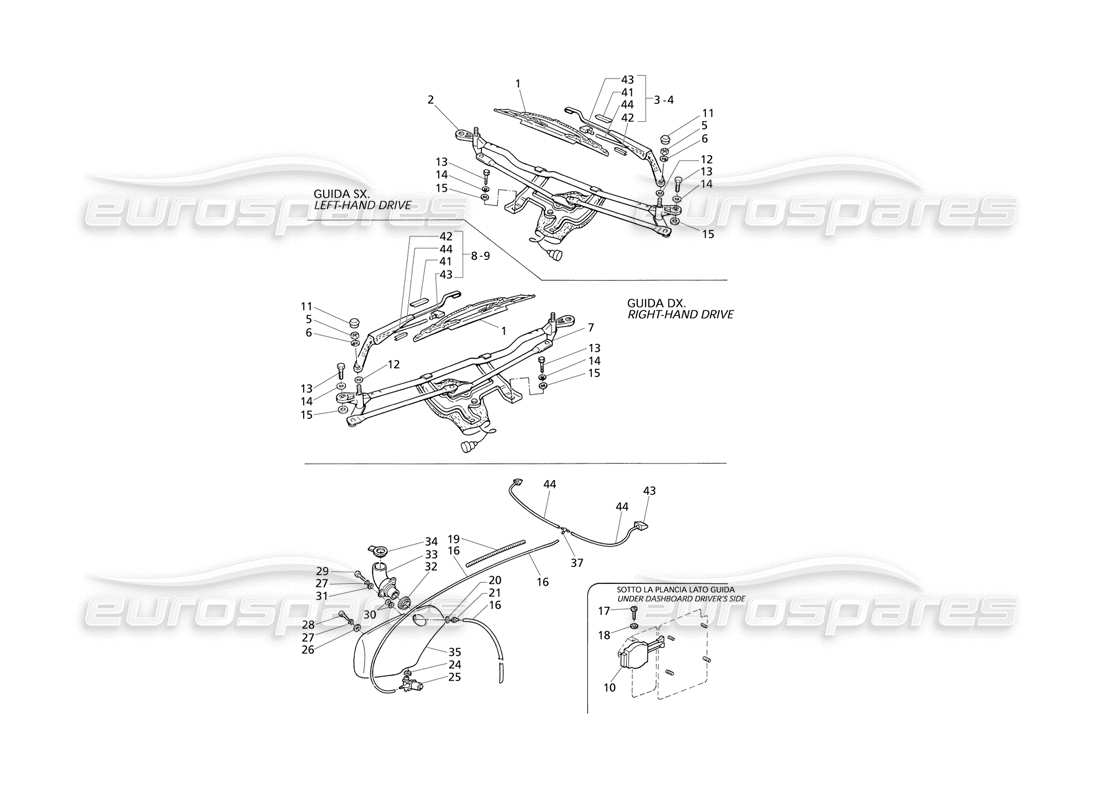

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                        #
                                                                        Part number
                                                                        Description
                                                                        Price
                                                                        # 001
                                                                        MPN: 313352158
                                                                        BLADE WITH SPOILER
                                                                        from £54.28
                                                                        from £54.28
                                                                        This part replaces part number 323356128 - and 2 more. Click to view details
                                                                        # 002
                                                                        MPN: 373380100
                                                                        WINDSHIELD WIPER ASSY
                                                                        from £88.84
                                                                        from £88.84
                                                                        This part replaces part number 373307100 - and 1 more. Click to view details
                                                                        # 003
                                                                        MPN: 373300173
                                                                        DRIVER'S SIDE WIPER ARM, COMPLETE (LH DRIVE)
                                                                        from £19.16
                                                                        from £19.16
                                                                        # 004
                                                                        MPN: 373300173
                                                                        PASSENGER SIDE WIPER ARM, COMPLETE (LH DRIVE)
                                                                        from £19.16
                                                                        from £19.16
                                                                        # 005
                                                                        MPN: 16100821
                                                                        NUT
                                                                        from £0.71
                                                                        from £0.71
                                                                        # 006
                                                                        MPN: 12601379
                                                                        SPRING WASHER
                                                                        from £0.94
                                                                        from £0.94
                                                                        # 007
                                                                        MPN: 373386100
                                                                        WINDSHIELD WIPER ASSY
                                                                        from £115.50
                                                                        from £115.50
                                                                        # 008
                                                                        MPN: 373315171
                                                                        DRIVER'S SIDE WIPER ARM, COMPLETE (RH DRIVE)
                                                                        from £12.44
                                                                        from £12.44
                                                                        # 009
                                                                        MPN: 373315173
                                                                        PASSENGER SIDE WIPER ARM, COMPLETE (RH DRIVE)
                                                                        from £12.19
                                                                        from £12.19
                                                                        # 010
                                                                        MPN: 373300202
                                                                        WINDSHIELD WIPER INTERMITTENCE RELAY
                                                                        from £64.39
                                                                        from £64.39
                                                                        # 011
                                                                        MPN: 393350327
                                                                        CUP
                                                                        from £2.33
                                                                        from £2.33
                                                                        # 012
                                                                        MPN: 136110110
                                                                        SHIM
                                                                        from £2.18
                                                                        from £2.18
                                                                        # 013
                                                                        MPN: 10902621
                                                                        SCREW
                                                                        Supersession
                                                                        Supersession
                                                                        # 014
                                                                        MPN: 12601279
                                                                        SPRING WASHER
                                                                        from £0.47
                                                                        from £0.47
                                                                        # 015
                                                                        MPN: 163030060
                                                                        WASHER
                                                                        from £1.08
                                                                        from £1.08
                                                                        # 016
                                                                        MPN: 30871323
                                                                        PIPING
                                                                        - Section In meters - order minimum amount of 1 m or multiples
                                                                        from £1.08
                                                                        from £1.08
                                                                        This part replaces part number 398150312 - and 1 more. Click to view details
                                                                        # 017
                                                                        MPN: 112804008
                                                                        SCREW
                                                                        # 018
                                                                        MPN: 10519301
                                                                        WASHER
                                                                        from £12.73
                                                                        from £12.73
                                                                        # 019
                                                                        MPN: 97218
                                                                        CORRUGATED PIPE
                                                                        - Section In meters - order minimum amount of 1 m or multiples
                                                                        from £1.87
                                                                        from £1.87
                                                                        This part replaces part number 188340 - and 1 more. Click to view details
                                                                        # 020
                                                                        MPN: 330874000
                                                                        GROMMET
                                                                        from £1.08
                                                                        from £1.08
                                                                        # 021
                                                                        MPN: 312230461
                                                                        UNION
                                                                        from £0.99
                                                                        from £0.99
                                                                        # 024
                                                                        MPN: 30331302
                                                                        GASKET
                                                                        from £0.70
                                                                        from £0.70
                                                                        # 025
                                                                        MPN: 373300183
                                                                        WINDSHIELD WASHER PUMP
                                                                        from £15.14
                                                                        from £15.14
                                                                        This part replaces part number 330907620
                                                                        # 026
                                                                        MPN: 30331302
                                                                        FLAT WASHER
                                                                        from £0.70
                                                                        from £0.70
                                                                        # 027
                                                                        MPN: 12601279
                                                                        SPRING WASHER
                                                                        from £0.47
                                                                        from £0.47
                                                                        # 028
                                                                        MPN: 112806016
                                                                        SCREW
                                                                        # 029
                                                                        MPN: 14778410
                                                                        SCREW
                                                                        from £1.32
                                                                        from £1.32
                                                                        # 030
                                                                        MPN: 398150324
                                                                        SHIM
                                                                        from £1.55
                                                                        from £1.55
                                                                        # 032
                                                                        MPN: 398150328
                                                                        GASKET
                                                                        from £23.04
                                                                        from £23.04
                                                                        # 033
                                                                        MPN: 398150192
                                                                        PIPE UNION
                                                                        from £4.15
                                                                        from £4.15
                                                                        This part replaces part number 398150329
                                                                        # 034
                                                                        MPN: 398150327
                                                                        PLUG
                                                                        from £1.08
                                                                        from £1.08
                                                                        # 035
                                                                        MPN: 398150132
                                                                        Tank
                                                                        from £44.86
                                                                        from £44.86
                                                                        This part replaces part number 398150024
                                                                        # 037
                                                                        MPN: 30811310
                                                                        THREE WAY UNION
                                                                        from £0.79
                                                                        from £0.79
                                                                        # 041
                                                                        MPN: 373300336
                                                                        HOSE RETAINER ON WINDSHIELD WIPER ARM
                                                                        from £3.09
                                                                        from £3.09
                                                                        # 042
                                                                        MPN: 373300337
                                                                        SIDE HOSE RETAINER ON WINDSHIELD WIPER ARM
                                                                        from £1.08
                                                                        from £1.08
                                                                        # 043
                                                                        MPN: 373300335
                                                                        NOZZLE
                                                                        from £4.34
                                                                        from £4.34
                                                                        # 044
                                                                        MPN: 378700323
                                                                        PIPING
                                                                        - Section In meters - order minimum amount of 1 m or multiples
                                                                        from £0.99
                                                                        from £0.99
