maserati qtp v8 evoluzione inner trims: parcel shelf, blinds parts diagram

064.1 - Inner Trims: Parcel Shelf, Blinds

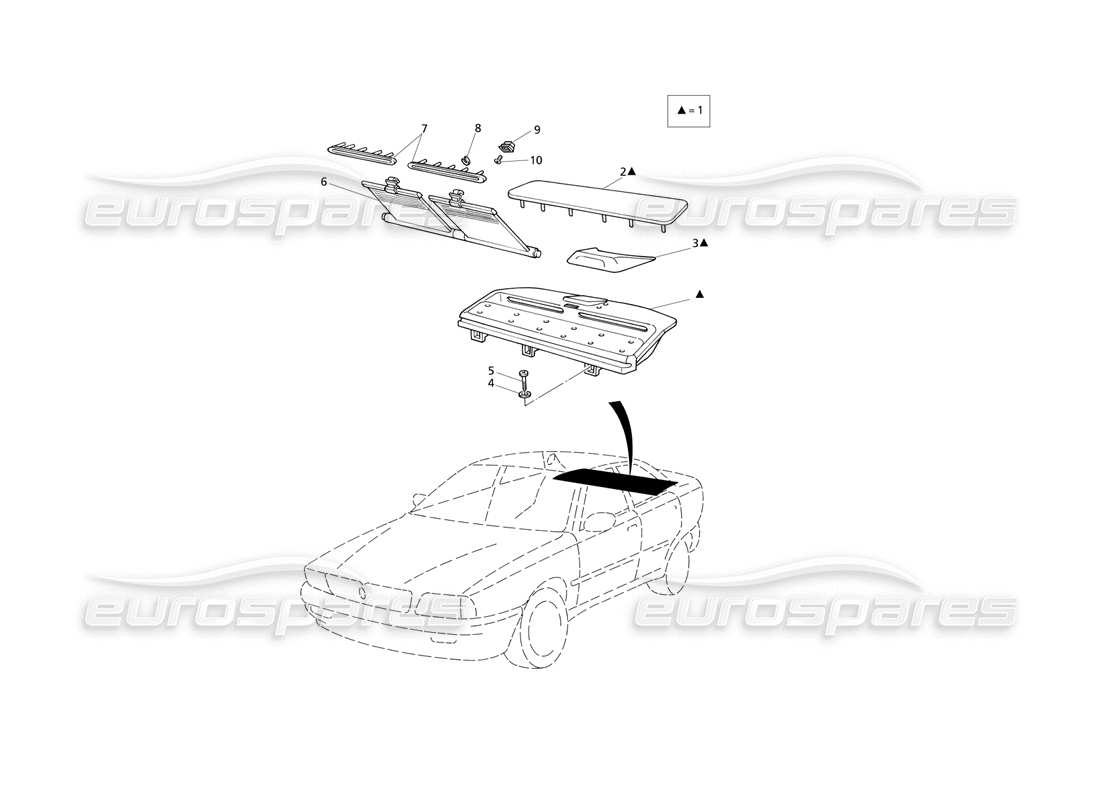

Maserati QTP V8 Evoluzione Inner Trims: Parcel Shelf, Blinds Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
            #
            Part number
            Description
            Price
            # 001
            MPN: 9819022..
            COMPLETE PARCEL SHELF
            - in the order, add the two digits of leather color or - alcantara code
            Supersession
            Supersession
            # 002
            MPN: 9819023..
            PARCEL SHELF FINISHER
            - in the order, add the two digits of leather color or - alcantara code
            # 003
            MPN: 9819024..
            STOP LIGHT TRIM
            - in the order, add the two digits of leather color or - alcantara code
            Supersession
            Supersession
            # 004
            MPN: 14496400
            WASHER
            - As necessary
            from £0.85
            from £0.85
            # 005
            MPN: 15958007
            SELF THREADING SCREW
            - As necessary
            from £1.08
            from £1.08
            # 006
            MPN: 378130120
            SUNSHADE
            from £15.53
            from £15.53
            # 007
            MPN: 378180121
            SUNSHADE FINISH
            from £1.68
            from £1.68
            # 008
            MPN: 378130303
            WASHER
            from £0.69
            from £0.69
            # 009
            MPN: 378130206
            SUNSHADE HOOK
            from £0.47
            from £0.47
            # 010
            MPN: 378130439
            SELF THREADING SCREW
            from £1.08
            from £1.08
