maserati qtp v8 evoluzione front seat parts diagram

066 - FRONT SEAT

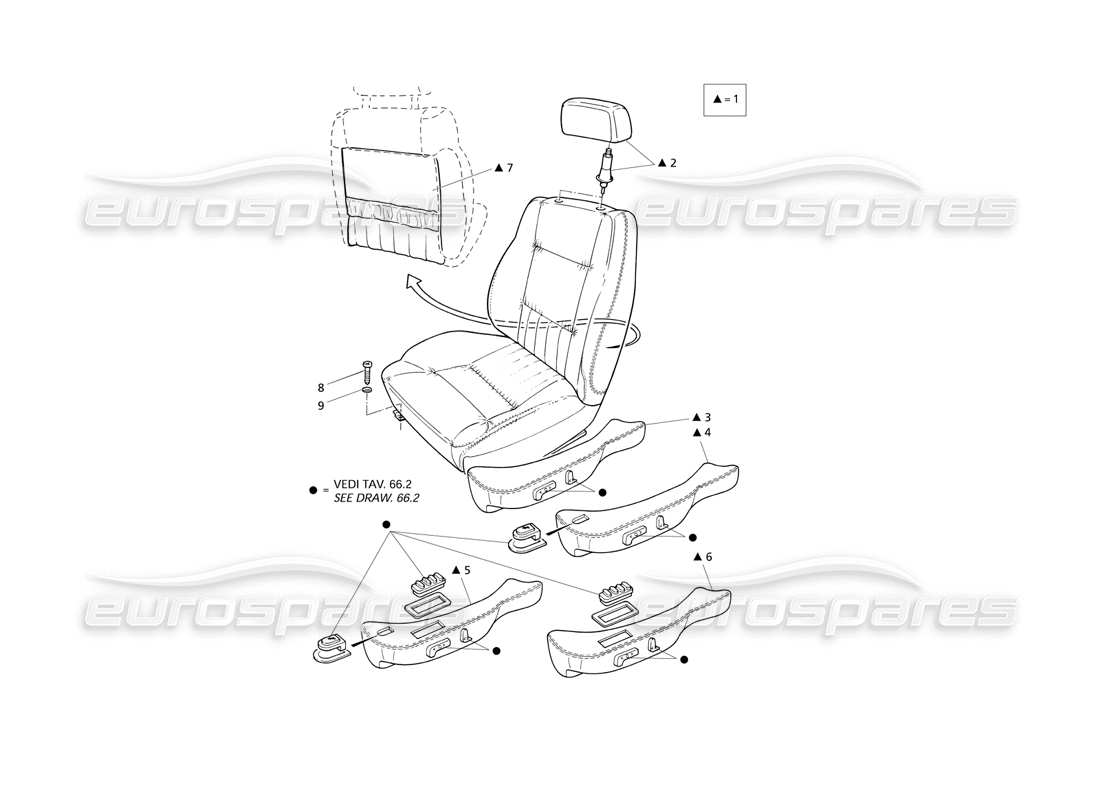

Maserati QTP V8 Evoluzione Front Seat Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Price
      # 000
      MPN: QPS4EVOBLA
      COMPLETE LEATHER INTERIOR
      Black
      # 000
      MPN: QPS4EVOBLUE
      COMPLETE LEATHER INTERIOR
      Blue
      # 000
      MPN: QPS4EVOINT
      COMPLETE LEATHER INTERIOR
      Cream
      # 001
      MPN: 9819051..
      COMPL. BASIC FRONT LH SEAT. LH DRIVE
      - in the order, add the two digits of leather color or - alcantara code
      # 001
      MPN: 9819052..
      COMPL. BASIC FRONT RH SEAT. LH DRIVE
      - in the order, add the two digits of leather color or - alcantara code
      Supersession
      Supersession
      # 001
      MPN: 9819053..
      COMPL. HEATED FRONT LH SEAT. LH DRIVE
      - in the order, add the two digits of leather color or - alcantara code
      # 001
      MPN: 9819054..
      COMPL. HEATED FRONT RH SEAT. LH DRIVE
      - in the order, add the two digits of leather color or - alcantara code
      # 001
      MPN: 9819055..
      COMPL. FRONT LH SEAT W. MEMO + HEAT. LH DRIVE
      - in the order, add the two digits of leather color or - alcantara code
      # 001
      MPN: 9819056..
      COMPL. FRONT RH SEAT W. MEMO + HEAT. LH DRIVE
      - in the order, add the two digits of leather color or - alcantara code
      Supersession
      Supersession
      # 001
      MPN: 9819057..
      COMPL. FRONT LH SEAT W. MEMORY LH DRIVE
      - in the order, add the two digits of leather color or - alcantara code
      # 001
      MPN: 9819058..
      COMPL. FRONT RH SEAT W. MEMORY LH DRIVE
      - in the order, add the two digits of leather color or - alcantara code
      # 001
      MPN: 9819059..
      COMPL. BASIC FRONT LH SEAT RH DRIVE
      - in the order, add the two digits of leather color or - alcantara code
      # 001
      MPN: 9819060..
      COMPL. BASIC FRONT RH SEAT RH DRIVE
      - in the order, add the two digits of leather color or - alcantara code
      # 001
      MPN: 9819061..
      COMPL. HEATED FRONT LH SEAT RH DRIVE
      - in the order, add the two digits of leather color or - alcantara code
      # 001
      MPN: 9819062..
      COMPL. HEATED FRONT RH SEAT RH DRIVE
      - in the order, add the two digits of leather color or - alcantara code
      # 002
      MPN: 9819063..
      FIXED HEAD REST WITH ARTICULATED JOINTS
      - In the order, add the two digits of leather color or - alcantara code - Applies to basic version with heating
      # 002
      MPN: 9819064..
      ADJUSTABLE HEAD REST WITH ARTICULATED JOINTS
      - In the order, add the two digits of leather color or - alcantara code - Applies to memory + heating version
      # 003
      MPN: 9819065..
      BASIC LH SEAT GUARD
      - in the order, add the two digits of leather color or - alcantara code
      # 003
      MPN: 9819066..
      BASIC RH SEAT GUARD
      - in the order, add the two digits of leather color or - alcantara code
      Supersession
      Supersession
      # 004
      MPN: 9819067..
      LH HEATED SEAT GUARD
      - in the order, add the two digits of leather color or - alcantara code
      # 004
      MPN: 9819068..
      RH HEATED SEAT GUARD
      - in the order, add the two digits of leather color or - alcantara code
      Supersession
      Supersession
      # 005
      MPN: 9819069..
      LH SEAT GUARD
      - in the order, add the two digits of leather color or - alcantara code
      # 006
      MPN: 9819070..
      LH SEAT GUARD
      - in the order, add the two digits of leather color or - alcantara code
      # 007
      MPN: 9819071..
      SEAT BASIC REAR PANEL
      - in the order, add the two digits of leather color or - alcantara code
      # 008
      MPN: 376900302
      SCREW
      from £4.26
      from £4.26
      # 009
      MPN: 376900303
      WASHER
      from £1.08
      from £1.08
