047 - braking devices on rear wheels

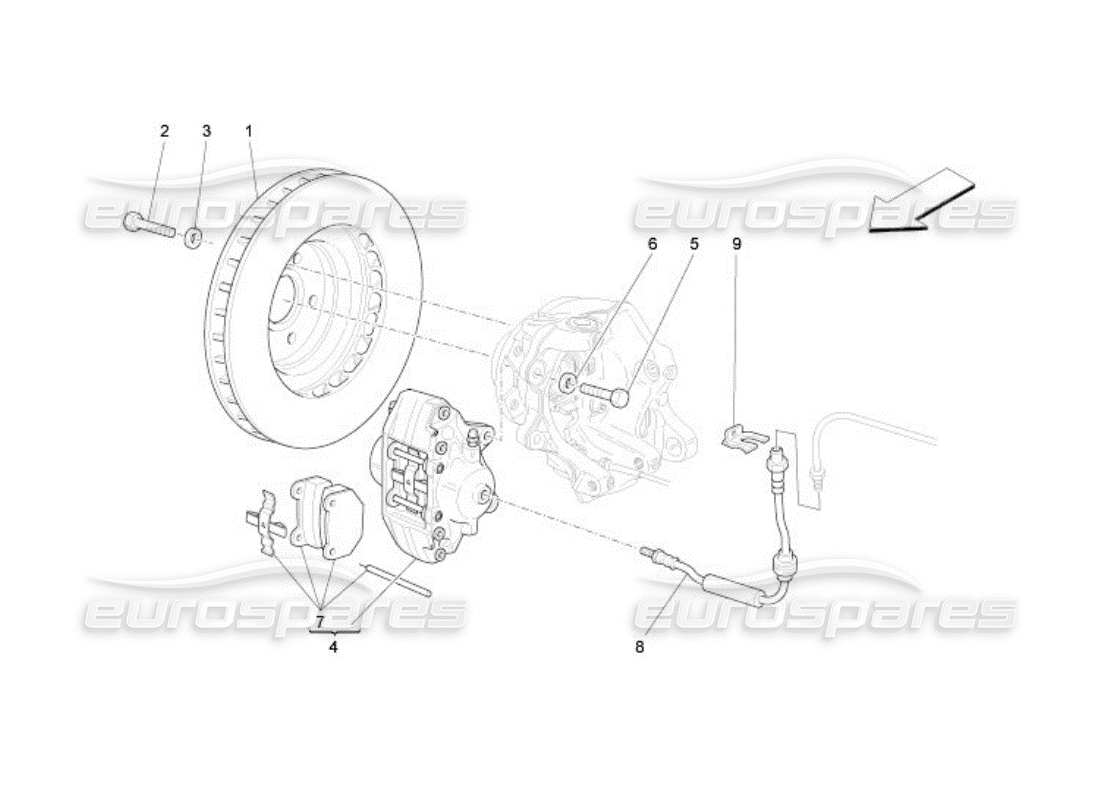

Maserati QTP. (2005) 4.2 Braking Devices On Rear Wheels Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 00
MPN: 228411/A
REAR BRAKE KIT
includes 1x 980139064 and 2x 228411 Pack sport version, Manufactured In Italy Chassis Number Required
# 01
MPN: 228411
REAR BRAKE DISC
(Option - Sports Package - Model Year 2008 >) (priced per disc) Chassis Number Required O/D 330mm, Thickness 28mm
from £138.20
from £138.20
# 02
MPN: 16043424
SCREW
from £0.51
from £0.51
# 03
MPN: 12601374
WASHER
from £0.53
from £0.53
# 04
-
COMPLETE RH REAR CALIPER
# 04
-
COMPLETE LH REAR CALIPER
# 05
MPN: 15970934
SCREW
from £0.82
from £0.82
# 06
MPN: 11198374
WASHER
from £0.47
from £0.47
This part replaces part number 675000618
# 07
MPN: 980139069
KIT OF REAR PADS
from £93.45
from £93.45
This part replaces part number 206676
# 07
MPN: 980139069
KIT OF REAR PADS
from £93.45
from £93.45
This part replaces part number 206676
# 08
-
FLEXIBLE PIPE TO REAR CALIPERS
# 09
MPN: 181897
CLIP
from £1.08
from £1.08
This part replaces part number 252814
