110 - crank mechanism

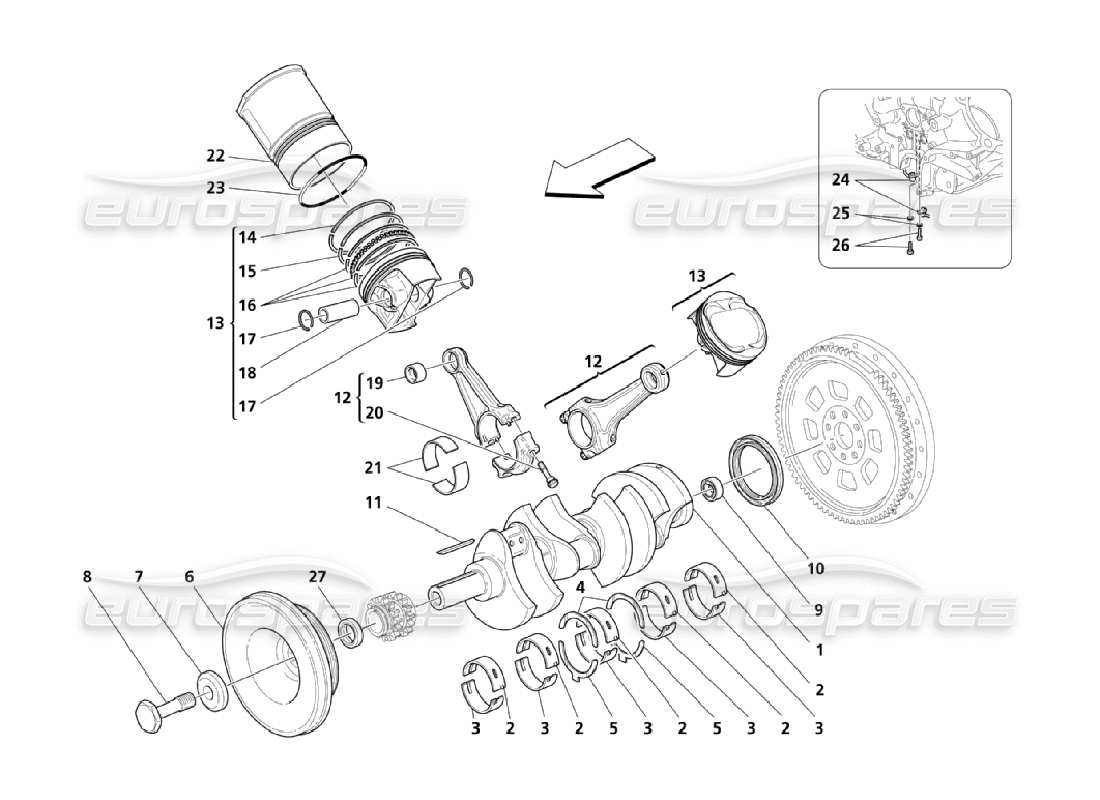

Maserati QTP. (2006) 4.2 Crank Mechanism Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 193169
crankshaft
Valid till engine Nr. 107296
from £984.47
from £984.47
# 001
MPN: 227087
crankshaft
Valid from engine Nr. 107297
from £1,105.08
from £1,105.08
# 002
MPN: 193000
UPPER HALF BEARING
Blue - Valid till engine Nr. 107296
from £11.87
from £11.87
# 002
MPN: 193001
UPPER HALF BEARING
Yellow - Valid till engine Nr. 107296
from £14.92
from £14.92
# 002
MPN: 193002
UPPER HALF BEARING
Green - Standard - Valid till engine Nr. 107296
from £14.92
from £14.92
# 002
MPN: 195307
UPPER HALF BEARING
Blue - Valid from engine Nr. 107297
from £32.05
from £32.05
# 002
MPN: 195308
UPPER HALF BEARING
Yellow - Valid from engine Nr. 107297
from £15.14
from £15.14
# 002
MPN: 198910
UPPER HALF BEARING
Green - Standard - Valid from engine Nr. 107297
from £15.14
from £15.14
# 003
MPN: 193003
LOWER HALF BEARING
Blue - Valid till engine Nr. 107296
from £10.58
from £10.58
# 003
MPN: 193004
LOWER HALF BEARING
Yellow - Valid till engine Nr. 107296
from £11.65
from £11.65
# 003
MPN: 193005
LOWER HALF BEARING
Green - Standard - Valid till engine Nr. 107296
from £11.65
from £11.65
# 003
MPN: 200194
LOWER HALF BEARING
Blue - Valid from engine Nr. 107297
from £16.70
from £16.70
# 003
MPN: 200195
LOWER HALF BEARING
Yellow - Valid from engine Nr. 107297
from £12.86
from £12.86
# 003
MPN: 200196
LOWER HALF BEARING
Green - Standard - Valid from engine Nr. 107297
from £14.07
from £14.07
# 004
MPN: 179539
UPPER SHIM
Standard - Valid till engine Nr. 107296
from £34.71
from £34.71
# 004
MPN: 179540
UPPER SHIM
1st Oversize - Valid till engine Nr. 107296
from £43.42
from £43.42
# 004
MPN: 179541
UPPER SHIM
2nd Oversize - Valid till engine Nr. 107296
from £43.42
from £43.42
# 004
MPN: 196648
UPPER SHIM
Standard - Valid from engine Nr. 107297
from £176.21
from £176.21
# 004
MPN: 201220
UPPER SHIM
1st Oversize - Valid from engine Nr. 107297
from £130.92
from £130.92
# 004
MPN: 201224
UPPER SHIM
2nd Oversize - Valid from engine Nr. 107297
from £130.92
from £130.92
# 005
MPN: 179536
LOWER SHIM
2nd Oversize - Valid till engine Nr. 107296
from £43.42
from £43.42
# 005
MPN: 179537
LOWER SHIM
1st Oversize - Valid till engine Nr. 107296
from £43.42
from £43.42
# 005
MPN: 179538
LOWER SHIM
Standard - Valid till engine Nr. 107296
from £23.38
from £23.38
# 005
MPN: 196649
LOWER SHIM
Standard - Valid from engine Nr. 107297
from £60.01
from £60.01
# 005
MPN: 201225
LOWER SHIM
1st Oversize - Valid from engine Nr. 107297
from £130.92
from £130.92
# 005
MPN: 201226
LOWER SHIM
2nd Oversize - Valid from engine Nr. 107297
from £130.92
from £130.92
# 006
MPN: 187469
torsion damper
from £938.06
from £938.06
# 007
MPN: 192106
WASHER
from £3.01
from £3.01
# 008
MPN: 196216
SCREW FOR DAMPER FIXING
from £25.34
from £25.34
This part replaces part number 192005 - and 1 more. Click to view details
# 009
MPN: 103877
PILOT BEARING
not as spare part - use part number: 235062
from £15.20
from £15.20
This part replaces part number 235062
# 009
MPN: 235062
BEARING
(replaces: 103877)
Supersession
Supersession
# 010
MPN: 200323
SEAL RING
from £24.95
from £24.95
# 011
MPN: 186201
Key
from £0.50
from £0.50
# 012
MPN: 192402
COMPLETE CONNECTING ROD
Valid till engine Nr. 107296
from £140.53
from £140.53
This part replaces part number 175360 which we have in stock - and 1 more. Click to view details
# 012
MPN: 248888
COMPLETE CONNECTING ROD
Valid from engine Nr. 107297
# 013
MPN: 198410
RH SIDE ENGINE PISTON WITH RINGS
from £111.61
from £111.61
This part replaces part number 187198 - and 2 more. Click to view details
# 013
MPN: 198412
LH SIDE ENGINE PISTON WITH RINGS
from £111.61
from £111.61
This part replaces part number 187199 - and 2 more. Click to view details
# 014
MPN: 175612
SEAL RING
1st groove
from £64.92
from £64.92
This part replaces part number 187955
# 015
MPN: 187201
SEAL RING
2nd groove
from £18.63
from £18.63
# 016
MPN: 175614
OIL SCRAPING RING
3nd groove
from £63.04
from £63.04
This part replaces part number 180022
# 017
MPN: 178890
STOP RING
from £3.27
from £3.27
# 018
MPN: 175367
PIN
from £39.38
from £39.38
# 019
MPN: 184909
BUSHING
Valid till engine Nr. 107296
from £22.80
from £22.80
# 019
MPN: 208094
BUSHING
Valid from engine Nr. 107297
from £15.50
from £15.50
# 020
MPN: 177159
CONNECTING ROD TIGHTENING SCREW
Valid till engine Nr. 107296
from £22.70
from £22.70
# 020
MPN: 215530
CONNECTING ROD TIGHTENING SCREW
Valid from engine Nr. 107297
from £44.89
from £44.89
# 021
MPN: 188520
CONNECTING ROD HALF BEARING
Brown - Valid till engine Nr. 107296
from £4.55
from £4.55
This part replaces part number 176151
# 021
MPN: 188521
CONNECTING ROD HALF BEARING
Green - Standard - Valid till engine Nr. 107296
from £6.76
from £6.76
This part replaces part number 176150
# 021
MPN: 190265
CONNECTING ROD HALF BEARING
Yellow - Valid till engine Nr. 107296
from £9.66
from £9.66
This part replaces part number 176152
# 021
MPN: 204290
CONNECTING ROD HALF BEARING
Red - Standard - Valid from engine Nr. 107297
from £4.90
from £4.90
# 021
MPN: 204291
CONNECTING ROD HALF BEARING
Blue - Valid from engine Nr. 107297
from £4.90
from £4.90
# 021
MPN: 204292
CONNECTING ROD HALF BEARING
Black - Valid from engine Nr. 107297
from £4.90
from £4.90
# 022
MPN: 190770
CYLINDER LINER
from £110.41
from £110.41
# 023
MPN: 186251
GASKET
Supplied also in the crankcase gasket revision kit (cod. 980020004)
from £1.28
from £1.28
# 024
MPN: 175657
PISTONS COOLING NOZZLE
from £5.11
from £5.11
# 025
MPN: 11181474
WASHER
from £0.47
from £0.47
# 026
MPN: 14302921
SCREW
from £0.51
from £0.51
# 027
MPN: 188717
FRONT CRANKSHAFT SEAL
from £16.03
from £16.03
This part replaces part number 186883
-4.2-part-diagram-111.webp "MASERATI QTP. (2006) 4.2 BELTS AUXILIARY PARTS PARTS DIAGRAM")
-4.2-part-diagram-120.webp "MASERATI QTP. (2006) 4.2 RH CYLINDER HEAD PARTS DIAGRAM")
-4.2-part-diagram-121.webp "MASERATI QTP. (2006) 4.2 LH CYLINDER HEAD PARTS DIAGRAM")
-4.2-part-diagram-122.webp "MASERATI QTP. (2006) 4.2 CAMSHAFTS FOR RH CYLINDER HEAD PARTS DIAGRAM")
-4.2-part-diagram-123.webp "MASERATI QTP. (2006) 4.2 CAMSHAFTS FOR LH CYLINDER HEAD PARTS DIAGRAM")
-4.2-part-diagram-124.webp "MASERATI QTP. (2006) 4.2 TIMING PARTS DIAGRAM")
-4.2-part-diagram-125.webp "MASERATI QTP. (2006) 4.2 VALVES PARTS DIAGRAM")
-4.2-part-diagram-126.webp "MASERATI QTP. (2006) 4.2 HYDRAULICS FOR TIMING PARTS DIAGRAM")
-4.2-part-diagram-140.webp "MASERATI QTP. (2006) 4.2 AIR INTAKE MANIFOLD AND THROTTLE HOLDER PARTS DIAGRAM")
-4.2-part-diagram-141.webp "MASERATI QTP. (2006) 4.2 AIR FILTER, INTAKE AND CONVEYOR PARTS DIAGRAM")
-4.2-part-diagram-142.webp "MASERATI QTP. (2006) 4.2 FUEL TANKS PARTS DIAGRAM")
-4.2-part-diagram-143a.webp "MASERATI QTP. (2006) 4.2 FUEL PUMPS AND PIPING - VALID TILL CAR 24274 PARTS DIAGRAM")
-4.2-part-diagram-143b.webp "MASERATI QTP. (2006) 4.2 FUEL PUMPS AND PIPING - VALID FROM CAR 24275 PARTS DIAGRAM")
-4.2-part-diagram-144.webp "MASERATI QTP. (2006) 4.2 FUEL VAPORS RECYCLE SYSTEM PARTS DIAGRAM")
-4.2-part-diagram-150.webp "MASERATI QTP. (2006) 4.2 ADDITIONAL AIR SYSTEM PARTS DIAGRAM")
-4.2-part-diagram-160.webp "MASERATI QTP. (2006) 4.2 LUBRICATION: PIPING AND RECOVER PARTS DIAGRAM")
-4.2-part-diagram-161.webp "MASERATI QTP. (2006) 4.2 LUBRICATION: PUMP AND FILTER PARTS DIAGRAM")
-4.2-part-diagram-162.webp "MASERATI QTP. (2006) 4.2 HEAT EXCHANGER PARTS DIAGRAM")
-4.2-part-diagram-163.webp "MASERATI QTP. (2006) 4.2 BLOW - BY SYSTEM PARTS DIAGRAM")
-4.2-part-diagram-170.webp "MASERATI QTP. (2006) 4.2 COOLING SYSTEM: RADIATORS AND AIR CONVEYORS PARTS DIAGRAM")
-4.2-part-diagram-171.webp "MASERATI QTP. (2006) 4.2 COOLING SYSTEM: NOURICE AND PIPING PARTS DIAGRAM")
-4.2-part-diagram-172.webp "MASERATI QTP. (2006) 4.2 COOLING SYSTEM: WATER PUMP PARTS DIAGRAM")
-4.2-part-diagram-180.webp "MASERATI QTP. (2006) 4.2 PRECATALYST AND CATALYST PARTS DIAGRAM")
-4.2-part-diagram-181.webp "MASERATI QTP. (2006) 4.2 SILENCERS PARTS DIAGRAM")
-4.2-part-diagram-190.webp "MASERATI QTP. (2006) 4.2 ELECTRONIC CONTROL: INJECTION AND PHASE CHECK PARTS DIAGRAM")
-4.2-part-diagram-191.webp "MASERATI QTP. (2006) 4.2 ELECTRONIC CONTROL: ENGINE STARTING PARTS DIAGRAM")
-4.2-part-diagram-201.webp "MASERATI QTP. (2006) 4.2 HYDRAULIC CONTROLS FOR F1 GEARBOX PARTS DIAGRAM")
-4.2-part-diagram-211.webp "MASERATI QTP. (2006) 4.2 CLUTCH DISC & HOUSING FOR F1 GEARBOX PARTS DIAGRAM")
-4.2-part-diagram-290.webp "MASERATI QTP. (2006) 4.2 CLUTCH ELECTRONIC CONTROLS FOR F1 GEARBOX PARTS DIAGRAM")
-4.2-part-diagram-301.webp "MASERATI QTP. (2006) 4.2 DRIVER CONTROLS FOR F1 GEARBOX PARTS DIAGRAM")
-4.2-part-diagram-310.webp "MASERATI QTP. (2006) 4.2 GEARS HOUSING PARTS DIAGRAM")
-4.2-part-diagram-311.webp "MASERATI QTP. (2006) 4.2 MAIN SHAFT GEARS PARTS DIAGRAM")
-4.2-part-diagram-312.webp "MASERATI QTP. (2006) 4.2 LAY SHAFT GEARS PARTS DIAGRAM")
-4.2-part-diagram-313.webp "MASERATI QTP. (2006) 4.2 INSIDE GEARBOX CONTROLS PARTS DIAGRAM")
-4.2-part-diagram-321.webp "MASERATI QTP. (2006) 4.2 REAR DIFFERENTIAL AND AXLE SHAFTS PARTS DIAGRAM")
-4.2-part-diagram-330.webp "MASERATI QTP. (2006) 4.2 TRANSMISSION TUBE PARTS DIAGRAM")
-4.2-part-diagram-340.webp "MASERATI QTP. (2006) 4.2 GEARBOX CONTROL HYDRAULICS: POWER UNIT PARTS DIAGRAM")
-4.2-part-diagram-341.webp "MASERATI QTP. (2006) 4.2 GEARBOX CONTROL HYDRAULICS: TANK AND PUMP PARTS DIAGRAM")
-4.2-part-diagram-350.webp "MASERATI QTP. (2006) 4.2 LUBRICATION AND COOLING FOR GEARBOX OIL PARTS DIAGRAM")
-4.2-part-diagram-390.webp "MASERATI QTP. (2006) 4.2 ELECTRONIC CONTROLS (GEARBOX) PARTS DIAGRAM")
-4.2-part-diagram-400.webp "MASERATI QTP. (2006) 4.2 BRAKE BOOSTER SYSTEM PARTS DIAGRAM")
-4.2-part-diagram-410.webp "MASERATI QTP. (2006) 4.2 FRONT WHEELS BRAKING PARTS PARTS DIAGRAM")
-4.2-part-diagram-411.webp "MASERATI QTP. (2006) 4.2 REAR WHEELS BRAKING PARTS PARTS DIAGRAM")
-4.2-part-diagram-420a.webp "MASERATI QTP. (2006) 4.2 PIPING (PAGE 1-4) PARTS DIAGRAM")
-4.2-part-diagram-420b.webp "MASERATI QTP. (2006) 4.2 PIPING (PAGE 2-4) PARTS DIAGRAM")
-4.2-part-diagram-420c.webp "MASERATI QTP. (2006) 4.2 PIPING (PAGE 3-4) PARTS DIAGRAM")
-4.2-part-diagram-420d.webp "MASERATI QTP. (2006) 4.2 PIPING (PAGE 4-4) PARTS DIAGRAM")
-4.2-part-diagram-430.webp "MASERATI QTP. (2006) 4.2 HAND-BRAKE CONTROL PARTS DIAGRAM")
-4.2-part-diagram-490.webp "MASERATI QTP. (2006) 4.2 BRAKING CONTROL SYSTEMS PARTS DIAGRAM")
-4.2-part-diagram-500.webp "MASERATI QTP. (2006) 4.2 SHAFT AND STEERING WHEEL GROUP PARTS DIAGRAM")
-4.2-part-diagram-510.webp "MASERATI QTP. (2006) 4.2 STEERING BOX & SERVO-CONTROL PUMP PARTS DIAGRAM")
-4.2-part-diagram-520.webp "MASERATI QTP. (2006) 4.2 COMPLETE PEDAL SUPPORT PARTS DIAGRAM")
-4.2-part-diagram-600.webp "MASERATI QTP. (2006) 4.2 WHEEL RIM AND TYRE PARTS DIAGRAM")
-4.2-part-diagram-610.webp "MASERATI QTP. (2006) 4.2 FRONT SUSPENSION PARTS DIAGRAM")
-4.2-part-diagram-611.webp "MASERATI QTP. (2006) 4.2 FRONT SUSPENSION PARTS PARTS DIAGRAM")
-4.2-part-diagram-612.webp "MASERATI QTP. (2006) 4.2 FRONT UNDERFRAME PARTS DIAGRAM")
-4.2-part-diagram-620.webp "MASERATI QTP. (2006) 4.2 REAR SUSPENSIONS PARTS DIAGRAM")
-4.2-part-diagram-621.webp "MASERATI QTP. (2006) 4.2 REAR SUSPENSION PARTS PARTS DIAGRAM")
-4.2-part-diagram-622.webp "MASERATI QTP. (2006) 4.2 REAR UNDERFRAME PARTS DIAGRAM")
-4.2-part-diagram-690.webp "MASERATI QTP. (2006) 4.2 ELECTRONIC CONTROLS (SUSPENSIONS) PARTS DIAGRAM")
-4.2-part-diagram-700.webp "MASERATI QTP. (2006) 4.2 FRONT AIR-BAG SYSTEM PARTS DIAGRAM")
-4.2-part-diagram-701.webp "MASERATI QTP. (2006) 4.2 PASSENGER AIR-BAG BLOCKING SYSTEM PARTS DIAGRAM")
-4.2-part-diagram-702.webp "MASERATI QTP. (2006) 4.2 FRONT SIDE-BAG SYSTEM PARTS DIAGRAM")
-4.2-part-diagram-704.webp "MASERATI QTP. (2006) 4.2 WINDOW-BAG SYSTEM PARTS DIAGRAM")
-4.2-part-diagram-705.webp "MASERATI QTP. (2006) 4.2 CRASH SENSORS PARTS DIAGRAM")
-4.2-part-diagram-710.webp "MASERATI QTP. (2006) 4.2 FRONT SAFETY BELTS PARTS DIAGRAM")
-4.2-part-diagram-711.webp "MASERATI QTP. (2006) 4.2 REAR SAFETY BELTS PARTS DIAGRAM")
-4.2-part-diagram-720.webp "MASERATI QTP. (2006) 4.2 TYRES PRESSURE CONTROL SYSTEM -OPTIONAL- PARTS DIAGRAM")
-4.2-part-diagram-731.webp "MASERATI QTP. (2006) 4.2 TOOLS AND ACCESSORIES PARTS DIAGRAM")
-4.2-part-diagram-732.webp "MASERATI QTP. (2006) 4.2 TOOLS AND ACCESSORIES PARTS DIAGRAM")
-4.2-part-diagram-800.webp "MASERATI QTP. (2006) 4.2 CAR OUTER SERVICES PARTS DIAGRAM")
-4.2-part-diagram-810.webp "MASERATI QTP. (2006) 4.2 CAR INNER SERVICES PARTS DIAGRAM")
-4.2-part-diagram-820.webp "MASERATI QTP. (2006) 4.2 POWER PRODUCTION AND BATTERY PARTS DIAGRAM")
-4.2-part-diagram-830.webp "MASERATI QTP. (2006) 4.2 FRONT HEADLIGHTS PARTS DIAGRAM")
-4.2-part-diagram-831.webp "MASERATI QTP. (2006) 4.2 REAR LIGHTS PARTS DIAGRAM")
-4.2-part-diagram-832.webp "MASERATI QTP. (2006) 4.2 SIDE LIGHTS PARTS DIAGRAM")
-4.2-part-diagram-839.webp "MASERATI QTP. (2006) 4.2 HEADLIGHT SYSTEM CONTROL PARTS DIAGRAM")
-4.2-part-diagram-840a.webp "MASERATI QTP. (2006) 4.2 A.C. GROUP: ENGINE COMPARTMENT PARTS (PAGE 1-2) PARTS DIAGRAM")
-4.2-part-diagram-840b.webp "MASERATI QTP. (2006) 4.2 A.C. GROUP: ENGINE COMPARTMENT PARTS (PAGE 2-2) PARTS DIAGRAM")
-4.2-part-diagram-841.webp "MASERATI QTP. (2006) 4.2 A.C. GROUP: DASHBOARD PARTS PARTS DIAGRAM")
-4.2-part-diagram-842.webp "MASERATI QTP. (2006) 4.2 A.C. GROUP: DIFFUSION PARTS DIAGRAM")
-4.2-part-diagram-849.webp "MASERATI QTP. (2006) 4.2 A.C. GROUP: ELECTRONIC CONTROL PARTS DIAGRAM")
-4.2-part-diagram-850.webp "MASERATI QTP. (2006) 4.2 DASHBOARD SERVICES PARTS DIAGRAM")
-4.2-part-diagram-851.webp "MASERATI QTP. (2006) 4.2 TUNNEL SERVICES PARTS DIAGRAM")
-4.2-part-diagram-852.webp "MASERATI QTP. (2006) 4.2 DOORS SERVICES PARTS DIAGRAM")
-4.2-part-diagram-853a.webp "MASERATI QTP. (2006) 4.2 ALARM SYSTEM AND IMMOBILIZER (PAGE 1-2) PARTS DIAGRAM")
-4.2-part-diagram-853b.webp "MASERATI QTP. (2006) 4.2 ALARM SYSTEM AND IMMOBILIZER (PAGE 2-2) PARTS DIAGRAM")
-4.2-part-diagram-860a.webp "MASERATI QTP. (2006) 4.2 MAIN CABLES (PAGE 1-2) PARTS DIAGRAM")
-4.2-part-diagram-860b.webp "MASERATI QTP. (2006) 4.2 MAIN CABLES (PAGE 2-2) PARTS DIAGRAM")
-4.2-part-diagram-861.webp "MASERATI QTP. (2006) 4.2 RELAYS, FUSES AND CASES PARTS DIAGRAM")
-4.2-part-diagram-870.webp "MASERATI QTP. (2006) 4.2 SOUND PROOF SYSTEM PARTS DIAGRAM")
-4.2-part-diagram-871a.webp "MASERATI QTP. (2006) 4.2 INFO-TELEMATIC SYSTEM (PAGE 1-3) PARTS DIAGRAM")
-4.2-part-diagram-871b.webp "MASERATI QTP. (2006) 4.2 INFO-TELEMATIC SYSTEM (PAGE 2-3) PARTS DIAGRAM")
-4.2-part-diagram-871c.webp "MASERATI QTP. (2006) 4.2 INFO-TELEMATIC SYSTEM (PAGE 3-3) PARTS DIAGRAM")
-4.2-part-diagram-872.webp "MASERATI QTP. (2006) 4.2 SYSTEM FOR RECEPTION AND CONNECTION PARTS DIAGRAM")
-4.2-part-diagram-900.webp "MASERATI QTP. (2006) 4.2 FRONT OUTER STRUCTURES AND BODY PARTS DIAGRAM")
-4.2-part-diagram-901.webp "MASERATI QTP. (2006) 4.2 CENTRAL OUTER STRUCTURES AND BODY PARTS DIAGRAM")
-4.2-part-diagram-902.webp "MASERATI QTP. (2006) 4.2 REAR OUTER STRUCTURES AND BODY PARTS DIAGRAM")
-4.2-part-diagram-903.webp "MASERATI QTP. (2006) 4.2 FRONT STRUCTURAL PARTS PARTS DIAGRAM")
-4.2-part-diagram-904.webp "MASERATI QTP. (2006) 4.2 CENTRAL STRUCTURAL PARTS PARTS DIAGRAM")
-4.2-part-diagram-905.webp "MASERATI QTP. (2006) 4.2 REAR STRUCTURAL PARTS PARTS DIAGRAM")
-4.2-part-diagram-910.webp "MASERATI QTP. (2006) 4.2 FRONT BUMPER PARTS DIAGRAM")
-4.2-part-diagram-911.webp "MASERATI QTP. (2006) 4.2 REAR BUMPER PARTS DIAGRAM")
-4.2-part-diagram-912.webp "MASERATI QTP. (2006) 4.2 PARKING SENSORS -OPTIONAL- PARTS DIAGRAM")
-4.2-part-diagram-913.webp "MASERATI QTP. (2006) 4.2 WHEELHOUSE AND DOORS PARTS DIAGRAM")
-4.2-part-diagram-914.webp "MASERATI QTP. (2006) 4.2 FLAT FLOOR AND UNDERBODY SHIELDS PARTS DIAGRAM")
-4.2-part-diagram-915.webp "MASERATI QTP. (2006) 4.2 SHIELDS, MOULDINGS AND COVERS PARTS DIAGRAM")
-4.2-part-diagram-916.webp "MASERATI QTP. (2006) 4.2 MARKS AND SYMBOLS PARTS DIAGRAM")
-4.2-part-diagram-917.webp "MASERATI QTP. (2006) 4.2 ADHESIVES AND PLATES PARTS DIAGRAM")
-4.2-part-diagram-920.webp "MASERATI QTP. (2006) 4.2 FRONT HOOD PARTS DIAGRAM")
-4.2-part-diagram-921.webp "MASERATI QTP. (2006) 4.2 REAR HOOD PARTS DIAGRAM")
-4.2-part-diagram-922.webp "MASERATI QTP. (2006) 4.2 FUEL DOOR AND CONTROLS PARTS DIAGRAM")
-4.2-part-diagram-923.webp "MASERATI QTP. (2006) 4.2 FRONT HOOD OPENING DEVICE PARTS DIAGRAM")
-4.2-part-diagram-924.webp "MASERATI QTP. (2006) 4.2 REAR HOOD OPENING DEVICE PARTS DIAGRAM")
-4.2-part-diagram-930.webp "MASERATI QTP. (2006) 4.2 FRONT DOORS: UPHOLSTERY PARTS DIAGRAM")
-4.2-part-diagram-931.webp "MASERATI QTP. (2006) 4.2 FRONT DOORS: MOVEMENT DEVICES PARTS DIAGRAM")
-4.2-part-diagram-932.webp "MASERATI QTP. (2006) 4.2 REAR DOORS: PANELS PARTS DIAGRAM")
-4.2-part-diagram-933.webp "MASERATI QTP. (2006) 4.2 REAR DOORS: MOVEMENT DEVICES PARTS DIAGRAM")
-4.2-part-diagram-934.webp "MASERATI QTP. (2006) 4.2 GLASSES AND GASKETS PARTS DIAGRAM")
-4.2-part-diagram-935.webp "MASERATI QTP. (2006) 4.2 INNER AND OUTER REARVIEW MIRROR PARTS DIAGRAM")
-4.2-part-diagram-940.webp "MASERATI QTP. (2006) 4.2 FRONT SEATS: TRIM PANELS PARTS DIAGRAM")
-4.2-part-diagram-941.webp "MASERATI QTP. (2006) 4.2 FRONT SEATS: MECHANICS & ELECTRONICS PARTS DIAGRAM")
-4.2-part-diagram-942.webp "MASERATI QTP. (2006) 4.2 REAR SEATS: LININGS PARTS DIAGRAM")
-4.2-part-diagram-943.webp "MASERATI QTP. (2006) 4.2 REAR SEATS: MECHANICAL AND ELECTRONIC UNITS PARTS DIAGRAM")
-4.2-part-diagram-944.webp "MASERATI QTP. (2006) 4.2 SIDE FLANK AND PASSENGERS COMPARTMENT PILLAR UPHOLSTERY PARTS DIAGRAM")
-4.2-part-diagram-945.webp "MASERATI QTP. (2006) 4.2 ROOF AND SUN VISORS PARTS DIAGRAM")
-4.2-part-diagram-946.webp "MASERATI QTP. (2006) 4.2 UNDER REAR WINDOW MOULDING PARTS DIAGRAM")
-4.2-part-diagram-950.webp "MASERATI QTP. (2006) 4.2 DASHBOARD ASSEMBLY PARTS DIAGRAM")
-4.2-part-diagram-951.webp "MASERATI QTP. (2006) 4.2 TUNNEL AND ACCESSORIES COMPARTMENT PARTS DIAGRAM")
-4.2-part-diagram-952.webp "MASERATI QTP. (2006) 4.2 DASHBOARD DRAWERS PARTS DIAGRAM")
-4.2-part-diagram-960.webp "MASERATI QTP. (2006) 4.2 PASSENGERS COMPARTMENT CARPETS PARTS DIAGRAM")
-4.2-part-diagram-961.webp "MASERATI QTP. (2006) 4.2 TRUNK HOOD CARPETS PARTS DIAGRAM")
-4.2-part-diagram-962.webp "MASERATI QTP. (2006) 4.2 SOUND INSULATION IN CAR PARTS DIAGRAM")
-4.2-part-diagram-963.webp "MASERATI QTP. (2006) 4.2 THERMAL INSULATIONS IN CAR PARTS DIAGRAM")
-4.2-part-diagram-971.webp "MASERATI QTP. (2006) 4.2 REMOVABLE ROOF PARTS DIAGRAM")
-4.2-part-diagram-000.webp "MASERATI QTP. (2006) 4.2 SPARE ASSEMBLY UNITS PARTS DIAGRAM")
-4.2-part-diagram-100.webp "MASERATI QTP. (2006) 4.2 CRANKCASE PARTS DIAGRAM")
