Maserati QTP. (2006) 4.2 Fuel Pumps And Piping - Valid Till Car 24274 Parts Diagram

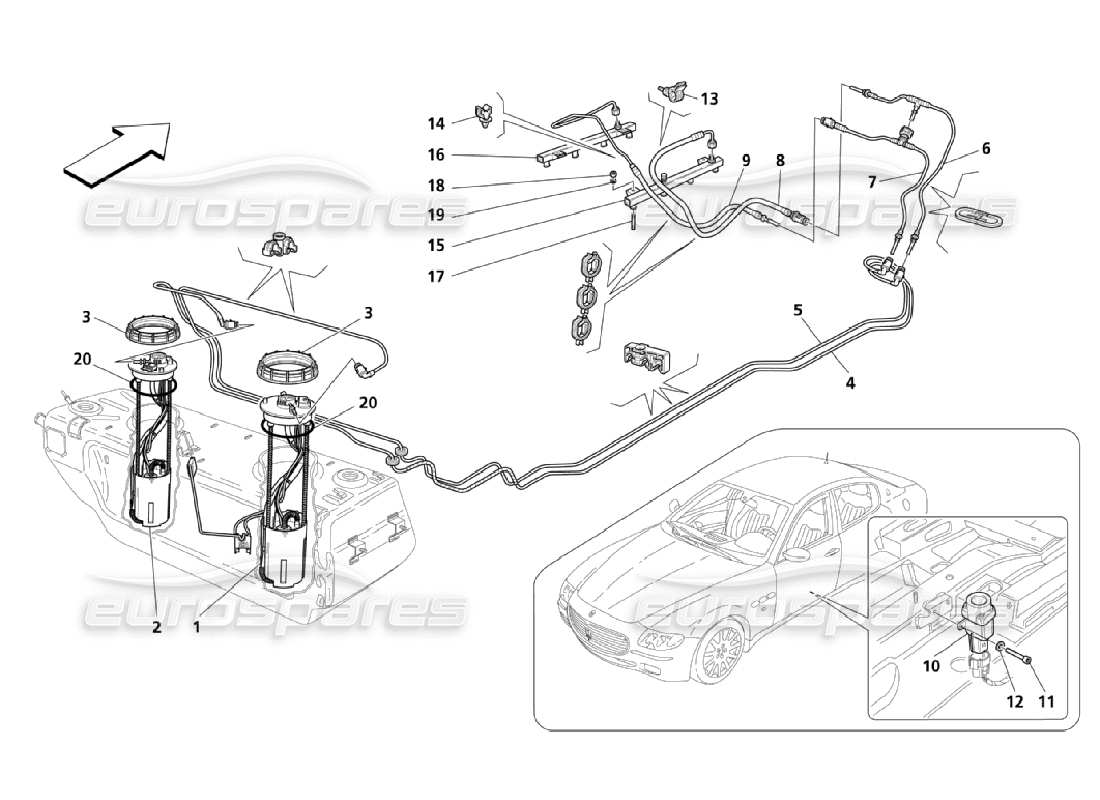

143a - Fuel Pumps And Piping - Valid Till Car 24274

Maserati QTP. (2006) 4.2 Fuel Pumps And Piping - Valid Till Car 24274 Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 187572
RH FUEL PUMP
Valid till car Ass. Nr. 24274
from £889.80
from £889.80
# 002
MPN: 187571
LH FUEL PUMP
Valid till car Ass. Nr. 24274
from £889.80
from £889.80
# 003
MPN: 181682
RING NUT
Valid till car Ass. Nr. 24274
from £7.68
from £7.68
# 004
MPN: 194862
RH FUEL PIPE FROM PUMP
Valid till car Ass. Nr. 24274
from £70.02
from £70.02
# 005
MPN: 197884
LH FUEL PIPE FROM PUMP
Valid till car Ass. Nr. 24274
from £53.67
from £53.67
# 006
MPN: 194864
RH FUEL PIPE FROM CONNECTION TO ENGINE
Valid till car Ass. Nr. 24274
from £20.42
from £20.42
# 007
MPN: 194863
LH FUEL PIPE FROM CONNECTION TO ENGINE
Valid till car Ass. Nr. 24274
from £21.66
from £21.66
# 008
MPN: 209820
RH FUEL DELIVERY TUBE
Valid till car Ass. Nr. 24274
from £46.67
from £46.67
# 009
MPN: 209821
LH FUEL DELIVERY TUBE
Valid till car Ass. Nr. 24274
from £32.57
from £32.57
# 010
MPN: 163675
INERTIAL SWITCH
Valid till car Ass. Nr. 24274
from £13.11
from £13.11
# 011
MPN: 13026121
SCREW
Valid till car Ass. Nr. 24274
from £0.47
from £0.47
# 012
MPN: 11199274
WASHER
Valid till car Ass. Nr. 24274
from £0.54
from £0.54
# 013
MPN: 206536
CLIP
Valid till car Ass. Nr. 24274
from £0.54
from £0.54
# 014
MPN: 198271
CLIP
Valid till car Ass. Nr. 24274 - (Quantity 1 for cars GD)
from £0.50
from £0.50
# 015
MPN: 212697

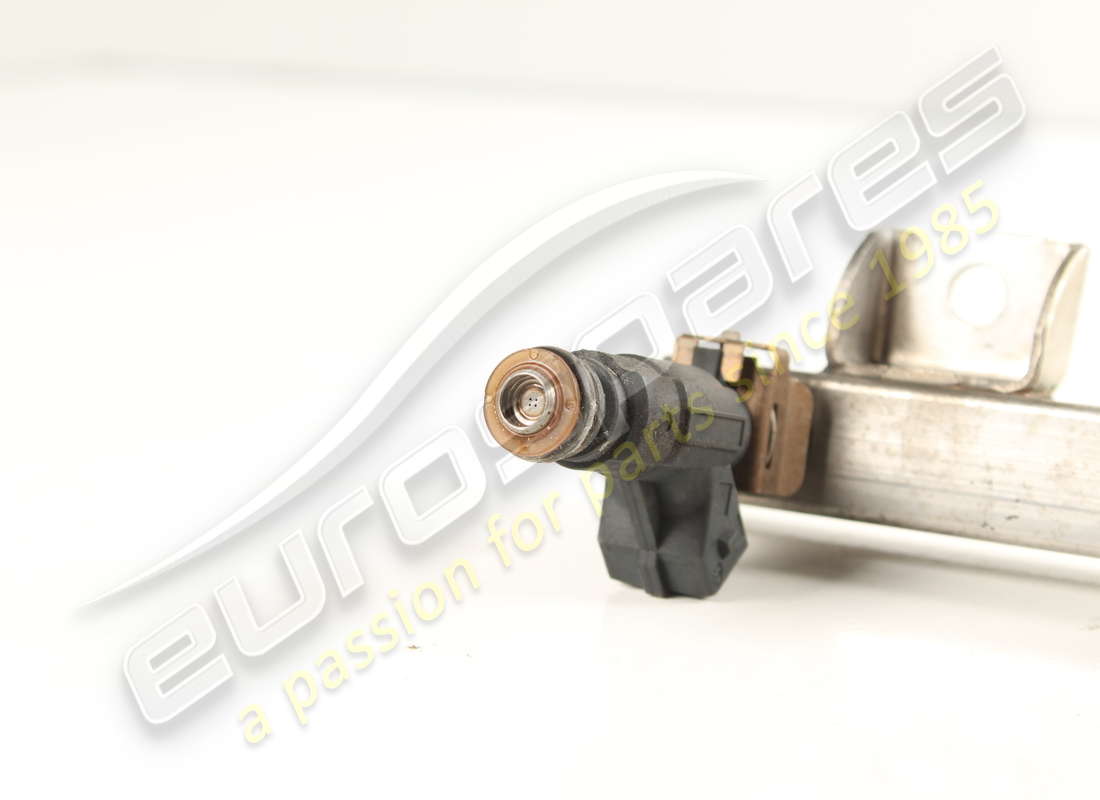

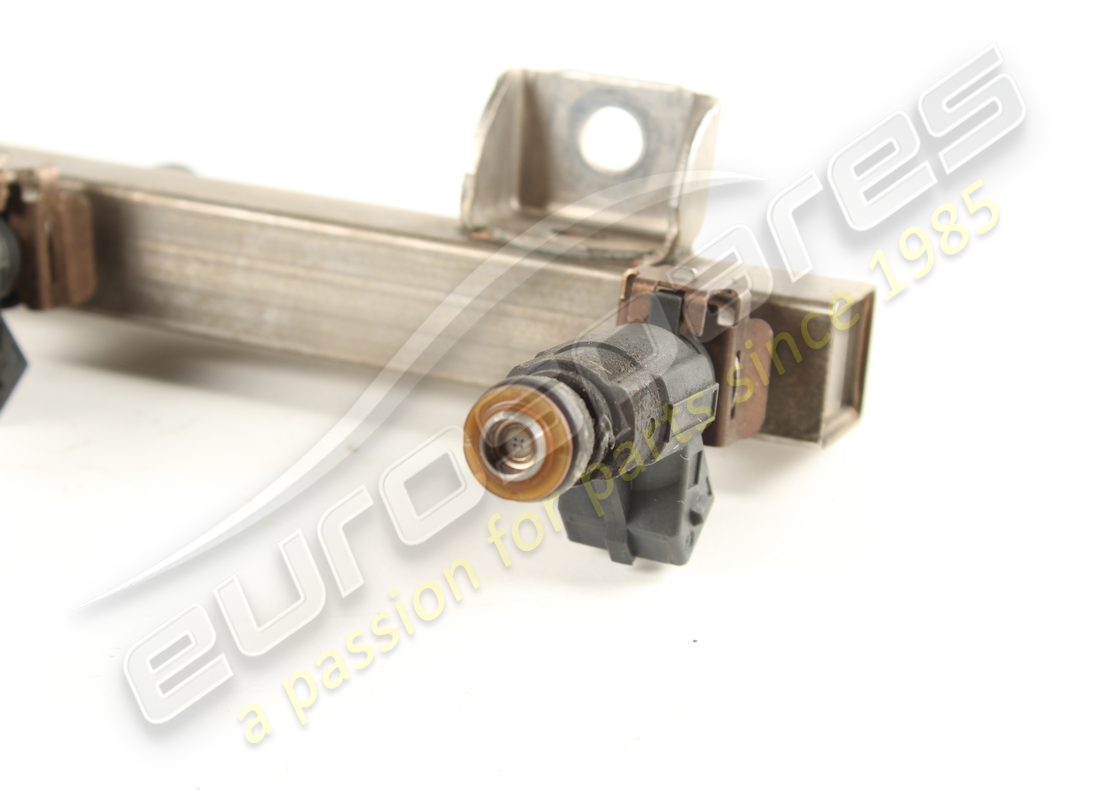

COMPLETE RH INJECTORS PIPE
Valid till car Ass. Nr. 24274 - Complete of electroinjectors - Valid for AUS and J - Valid for cars GD opt. japan version
from £304.84
from £304.84
This part replaces part number 197845 - and 1 more. Click to view details
# 015
MPN: 215338
COMPLETE RH INJECTORS PIPE
Valid till car Ass. Nr. 24274 - Complete of electroinjectors - Not for AUS and J - Not for cars GD opt. japan version
from £882.01
from £882.01
# 016
MPN: 212696
COMPLETE LH INJECTORS PIPE
Valid till car Ass. Nr. 24274 - Complete of electroinjectors - Valid for AUS and J - Valid for cars GD opt. japan version
from £320.36
from £320.36
This part replaces part number 197846 - and 1 more. Click to view details
# 016
MPN: 215337
COMPLETE LH INJECTORS PIPE
Valid till car Ass. Nr. 24274 - Complete of electroinjectors - Not for AUS and J - Not for cars GD opt. japan version
from £444.31
from £444.31
# 017
MPN: 13516824
STUD
Valid till car Ass. Nr. 24274
from £0.47
from £0.47
# 018
MPN: 16102314
NUT
Valid till car Ass. Nr. 24274
from £0.47
from £0.47
# 019
MPN: 11198074
WASHER
Valid till car Ass. Nr. 24274
from £0.47
from £0.47
# 020
MPN: 181681
GASKET
Valid till car Ass. Nr. 24274
from £11.53
from £11.53
