maserati qtp. (2006) 4.2 fuel pumps and piping - valid from car 24275 parts diagram

143b - Fuel Pumps And Piping - Valid From Car 24275

Maserati QTP. (2006) 4.2 Fuel Pumps And Piping - Valid From Car 24275 Parts Diagram

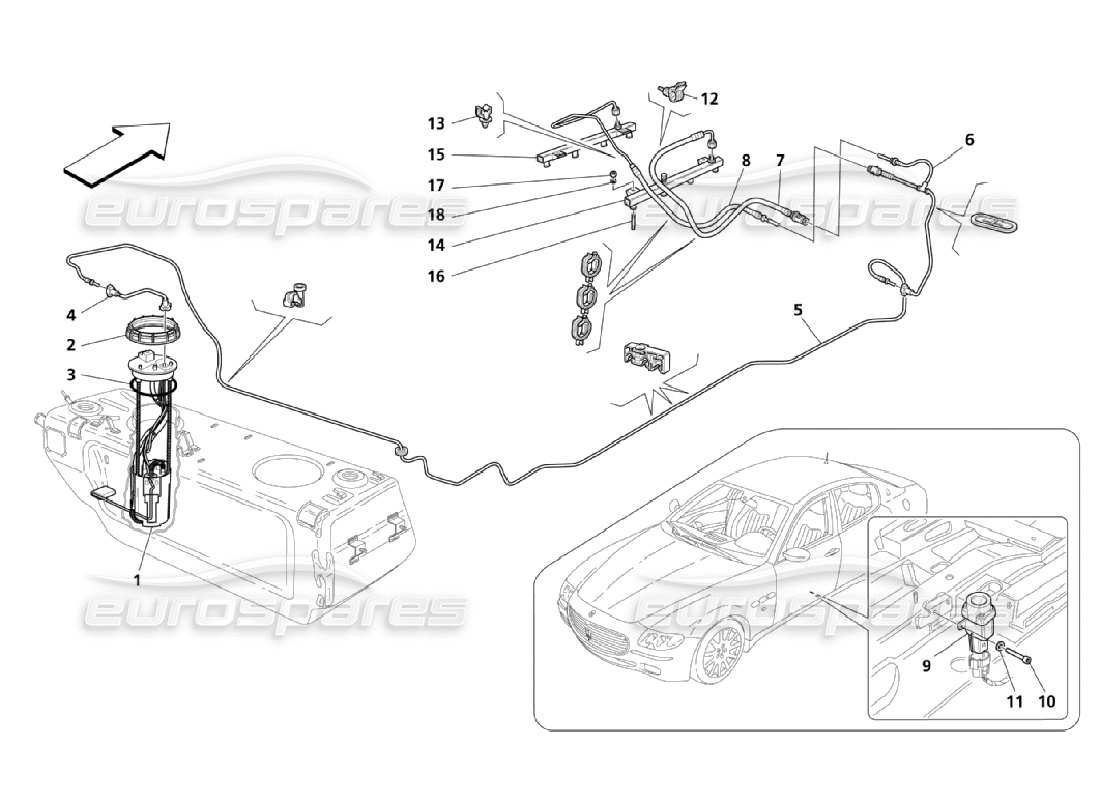

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 214369
fuel pump
Valid from car Ass. Nr. 24275
from £305.74
from £305.74
# 002
MPN: 181682
RING NUT
Valid from car Ass. Nr. 24275
from £7.78
from £7.78
# 003
MPN: 181681
GASKET
Valid from car Ass. Nr. 24275
from £11.67
from £11.67
# 004
MPN: 219391
FUEL DELIVERY TUBE
Valid from car Ass. Nr. 24275
from £11.97
from £11.97
# 005
MPN: 218483
FUEL PIPE FROM PUMP TO CONNECTION
Valid from car Ass. Nr. 24275
from £74.76
from £74.76
# 006
MPN: 225024
FUEL PIPE FROM CONNECTION TO ENGINE
Valid from car Ass. Nr. 24275
from £42.98
from £42.98
# 007
MPN: 209820
RH FUEL DELIVERY TUBE
Valid from car Ass. Nr. 24275
from £45.09
from £45.09
# 008
MPN: 209821
LH FUEL DELIVERY TUBE
Valid from car Ass. Nr. 24275
from £31.47
from £31.47
# 009
MPN: 163675
INERTIAL SWITCH
Valid from car Ass. Nr. 24275
from £8.54
from £8.54
# 010
MPN: 13026121
SCREW
Valid from car Ass. Nr. 24275
from £0.53
from £0.53
# 011
MPN: 11199274
WASHER
Valid from car Ass. Nr. 24275
from £0.54
from £0.54
# 012
MPN: 206536
CLIP
Valid from car Ass. Nr. 24275
from £0.54
from £0.54
# 013
MPN: 198271
CLIP
Valid from car Ass. Nr. 24275 - (Quantity 1 for cars GD)
from £0.50
from £0.50
# 014
MPN: 215338
COMPLETE RH INJECTORS PIPE
Valid from car Ass. Nr. 24275 - Complete of electroinjectors
from £852.17
from £852.17
# 015
MPN: 215337
COMPLETE LH INJECTORS PIPE
Valid from car Ass. Nr. 24275 - Complete of electroinjectors
from £429.28
from £429.28
# 016
MPN: 13516824
STUD
Valid from car Ass. Nr. 24275
from £0.48
from £0.48
# 017
MPN: 16102314
NUT
Valid from car Ass. Nr. 24275
from £0.47
from £0.47
# 018
MPN: 11198074
WASHER
Valid from car Ass. Nr. 24275
from £0.53
from £0.53
