160 - Lubrication: Piping And Recover

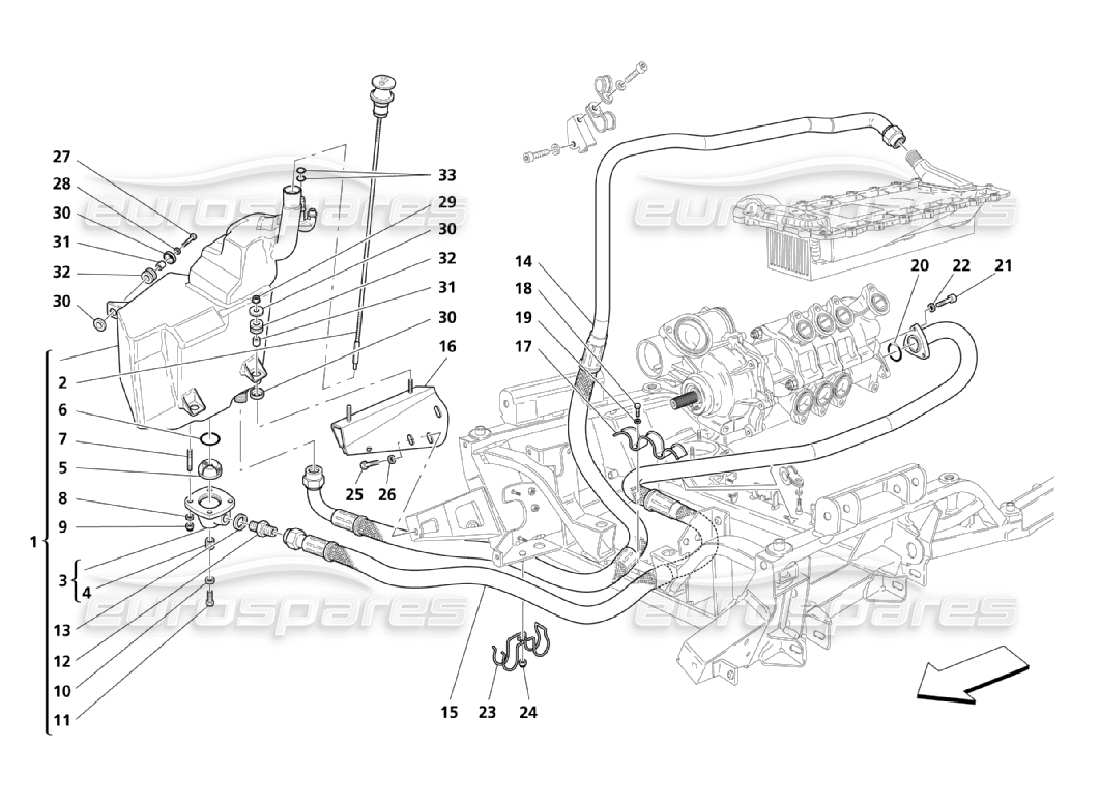

Maserati QTP. (2006) 4.2 Lubrication: Piping And Recover Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 204295
COMPLETE OIL TANK
Valid for USA and CDN
from £713.95
from £713.95
# 001
MPN: 205033
COMPLETE OIL TANK
Not for USA and CDN
from £740.18
from £740.18
This part replaces part number 189230
# 002
MPN: 205036
COMPLETE OIL LEVEL ROD
from £52.61
from £52.61
# 003
MPN: 151684
OIL SUCTION FAN
from £104.58
from £104.58
# 004
MPN: 111352
THREADED INSERT
from £68.65
from £68.65
# 005
MPN: 100332
OIL SUCTION FILTER
from £9.31
from £9.31
# 006
MPN: 125521
O.R. GASKET
from £5.65
from £5.65
# 007
MPN: 11500424
STUD
from £0.47
from £0.47
# 008
MPN: 12601274
WASHER
from £0.47
from £0.47
This part replaces part number 12601270
# 009
MPN: 102948
NUT
from £0.47
from £0.47
# 010
MPN: 675000691
GASKET
from £1.11
from £1.11
This part replaces part number 10257060 which we have in stock
# 011
MPN: 10300771
THREADED PLUG
from £0.50
from £0.50
# 012
MPN: 186746
THREADED UNION
from £43.16
from £43.16
# 013
MPN: 144485
GASKET
from £12.60
from £12.60
# 014
MPN: 198470
PIPE FROM HEAT EXCHANGER TO OIL TANK
Valid till engine Nr. 108699
from £443.63
from £443.63
# 014
MPN: 227559
PIPE FROM HEAT EXCHANGER TO OIL TANK
Valid from engine Nr. 108700
from £412.54
from £412.54
# 015
MPN: 211411
PIPE FROM TANK TO OIL PUMP
from £831.00
from £831.00
This part replaces part number 196233
# 016
MPN: 198191
SUPPORT
from £22.12
from £22.12
# 017
MPN: 198809
BRACKET
from £9.44
from £9.44
# 018
MPN: 10902024
SCREW
from £0.47
from £0.47
# 019
MPN: 12601274
WASHER
from £0.47
from £0.47
This part replaces part number 12601270
# 020
MPN: 109649
GASKET
from £0.70
from £0.70
# 021
MPN: 14303824
SCREW
M 6X60
from £1.16
from £1.16
# 021
MPN: 14305424
SCREW
M 6X25
from £0.47
from £0.47
# 022
MPN: 11197774
WASHER
from £0.54
from £0.54
# 023
MPN: 199610
BRACKET
from £10.31
from £10.31
# 024
MPN: 14058411
NUT
from £0.47
from £0.47
# 025
MPN: 16043224
SCREW
from £0.52
from £0.52
# 026
MPN: 12602474
WASHER
from £0.47
from £0.47
# 027
MPN: 16043824
SCREW
from £0.53
from £0.53
# 028
MPN: 12602474
WASHER
from £0.47
from £0.47
# 029
MPN: 14058511
NUT
from £0.47
from £0.47
# 030
MPN: 107979
CUP
from £1.11
from £1.11
# 031
MPN: 107980
SPACER
from £1.59
from £1.59
# 032
MPN: 184519
PAD
from £1.57
from £1.57
# 033
MPN: 204418
O.R. GASKET
Valid for USA and CDN - Included in the complete oil tank (Pos. 1)
from £9.91
from £9.91
