700 - Front Air-Bag System

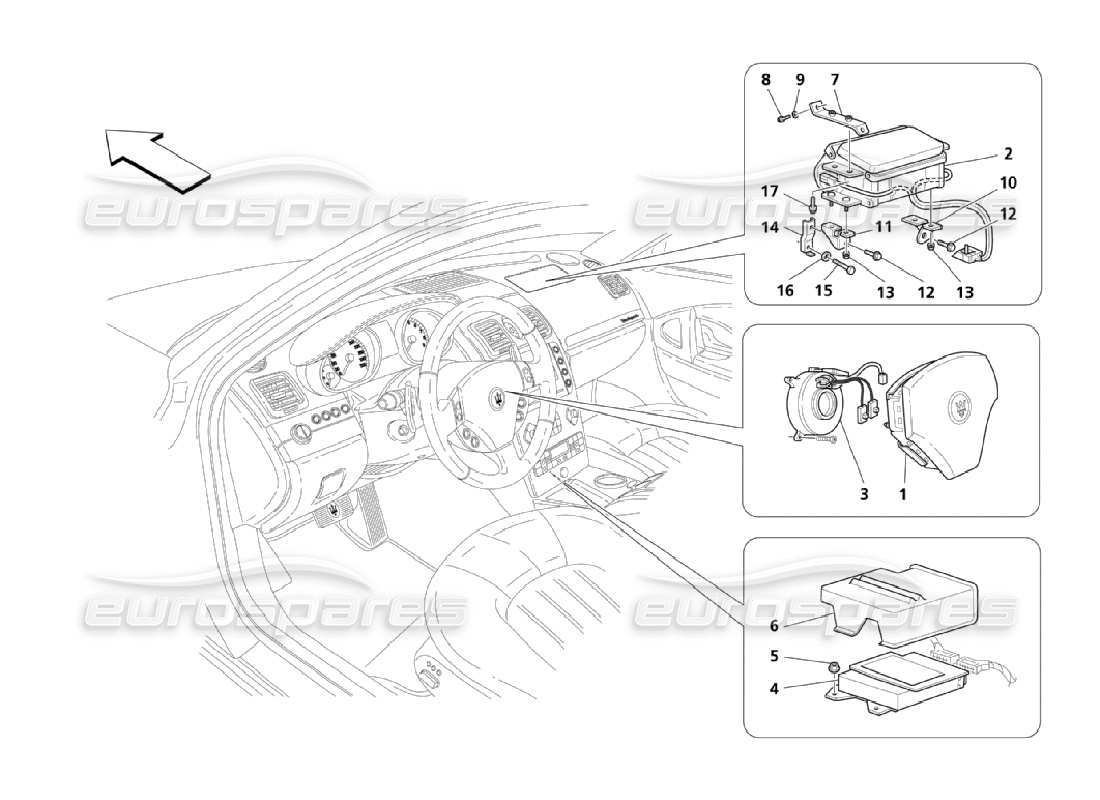

Maserati QTP. (2006) 4.2 Front Air-Bag System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 9813301..
DRIVER SIDE AIRBAG
Supersession
Supersession
# 002
MPN: 9813061..
PASSENGER SIDE AIRBAG
from £472.50
from £472.50
# 003
MPN: 259914
SPIRAL CONTACT
Included in the Complete unhook deviation (Draw 8.50 Pos. 15)
from £148.75
from £148.75
This part replaces part number 187750
# 004
MPN: 213337
AIRBAG CONTROL UNIT
Not for USA, CDN, AUS and J - Not for cars GD opt. japan version
Supersession
Supersession
This part replaces part number 209743
# 004
MPN: 214753
AIRBAG CONTROL UNIT
Valid for USA and CDN
from £512.57
from £512.57
This part replaces part number 208502
# 004
MPN: 276186
AIRBAG CONTROL UNIT
Valid for AUS and J - Valid for cars GD opt. japan version
from £284.15
from £284.15
This part replaces part number 213338
# 005
MPN: 14059214
NUT M6
from £0.47
from £0.47
This part replaces part number 12578121
# 006
MPN: 67572200
COVER
from £8.73
from £8.73
# 007
MPN: 66936000
RH BRACKET FOR FIXING PASSENGER SIDE AIRBAG
Not for GD - Included in the Complete dashboard body (Draw 9.50 Pos. 1)
from £6.86
from £6.86
# 007
MPN: 67721500
LH BRACKET FOR FIXING PASSENGER SIDE AIRBAG
Not for GD - Included in the Complete dashboard body (Draw 9.50 Pos. 1)
from £20.42
from £20.42
# 007
MPN: 67882600
RH BRACKET FOR FIXING PASSENGER SIDE AIRBAG
Valid for GD - Included in the Complete dashboard body (Draw 9.50 Pos. 1)
from £11.92
from £11.92
# 007
MPN: 67882700
LH BRACKET FOR FIXING PASSENGER SIDE AIRBAG
Valid for GD - Included in the Complete dashboard body (Draw 9.50 Pos. 1)
from £38.42
from £38.42
# 008
MPN: 13287724
SCREW
from £0.47
from £0.47
# 009
MPN: 14446921
WASHER
from £0.47
from £0.47
# 010
MPN: 69301800
RH BRACKET FOR SUPPORT PASSENGER SIDE AIRBAG
from £3.67
from £3.67
This part replaces part number 66557400
# 011
MPN: 69301900
LH BRACKET FOR SUPPORT PASSENGER SIDE AIRBAG
from £3.67
from £3.67
This part replaces part number 66557500
# 012
MPN: 16287024
SCREW
from £0.47
from £0.47
# 013
MPN: 14040611
NUT
from £0.53
from £0.53
# 014
MPN: 67573000
BRACKET
from £7.80
from £7.80
# 015
MPN: 16201224
SCREW
Supersession
Supersession
# 016
MPN: 12648424
WASHER
from £0.99
from £0.99
# 017
MPN: 18750021
SCREW
from £1.56
from £1.56
