720 - Tyres Pressure Control System -Optional-

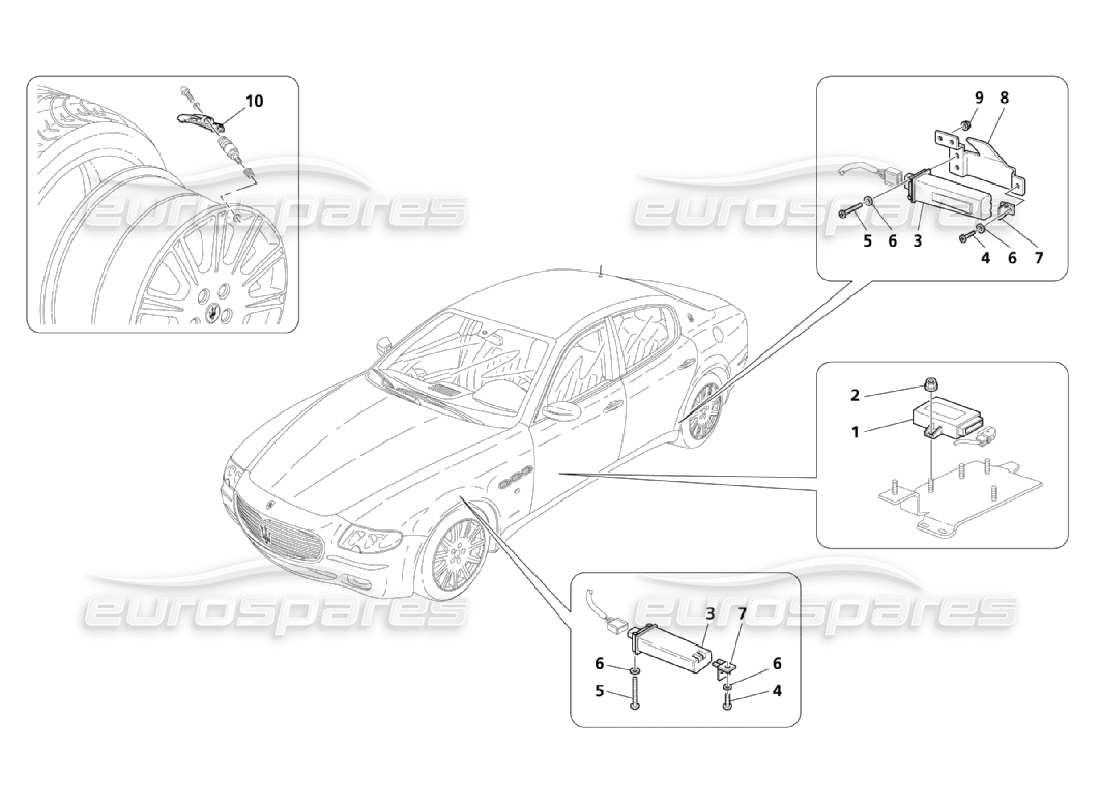

Maserati QTP. (2006) 4.2 Tyres Pressure Control System -Optional- Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 235303
TYRES PRESSURE CONTROL UNIT
(EXCHANGE ONLY)
from £363.19
from £363.19
This part replaces part number 221360
# 001
MPN: 235303
TYRES PRESSURE CONTROL UNIT
(EXCHANGE ONLY)
from £363.19
from £363.19
This part replaces part number 221360
# 002
MPN: 14059211
NUT
from £0.47
from £0.47
This part replaces part number 675000181
# 003
MPN: 191444
TYRES PRESSURE CONTROL ANTENNA 315 MHZ
Valid for J - Valid for cars GD opt. japan version - Valid till stock exhaustion
Supersession
Supersession
# 003
MPN: 224562
TYRES PRESSURE CONTROL ANTENNA 433 MHZ
Not for J - Not for cars GD opt. japan version - Valid till stock exhaustion
from £51.56
from £51.56
This part replaces part number 191443
# 003
MPN: 224562
TYRES PRESSURE CONTROL ANTENNA 433 MHZ
Not for J - Not for cars GD opt. japan version - Valid after stock exhaustion of 191443
from £51.56
from £51.56
This part replaces part number 191443
# 003
MPN: 224563
TYRES PRESSURE CONTROL ANTENNA 315 MHZ
Valid for J - Valid for cars GD opt. japan version - Valid after stock exhaustion of 191444
from £85.56
from £85.56
This part replaces part number 191444
# 004
MPN: 13272111
SCREW
M 4X14
from £0.71
from £0.71
# 005
MPN: 13272911
SCREW
M 4X35
from £1.32
from £1.32
# 006
MPN: 12642821
WASHER
from £0.47
from £0.47
# 007
MPN: 195646
CLIP
from £0.75
from £0.75
# 008
MPN: 67989400
RH REAR BRACKET
from £12.31
from £12.31
# 008
MPN: 67989500
LH REAR BRACKET
from £12.31
from £12.31
# 009
MPN: 14059211
NUT
from £0.47
from £0.47
This part replaces part number 675000181
# 010
MPN: 185189
TYRES PRESSURE CONTROL SENSOR
not as spare part - use part number: 224549
Supersession
Supersession
# 010
MPN: 312450
TYRE PRESSURE SENSOR 433 MHZ
from £87.17
from £87.17
This part replaces part number 224549 which we have in stock
# 010
MPN: 312451
TYRE PRESSURE SENSORS 315 MHZ
Valid for J - Valid for cars GD opt. japan version
from £89.81
from £89.81
This part replaces part number 224548
