048 - Rear Suspension

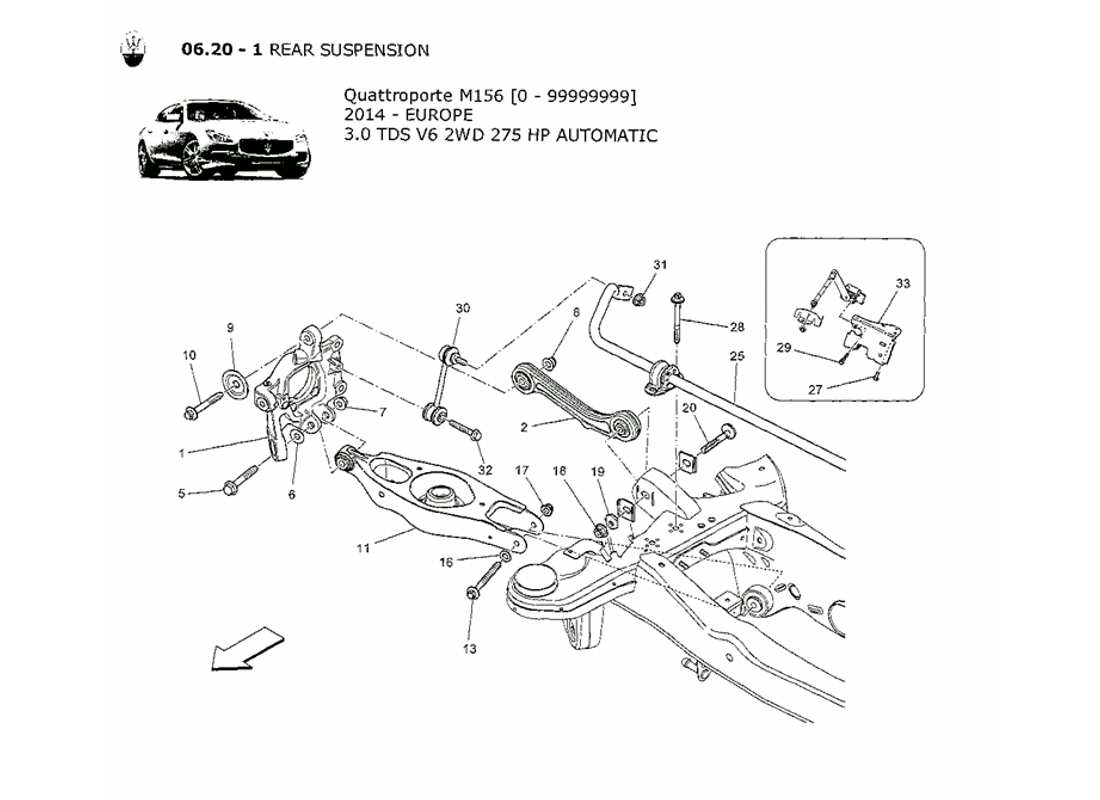

Maserati QTP. V6 3.0 TDS 275bhp 2014 REAR SUSPENSION Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 670002806
WASHER
from £4.06
from £4.06
# 001
MPN: 670006802
COMPLETE LH REAR HUB HOLDER
from £115.10
from £115.10
# 001
MPN: 670006803
COMPLETE RH REAR HUB HOLDER
from £115.10
from £115.10
# 002
MPN: 670007252
REAR CAMBER ROD
from £61.36
from £61.36
# 005
MPN: 675000147
SCREW M14X90
Supersession
Supersession
# 006
MPN: 675000115
WASHER D.14-32
from £2.30
from £2.30
# 007
MPN: 675000148
NUT M14
from £1.52
from £1.52
# 008
MPN: 675000023
NUT M12
from £0.86
from £0.86
# 009
MPN: 670002856
WASHER
from £2.35
from £2.35
# 010
MPN: 675000146
SCREW M12X80
from £3.41
from £3.41
# 011
MPN: 670036580
REAR WISHBONE
from £82.18
from £82.18
This part replaces part number 670030905 - and 2 more. Click to view details
# 013
MPN: 675000080
SCREW
Supersession
Supersession
# 016
MPN: 675000083
WASHER D.12-24
from £1.22
from £1.22
# 017
MPN: 675000023
NUT M12
from £0.86
from £0.86
# 018
MPN: 670002807
NUT M12
from £1.72
from £1.72
# 020
MPN: 670002805
SCREW M12X78
from £6.34
from £6.34
# 025
MPN: 670006598
REAR STABILIZER BAR
from £74.44
from £74.44
# 027
MPN: 675000431
SCREW M6X16
from £0.86
from £0.86
# 028
MPN: 675000140
SCREW M10X95
from £1.63
from £1.63
# 029
MPN: 675000197
SCREW M5X12
from £1.96
from £1.96
# 030
MPN: 670002744
BALL TIE ROD
from £18.78
from £18.78
# 031
MPN: 675000124
NUT M10
from £0.73
from £0.73
# 032
MPN: 675000056
SCREW M10X65
from £1.95
from £1.95
# 033
MPN: 670007621
BRACKET
from £10.56
from £10.56
