011 - turbocharging system: lubrication and cooling

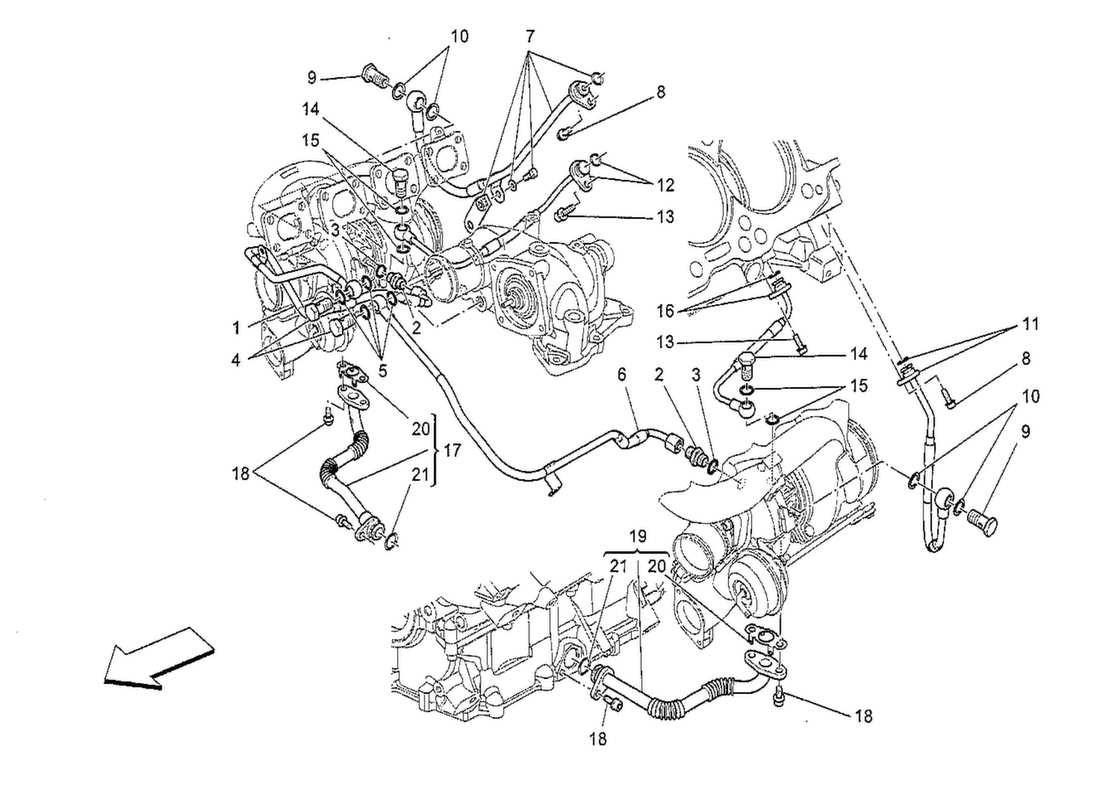

Maserati QTP. V8 3.8 530bhp 2014 TURBOCHARGING SYSTEM: LUBRICATION AND COOLING Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 293643
WATER RETURN PIPE FROM RH TURBINE
from £103.23
from £103.23
# 002
MPN: 278398
THREADED UNION
from £64.79
from £64.79
# 003
MPN: 11270260
GASKET
from £0.47
from £0.47
# 004
MPN: 10185011
UNION
from £22.37
from £22.37
# 005
MPN: 10261060
GASKET
from £0.47
from £0.47
This part replaces part number 274036
# 006
MPN: 290011
WATER RETURN -PIPE FROM LH TURBINE
from £111.51
from £111.51
# 007
MPN: 293741
WATER DELIVERY PIPE TO RH TURBINE
from £89.66
from £89.66
# 008
MPN: 231617
SCREW
from £0.53
from £0.53
# 009
MPN: 275034
UNION
from £31.27
from £31.27
# 010
MPN: 10280060
GASKET
from £0.51
from £0.51
# 011
MPN: 290014
Water
from £103.00
from £103.00
# 012
MPN: 292744
FLUID DELIVERY PIPE TO RH TURBINE
from £97.59
from £97.59
# 013
MPN: 231617
SCREW
from £0.53
from £0.53
# 014
MPN: 10185011
UNION
from £22.37
from £22.37
# 015
MPN: 10261060
GASKET
from £0.47
from £0.47
This part replaces part number 274036
# 016
MPN: 292745
FLUID DELIVERY PIPE TO LH TURBINE
from £99.30
from £99.30
# 017
MPN: 278380
FLUID RECOVERY PIPE FROM RH TURBINE
from £76.86
from £76.86
# 018
MPN: 248334
SCREW
from £0.47
from £0.47
# 019
MPN: 278390
FLUID RECOVERY PIPE FROM LH TURBINE
from £70.20
from £70.20
# 020
MPN: 271457
GASKET
from £2.38
from £2.38
# 021
MPN: 287722
O-RING
from £1.59
from £1.59
