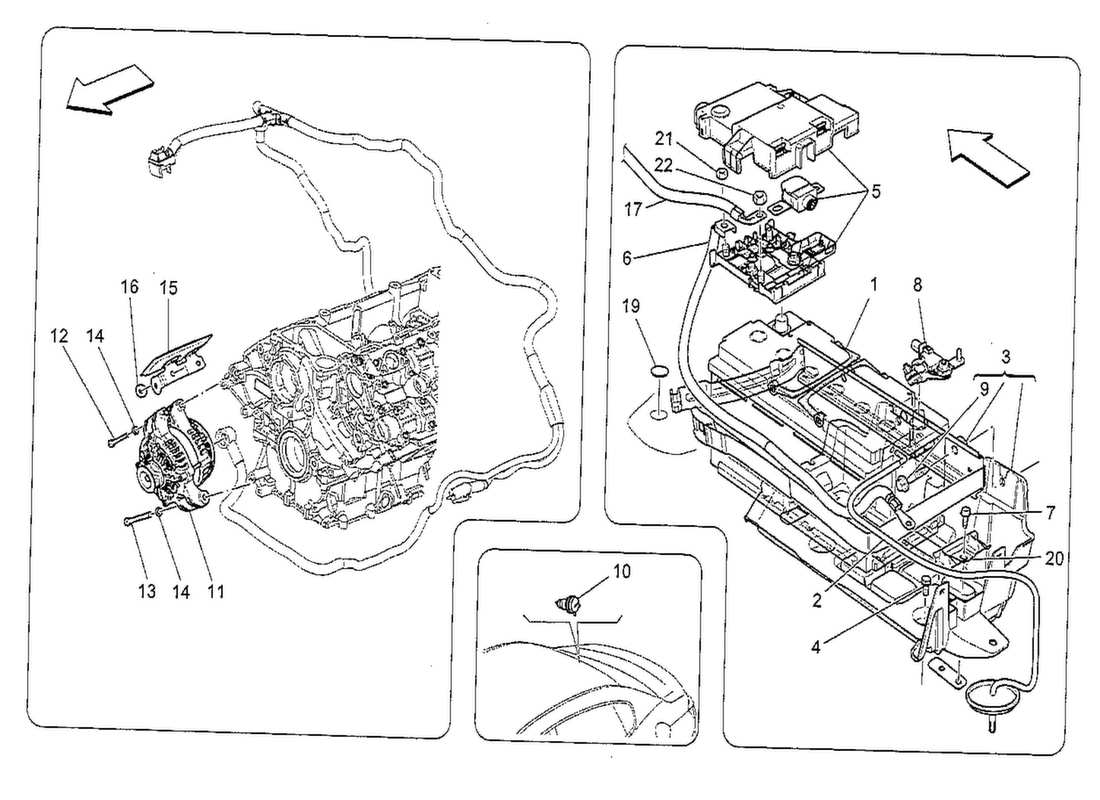

Maserati QTP. V8 3.8 530bhp 2014 ENERGY GENERATION AND ACCUMULATION Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 673001440
95AH-850A BATTERY FOR CARS UP TO ASSEMBLY 4002585, ORDER ALSO PARTS 675000244 AND 670008109
from £226.07
from £226.07
This part replaces part number 980145391
# 002
MPN: 670008109
BATTERY VENT PIPE
from £13.56
from £13.56
This part replaces part number 675000212
# 003
MPN: 675000297
BATTERY HOUSING ASSEMBLY
from £28.60
from £28.60
# 004
MPN: 675000174
SCREW M8
from £1.08
from £1.08
# 005
MPN: 670002029
BATTERY MULTI-FUNCTION ECU
from £71.54
from £71.54
# 006
MPN: 670006797
ECU REAR BATTEY POSITIVE POLE CABLE
from £23.23
from £23.23
# 007
MPN: 675000199
SCREW M6X18
from £2.02
from £2.02
# 008
MPN: 670005055
IBS SENSOR
from £42.96
from £42.96
# 009
MPN: 675000214
SCREW
from £19.42
from £19.42
# 010
-
POWER SOCKET
# 011
MPN: 283531
ALTERNATOR
from £259.75
from £259.75
# 012
MPN: 286690
STUD
from £20.84
from £20.84
# 013
MPN: 14359524
SCREW
from £0.47
from £0.47
# 014
MPN: 11193874
WASHER
from £0.54
from £0.54
# 015
MPN: 670002871
HEAT SHIELD
from £18.79
from £18.79
# 016
MPN: 675000093
NUT M6
from £0.91
from £0.91
# 017
MPN: 670007518
BATTERY POSITIVE POLE CABLE
Supersession
Supersession
# 019
MPN: 675000244
PLUG
from £0.66
from £0.66
# 020
MPN: 675000426
BRACKET
from £4.47
from £4.47
# 021
MPN: 675000439
NUT
from £3.63
from £3.63
# 022
MPN: 675000450
NUT
from £4.20
from £4.20
