121 - front seats: trim panels

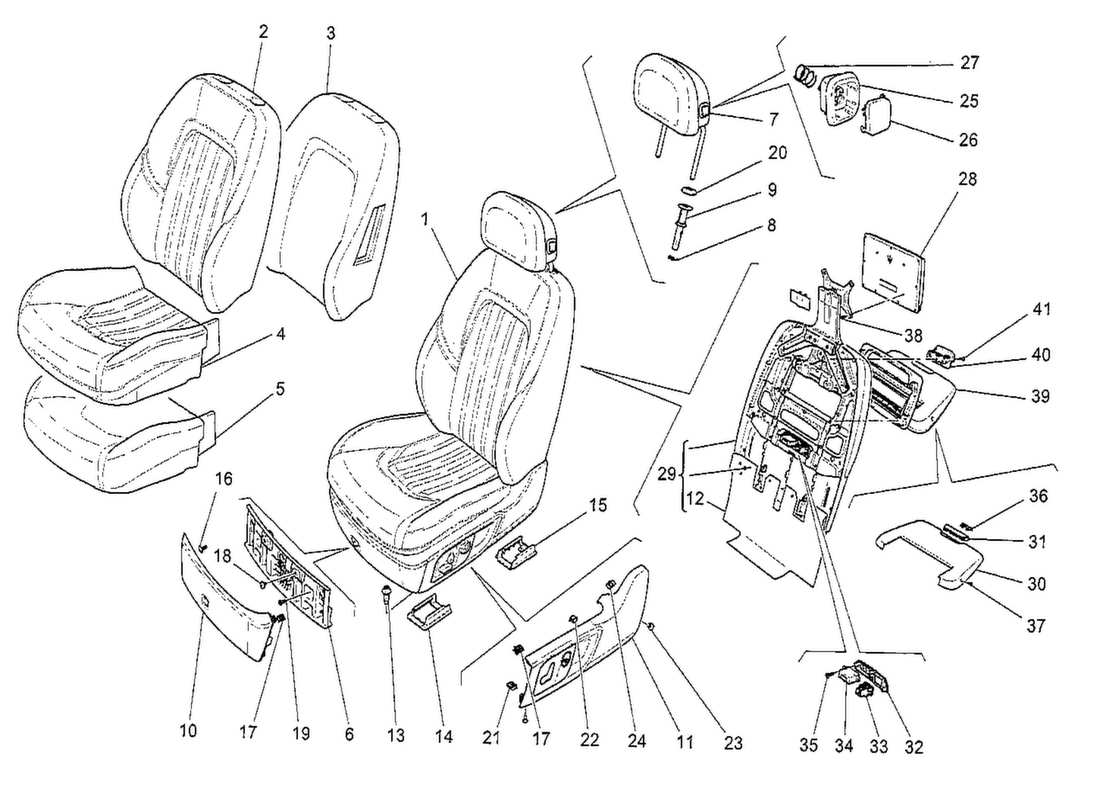

Maserati QTP. V8 3.8 530bhp 2014 FRONT SEATS: TRIM PANELS Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: custom
COMPLETE L. H. FRONT SEAT
# 001
MPN: custom
COMPLETE R. H . FRONT SEAT
# 002
MPN: custom
LH FRONT SEAT BACKREST COVER
# 002
MPN: custom
RH FRONT SEAT BACKREST COVER
# 003
MPN: custom
L. H . FRONT SEAT BACK PADDING
# 003
MPN: custom
RH FRONT SEAT BACK PADDING
# 004
MPN: custom
RH FRONT SEAT CUSHION COVER
# 004
MPN: custom
LH FRONT SEAT CUSHION COVER
# 005
MPN: custom
RH FRONT CUSHION PADDING
# 005
MPN: custom
LAHR . FRONT CUSHION PADDING
# 006
MPN: 670007532
FRONT GUARD PLASTIC COVER
from £10.57
from £10.57
# 007
MPN: custom
COMPLETE FRONT SEAT HEADREST
# 008
MPN: 670006134
SPRING
from £3.98
from £3.98
# 009
MPN: 670006148
HEADREST LH BUSHING
from £7.22
from £7.22
# 009
MPN: 670006149
HEADREST RH BUSHING
from £7.22
from £7.22
# 010
MPN: custom
LAHR . COVER
# 010
MPN: custom
R . H , COVER
# 011
MPN: custom
L. H . LATERAL COVER
# 011
MPN: custom
RH LATERAL COVER
# 012
MPN: custom
SUN SCREEN GREY
# 012
MPN: custom
SUN SCREEN GREY
# 013
MPN: 675000042
SCREW
from £1.51
from £1.51
# 014
MPN: custom
FRONT TRIM
# 015
MPN: custom
REAR TRIM
# 017
MPN: 673000290
Retaining Clip
from £1.11
from £1.11
# 019
MPN: 673000236
SCREW
from £1.35
from £1.35
# 020
MPN: custom
BUSHING CAP
# 021
MPN: 673000289
BRACKET
from £1.51
from £1.51
# 022
MPN: 673000288
CLIP
from £1.03
from £1.03
# 023
MPN: 6730003234
SCREW
# 024
MPN: 673000324
Retaining Clip
from £1.11
from £1.11
# 025
MPN: custom
HEADREST ADJUSTMENT BUTTON
# 026
MPN: custom
BUTTON TRIM
# 027
MPN: 670006135
SPRING
from £2.24
from £2.24
# 028
MPN: 670002144
RSE DISPLAY
from £1,452.33
from £1,452.33
# 029
MPN: custom
SUN SCREEN GREY
# 029
MPN: custom
SUN SCREEN GREY
# 030
MPN: 673002278
COPERTURA TAVOLINO
# 031
MPN: 673002279
PUSH BUTTON
# 032
MPN: custom
SUN SCREEN GREY
# 032
MPN: custom
SUN SCREEN GREY
# 033
MPN: 6730015
USB CONNECTOR
# 034
MPN: 673001510
AUDIO VIDEO CONNECTOR
Supersession
Supersession
# 035
MPN: 673001509
SCREW
# 036
MPN: 673002280
SEAL PLUG
# 037
MPN: 673001520
SCREW
from £1.35
from £1.35
# 038
MPN: 67300151
SCREW
# 039
MPN: custom
SUN SCREEN GREY
# 040
MPN: custom
SUN SCREEN GREY
# 041
MPN: 673001508
SCREW
from £1.59
from £1.59
