020 - additional air system

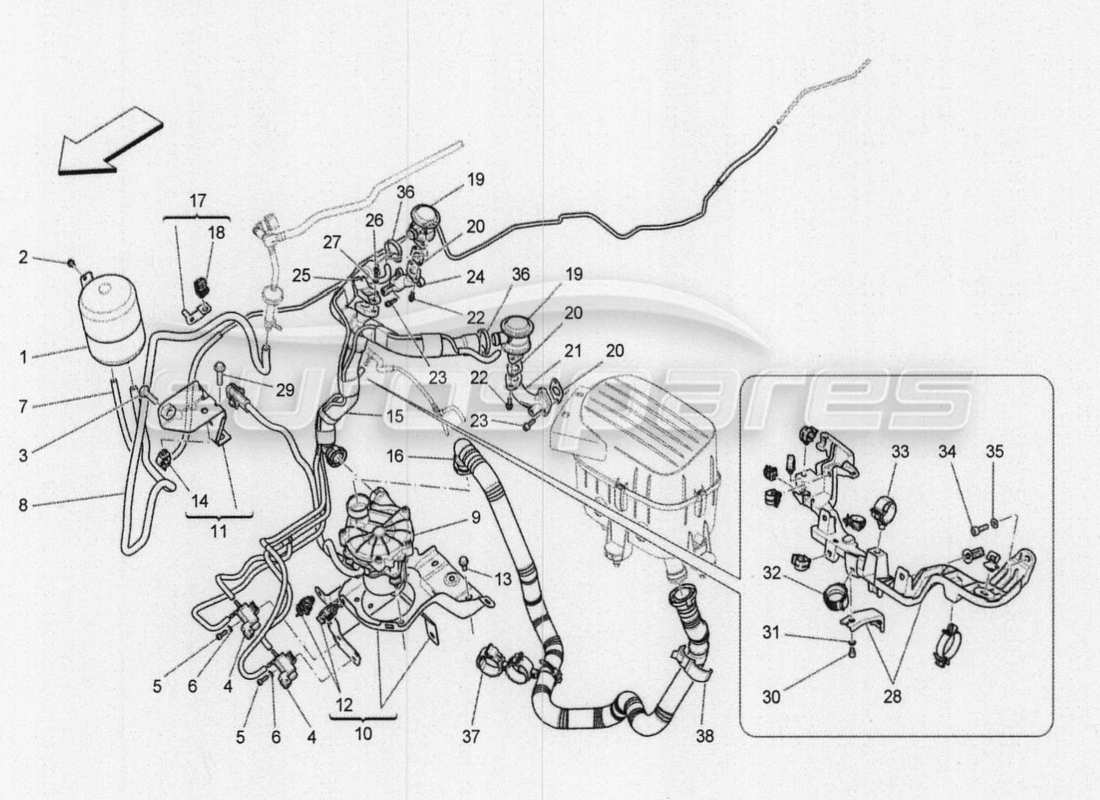

Maserati QTP. V8 3.8 530bhp 2014 Auto ADDITIONAL AIR SYSTEM Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 670003009
VACUUM TANK
Supersession
Supersession
# 002
MPN: 675000435
SCREW
from £4.70
from £4.70
# 003
MPN: 675000438
SCREW M8X22
from £0.95
from £0.95
# 004
MPN: 670002843
ON/OFF SOLENOID VALVE
from £28.73
from £28.73
# 005
MPN: 014304624
SCREW
# 006
MPN: 012601174
WASHER D.S.3-11X0.5
# 007
MPN: 670007423
UNDERBODY VACUUM PIPE - 1ST SECTION
from £58.45
from £58.45
# 008
MPN: 670005592
PIPE BETWEEN VACUUM TANK AND VACUUM PIPE
from £16.48
from £16.48
# 009
MPN: 670003500
Secondary Air Pump
from £288.56
from £288.56
# 010
MPN: 670003501
AIR PUMP FIXING BRACKET
from £35.99
from £35.99
# 011
MPN: 670003282
BRACKET
Supersession
Supersession
This part replaces part number 670003506
# 012
MPN: 675000076
CLIP
from £0.56
from £0.56
# 013
MPN: 016386024
SCREW
# 014
MPN: 675000076
CLIP
from £0.56
from £0.56
# 015
MPN: 670003008
AIR DELIVERY PIPE TO VALVES ASS.
from £130.93
from £130.93
# 016
MPN: 670003608
PIPE BETWEEN AIR PUMP AND AIRBOX
from £31.01
from £31.01
# 017
MPN: 670005593
BRACKET ASSEMBLY
from £2.39
from £2.39
# 018
MPN: 675000076
CLIP
from £0.56
from £0.56
# 019
MPN: 283441
SECONDARY AIR VALVE SUBJECT TO Maserati TECHNICAL SERVICE AUTHORISATION
from £101.88
from £101.88
# 020
MPN: 186781
GASKET SUBJECT TO Maserati TECHNICAL SERVICE AUTHORISATION
from £2.95
from £2.95
# 021
MPN: 292658
L.H SECONDARY AIR VALVE SUPPORT SUBJECTTOUASERATI TECHNICAL SERVICE AUTHORISATION
from £58.55
from £58.55
# 022
MPN: 231618
SCREW M6X20 SUBJECT TO Maserati TECHNICAL SERVICE AUTHORISATION
from £0.47
from £0.47
# 023
MPN: 231619
SCREW M6X22 SUBJECTTO Maserati TECHNICAL SERVICE AUTHORISATION
from £0.47
from £0.47
# 024
MPN: 292657
RH SECONDARY AIR VALVE SUPPORT SUBJECT TO Maserati TECHNICAL SERVICE AUTHORISATION
from £53.88
from £53.88
# 025
MPN: 670003207
PRESSURE TRANSMITTER
from £62.63
from £62.63
# 026
MPN: 014305224
SCREW M6X16
# 027
MPN: 011197774
WASHER ? .6.4-12X1.2
# 028
MPN: 670007033
SECONDARY AIR DUCT PRESSURE SENSOR SUPPORT
from £34.16
from £34.16
# 029
MPN: 675000438
SCREW M8X22
from £0.95
from £0.95
# 030
MPN: 675000191
SCREW M6X14
from £1.52
from £1.52
# 031
MPN: 011197774
WASHER D.6.4-12X1.2
# 032
MPN: 675000205
CLIP
from £9.31
from £9.31
# 033
MPN: 675000202
CLIP
from £9.31
from £9.31
# 034
MPN: 675000191
SCREW M6X14
from £1.52
from £1.52
# 035
MPN: 011197774
WASHER D.6.4-12X1.2
# 036
MPN: 675000352
COLLAR D.23
from £1.98
from £1.98
# 037
MPN: 670006740
Retaining Clip
from £2.39
from £2.39
