130 - front seats: mechanics and electronics

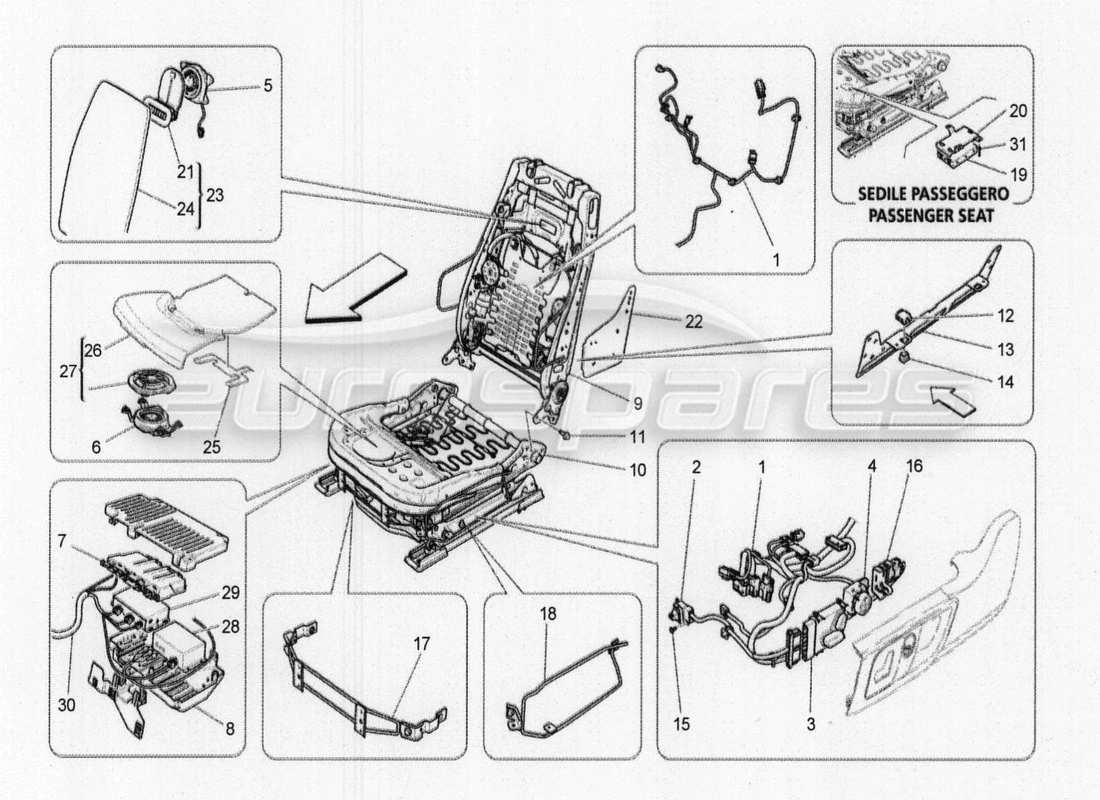

Maserati QTP. V8 3.8 530bhp 2014 Auto FRONT SEATS: MECHANICS AND ELECTRONICS Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
-
LH SEAT WIRING HARNESS
# 001
-
RH SEAT WIRING HARNESS
# 002
MPN: 673000294
PUSH-BUTTON SWITCH
from £30.37
from £30.37
# 003
MPN: 673000295
8-WAY SWITCH DRIVER SIDE
from £69.64
from £69.64
# 003
MPN: 673000296
8-WAY SWITCH PASSENGER SIDE
from £54.69
from £54.69
# 004
MPN: 673000293
LUMBAR SUPPORT ADJUSTMENT JOYSTICK
from £36.19
from £36.19
# 005
MPN: 673000320
FRONT SEAT BACK FAN
from £239.51
from £239.51
# 006
MPN: 673000321
SEAT FAN
from £198.34
from £198.34
This part replaces part number 670007883
# 007
MPN: 670035026
FRONT SEAT SETTING ECU
Supersession
Supersession
This part replaces part number 675000542
# 007
MPN: 675000542
FRONT SEAT SETTING ECU
Supersession
Supersession
This part replaces part number 675000473
# 008
MPN: 673000318
LH SUPPORT
from £12.70
from £12.70
# 008
MPN: 673000319
RH SUPPORT
from £12.70
from £12.70
# 009
MPN: 670007530
FRONT SEAT BACK FRAME DRIVER SIDE
from £468.53
from £468.53
# 009
MPN: 670007531
FRONT SEAT BACK FRAME PASSENGER SIDE
from £468.53
from £468.53
# 010
-
FRONT CUSHION FRAME DRIVER SIDE
# 010
-
FRONT CUSHION FRAME PASSENGER SIDE
# 011
MPN: 673000233
SCREW
from £3.41
from £3.41
# 012
MPN: 670006705
SEATBACK REAR PANEL LED LIGHT
from £27.63
from £27.63
# 012
MPN: 673000234
BRACKET
from £9.30
from £9.30
# 014
MPN: 670006649
Trim plate
from £4.06
from £4.06
# 015
MPN: 673000325
SCREW
from £1.42
from £1.42
# 016
MPN: 670006150
SUPPORT
from £3.45
from £3.45
# 017
MPN: 670007533
FRONT BRACKET
from £14.94
from £14.94
# 018
MPN: 673000291
LH SIDE CASING MOUNTING BRACKET
from £19.02
from £19.02
# 018
MPN: 673000292
RH SIDE CASING MOUNTING BRACKET
from £19.02
from £19.02
# 019
-
HEATER-FAN ECU
# 020
MPN: 673000299
CONTROL UNIT BRACKET
from £5.49
from £5.49
# 021
MPN: 670006706
AIR VENT
from £26.65
from £26.65
# 022
MPN: 670007271
RH PROTECTION COVER
from £5.55
from £5.55
# 022
MPN: 670007272
LH PROTECTION COVER
from £5.55
from £5.55
# 023
MPN: 670006056
CPL. FRONT SEAT BACK HEATER
from £159.20
from £159.20
# 024
MPN: 670006039
FRONT SEAT BACK HEATER
from £126.13
from £126.13
# 025
MPN: 670006155
SBR SENSOR PASSENGER SIDE
from £32.84
from £32.84
# 026
MPN: 670006055
CPL. FRONT SEAT CUSHION HEATER
from £109.36
from £109.36
# 027
MPN: 670006057
CPL FRONT SEAT CUSHION HEATER
from £148.15
from £148.15
# 028
-
SWITCH BOX CONTROL
# 029
-
MULTIMEDIA BOX ECU
# 030
-
LH MONITOR WIRING HARNESS
# 030
-
RH MONITOR WIRING HARNESS
# 031
MPN: 673000326
RIVET
from £1.17
from £1.17
